Question
A mass m is placed on a platform from a height 'h'. The platform is attached to a spring whose other end is fixed to the ground. Find the compression in the spring, if the spring constant is k.
✓
Answer
Drop in potential energy = Energy stored in spring
$\text{mg}(\text{h}+\text{x})=\frac{1}{2}\text{kx}^2$
2 mgh + 2 mgh = kx2
kx2 – 2 mgh – 2 mgh = 0
$\text{x}=\frac{2\text{mg}\pm\sqrt{4\text{m}^2\text{g}^2-4\text{k}.2\text{mgh}}}{2\text{k}}$
$\Rightarrow\text{x}=\frac{\text{mg}}{\text{k}}\pm\frac{\text{mg}}{\text{k}}\sqrt{1-\frac{2\text{kh}}{\text{mg}}}$.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A book rests on a table cloth spread over a table as shown in Fig. The centre of the book is at a distance of b from the edge of the table at time t = 0; the table cloth is suddenly pulled at this instant with an acceleration a. Show that the cloth will slip from under the book if a > µ g, where u is the coefficient of sliding friction between the table cloth and the book. Assuming this condition to be satisfied. calculate:
- Time instant.
- The velocity.
- The distance of the centre of the book from the edge of the table when the edge of the table cloth passes over the centre of the book.

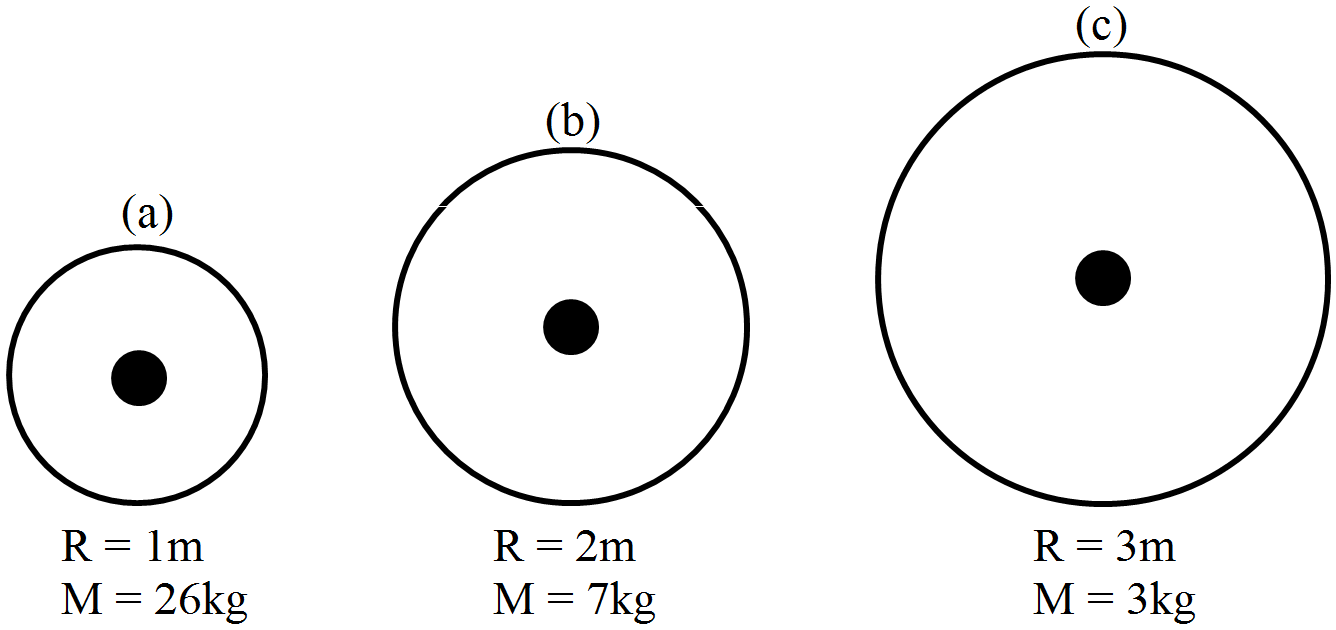

Figure shows three uniform discs, along with their radii R and masses M. Rank the discs according to their rotational inertia about their central axes, greatest first.
In a laboratory experiment (room temperature being 15°C), the wavelength of a note of sound of frequency 500Hz is found to be 0.68m. If the density of air at STP is 1.29kg m-3 calculate the ratio of the specific heat of air.
A 2kg body and a 3kg body are moving along the x-axis. At a particular instant, the 2kg body is 1m from the origin and has a velocity of 3ms-1 and the 3kg body is 2m from the origin and has velocity of -1 ms-1. Find the position and velocity of the centre of mass and also find the total momentum.
In an infinite homogeneous viscous liquid a sphere is falling. Obtain the formula for terminal velocity of the sphere.
Describe stress-strain relationship for a loaded steel wire and hence explain the terms : Elastic limit, yield point, tensile strength.
A conducting square loop having edges of length 2.0cm is rotated through 180° about a diagonal in 0.20s. A magnetic field B exists in the region which is perpendicular to the loop in its initial position. If the average induced emf during the rotation is 20mV, find the magnitude of the magnetic field.
Use the formula $\text{v}=\sqrt{\frac{\gamma\text{P}}{\rho}}$ to explain why the speed of sound in air:
Increases with humidity.
→Increases with humidity.
A person trying to lose weight (dieter) lifts a 10kg mass, one thousand times, to a height of 0.5m each time. Assume that the potential energy lost each time she lowers the mass is dissipated.
- How much work does she do against the gravitational force?
- Fat supplies 3.8 × 107J of energy per kilogram which is converted to mechanical energy with a 20% efficiency rate. How much fat will the dieter use up?
Consider an ideal gas with following distribution of speeds.
If all the molecules with speed 1000m/s escape from the system, calculate new Vrms and hence T.
| Speed m/s | 200 | 400 | 600 | 800 | 1000 |
| % of molecules | 10 | 20 | 40 | 20 | 10 |
