Question
A point charge is moving along a straight line with a constant velocity u. Consider a small area A perpendicular to the direction of motion of the charge (El). Calculate the displacement current through the area when its distance from the charge is x. The value of x is not large so that the electric field at any instant is essentially given by Coulomb's law.

✓

Answer

$\text{E}=\frac{\text{Kq}}{\text{x}^2}$ [from coulomb's law]

$\phi_\text{E}=\text{EA}=\frac{\text{KqA}}{\text{x}^2}$

$\text{l}_\text{d}=\in_0\frac{\text{d}\phi\text{E}}{\text{dt}}=\in_0\frac{\text{d}}{\text{dt}}\frac{\text{kqA}}{\text{x}^2}=\in_0\text{KqA}=\frac{\text{d}}{\text{dt}}\text{x}^{-2}$

$=\in_0\times\frac{1}{4\pi\in_0}\times\text{q}\times\text{A}\times-2\times\text{x}^{-3}\times\frac{\text{dx}}{\text{dt}}=\frac{\text{qAv}}{2\pi\text{x}^3}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Electromagnetic Waves→Electromagnetic Waves — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

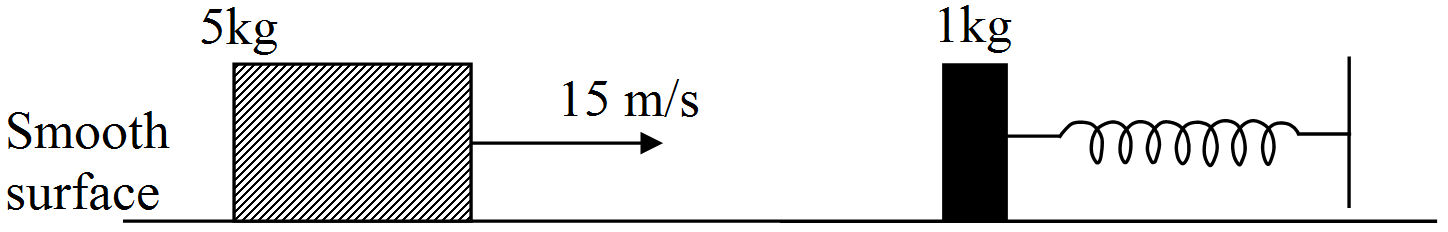

The spring constant of the spring shown in figure is 250N/m. Find the maximum compression of the spring.

→
