Question
A sound wave in a certain fluid medium is reflected at an obstacle to form a standing wave. The distance between two successive nodes is $3.75\ cm.$ If the velocity of sound is $1500\ m/s,$ find the frequency.
✓
Answer
Data: Distance between two successive nodes =
$ \frac{\lambda}{2}=3.75 \times 10^{-2} m , v =1500 m / s$
$\therefore \lambda=7.5 \times 10^{-2} m$
$v = n \times \lambda$
$\therefore n =\frac{1500}{7.5 \times 10^{-2}}=20 kHz$
$ \frac{\lambda}{2}=3.75 \times 10^{-2} m , v =1500 m / s$
$\therefore \lambda=7.5 \times 10^{-2} m$
$v = n \times \lambda$
$\therefore n =\frac{1500}{7.5 \times 10^{-2}}=20 kHz$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
With the help of a neat diagram, describe the construction and working of van de Graff generator.
The threshold wavelength of tungsten is $2.76 \times 10^{-5} cm$. (a) Explain why no photoelectrons are emitted when the wavelength is more than $2.76 \times 10^{-5} cm$.(b) What will be the maximum kinetic energy of electrons ejected in each of the following cases
(i) if ultraviolet radiation of wavelength $\lambda=1.80 \times 10^{-5} cm$ and
(ii) radiation of frequency $4 \times 10^{15} Hz$ is made incident on the tungsten surface.
→(i) if ultraviolet radiation of wavelength $\lambda=1.80 \times 10^{-5} cm$ and
(ii) radiation of frequency $4 \times 10^{15} Hz$ is made incident on the tungsten surface.
Assuming the expression for the moment of inertia of a thin uniform disc about its diameter, show that the moment of inertia of the disc about a tangent in its plane is $\mathrm{MR}^2$. Write the expression for the corresponding radius of gyration.
→A parallel-plate capacitor consists of $n$ dielectric slabs of end-face areas $A_1, A_2 \ldots \ldots \ldots . ., A_n$ and respective relative permittivities (dielectric constants) $k_1, k_2, \ldots ., k_n$, in the space between the plates as shown in below figure. Find the equivalent capacitance of this arrangement. Hence, show that if the areas are equal, the capacitance is $C=\frac{\varepsilon_0 A}{n d} \sum_j k_j$.
→With the help of a neat circuit diagram, explain the transistor as an amplifier?
What are beats? Define
(1) the period of beats
(2) beat frequency ( 1 mark each)
(1) the period of beats
(2) beat frequency ( 1 mark each)
Explain with a neat labelled diagram how the magnetic forces on a current loop produce rotary motion as in an electric motor.
Monochromatic electromagnetic radiation from a distant source passes through a slit. The diffraction pattern is observed on a screen 2.50 m from the slit. If the width of the central maximum is 6.00 mm, what is the slit width if the wavelength is
(a) 500 nm (visible light);
(b) 50 µm (infrared radiation);
(c) 0.500 nm (X-rays)?
(a) 500 nm (visible light);
(b) 50 µm (infrared radiation);
(c) 0.500 nm (X-rays)?

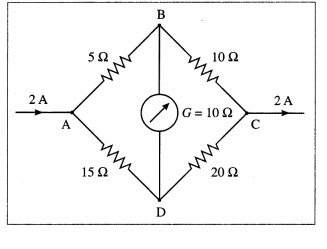

Determine the current flowing through the galvanometer shown in the figure below.
Describe the construction of the cyclotron with a neat labelled diagram
