MCQ
A string is fixed at both ends vibrates in a resonant mode with a separation $2.0 \,\,cm$ between the consecutive nodes. For the next higher resonant frequency, this separation is reduced to $1.6\,\, cm$. The length of the string is .... $cm$
  • A
    $4$
  • $8$
  • C
    $12$
  • D
    $16$

Answer

Correct option: B.
$8$
b
Let there be $n$ loops in the $1\, st$ case

$\rightarrow$ Length of the wire$L$ $=\left(\left(\mathrm{n} \lambda_{1}\right) / 2\right)$

$\left(\lambda_{1}=2 \times 2=4 \mathrm{cm}\right)$

$\rightarrow$ Length of the wire $L_{l}=\left\{(n+1) \frac{\lambda_{2}}{2}\right\}$

$\left(\lambda_{2}=2 \times(1.6)=3.2 \mathrm{cm}\right)$

$\rightarrow \frac{n \lambda_{1}}{2}=(n+1) \frac{\lambda_{2}}{2}$

$\rightarrow n \times 4=(n+1)(3.2)$

$\rightarrow 4 n-(3.2) n=3.2$

$\rightarrow 0.8 n=3.2$

$\rightarrow n=4$

Length of the string

$L=\frac{n \lambda_{1}}{2}=\frac{(4 \times 4)}{2}=8 \mathrm{cm}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Similar questions

A jat plane is travelling towards west at a speed of $1800\, km/h$. What is the voltage difference developed between the ends of the wing having a span of $25\,m$, if the Earth's magnetic field at the location has a magnitude of $5\times10^{-4}\, T$ and the dip angle is $30^o$
An equiconvex lens of glass of focal length $0.1$ metre is cut along a plane perpendicular to principle axis into two equal parts. The ratio of focal length of new lenses formed is
A wire of length $L$ is hanging from a fixed support. The length changes to $L _{1}$ and $L _{2}$ when masses $1 \,kg$ and $2 \,kg$ are suspended respectively from its free end. Then the value of $L$ is equal to ..................
A stone is dropped into a pond from the top of the tower of height $h$. If $v$ is the speed of sound in air, then the sound of splash will be heard at the top of the tower after a time
Two concentric shells of uniform density of mass $M_1$ and $M_2$ are situated as shown in the figure. The forces experienced by a particle of mass $m$ when placed at positions $A, B$ and $C$ respectively are (given $OA = p, \,OB = q$ and $OC = r$)
A solid sphere of radius $r$ made of a soft material of bulk modulus $K$ is surrounded by a liquid in a cylindrical container. A massless piston of area $a$ floats on the surface of the liquid, covering entire crosssection of cylindrical container. When a mass $m$ is placed on the surface of the piston to compress the liquid, the fractional decrement in the radius of the sphere, $\left( {\frac{{dr}}{r}} \right)$ is

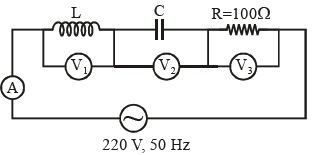

In the given circuit the reading of voltmeter $V_1$ and $V_2$ are $300$ volts each. The reading of the voltmeter $V_3$ and ammeter $A $ are respectively
