Question
ABCD ia a cyclic quadrilateral in which BA and CD when produced meet in E and EA = ED. Prove that:
- AD || BC.
- EB = EC.
✓
Answer
Given ABCD is a cyclic quadrilateral in which EA = ED To prove:
- AD || BC.
- EB = EC.
- Since EA = ED
Since, ABCD is a cyclic quadrilateral
Then, $\angle\text{ABC}+\angle\text{ADC}=180^\circ$
But $\angle\text{ABC}+\angle\text{EBC}=180^\circ$ [Linear pair of angles]
Then, $\angle\text{ADC}=\angle\text{EBC}\dots(2)$
Compare equations (1) and (2)
$\angle\text{EAD}=\angle\text{EBC}\dots(3)$
Since, corresponding angles are equal
Then, BC || AD
- From equation (3)
Similarly $\angle\text{EDA}=\angle\text{ECB}\dots(4)$
Compare equations (1)(3) and (4)
$\angle\text{EBC}=\angle\text{ECB}$
$\Rightarrow \text{EB}=\text{EC}$ [Opposite angles to equal sides]
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Prove that the angle in a segment shorter than a semicircle is greater than a right angle.
ABCD is a square, X and Y are points on sides AD and BC respectively such that $\text{AY}=\text{BX}.$ prove that $\text{BY}=\text{AX}$ and $\angle\text{BAY}=\angle\text{ABX}.$

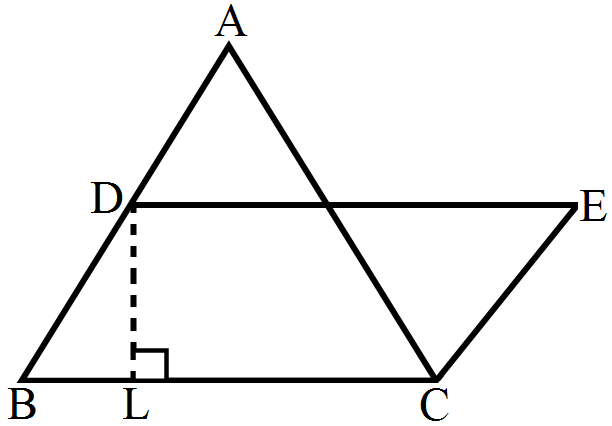

→In the given figure, a $\triangle\text{ABC}$ has been given in which AB = 7.5cm, AC = 6.5cm and BC = 7cm. On base BC, a parallelogram DBCE of the same area as that of $\triangle\text{ABC}$ is constructed. Find the height DL of the parallelogram.
