Consider the regular array of vertical identical current carrying wires (with direction of current flow as indicated in the figure alongside) protruding through a horizontal table. If we scatter some diamagnetic particles on the table, then they are likely to accumulate

✓
around regions such as $A$
B
around regions such as $B$
C
in circular regions around individual wires such as $C$
D
uniformly everywhere

✓

Answer

Correct option: A.

around regions such as $A$

a
(a)

A diamagnetic material tries to expel field lines from its volume and therefore experiences a repulsion when placed in region of strong fields. In given arrangement, field is zero in region marked $A$. So, diamagnetic powder accumulates in region $A$.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

JEE STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

If the molecular weight of two gases are $M_1$ and $ M_1$, then at a temperature the ratio of root mean square velocity $v_1$ and $v_2$ will be

car moves on a circular road. It describes equal angles about the centre in equal intervals of time. Which of the following statement about the velocity of the car is true

In an experiment to measure focal length $(f)$ of convex lens, the least counts of the measuring scales for the position of object $(u)$ and for the position of image $(v)$ are $\Delta u$ and $\Delta v$, respectively. The error in the measurement of the focal length of the convex lens will be :

The maximum and minimum tension in the string whirling in a circle of radius $2.5 \,m$ with constant velocity are in the ratio $5 : 3$ then its velocity is

A bar is subjected to axial forces as shown. If $E$ is the modulus of elasticity of the bar and $A$ is its crosssection area. Its elongation will be

During negative $\beta$-decay

The threshold frequency for a photosensitive metal is $ 3.3 \times 10^{14} Hz$. If light of frequency $8.20 \times 10^{14} Hz $ is incident on this metal, the cutoff voltage for the photoelectron emission is nearly ............ $V$

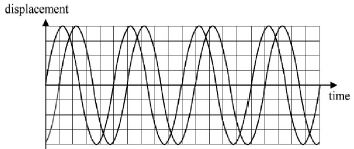

The diagram shows two oscillations. What is the phase difference between the oscillations?
