Question
Draw a p-n junction which is reverse biased.
✓
Answer

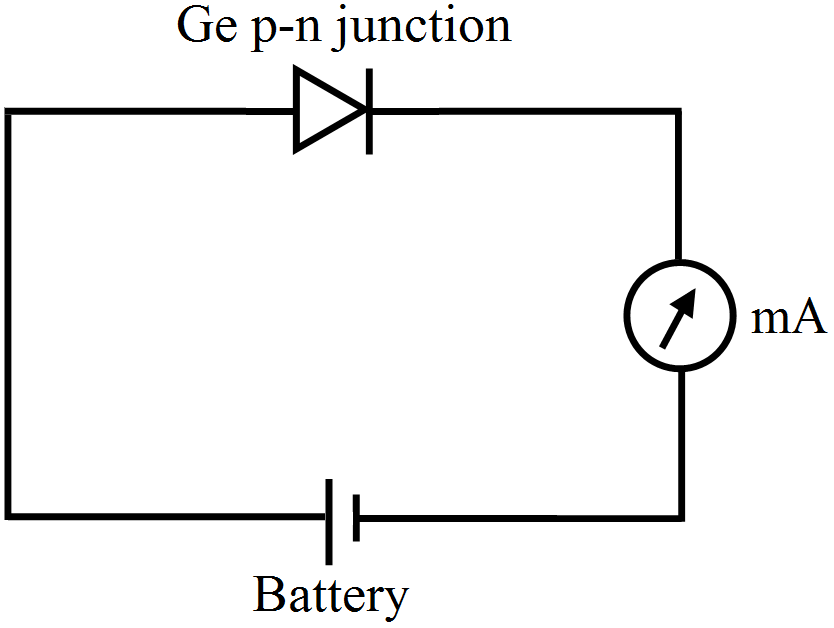

The p-n junction with reverse bias is shown in figure.
