Question
Explain linear density, surface density and volume density for continuous charge distribution.
✓
Answer
(1) Linear distribution of electric charge.
►If there is a continuous electric charge on a line, it is called linear distribution of electric charge.
►The electric charge per unit length on an electrically charged line is called linear density of electric charge.
►Assume there is a total charge of Q on the line length of $l$.
►Linear density of charge,
$\lambda=\frac{\text { Total electric charge }}{\text { length }}=\frac{ Q }{l}$
SI unit of linear density is $C / m$
(2) Surface distribution of charge :
If there is a continuous electric charge on a surface, it is called surface distribution of charge.
►The electric charge per unit surface is called surface density of charge.
►Assume there is a total charge of Q on the Surface of Area A,
$\therefore$ Surface density of charge,
$\sigma=\frac{\text { Total electric ch arge }}{\text { Area }}=\frac{ Q }{ A }$
►SI unit : $C / m ^2$
(3) Volume distribution of charge :
If there is a continuous electric charge on a volume, it is called volume distribution of charge.
►The electric charge per unit volume is called volume density of charge.
►Assume there is a total charge Q on the matter with volume V ,
$\therefore$ Volume density of charge
$\Omega=\frac{\text { Total ch arg } e }{\text { volume }}=\frac{ Q }{ V }$
►SI unit : C $/ m ^3$
►If there is a continuous electric charge on a line, it is called linear distribution of electric charge.
►The electric charge per unit length on an electrically charged line is called linear density of electric charge.
►Assume there is a total charge of Q on the line length of $l$.
►Linear density of charge,
$\lambda=\frac{\text { Total electric charge }}{\text { length }}=\frac{ Q }{l}$
SI unit of linear density is $C / m$
(2) Surface distribution of charge :
If there is a continuous electric charge on a surface, it is called surface distribution of charge.
►The electric charge per unit surface is called surface density of charge.
►Assume there is a total charge of Q on the Surface of Area A,
$\therefore$ Surface density of charge,
$\sigma=\frac{\text { Total electric ch arge }}{\text { Area }}=\frac{ Q }{ A }$
►SI unit : $C / m ^2$
(3) Volume distribution of charge :
If there is a continuous electric charge on a volume, it is called volume distribution of charge.
►The electric charge per unit volume is called volume density of charge.
►Assume there is a total charge Q on the matter with volume V ,
$\therefore$ Volume density of charge
$\Omega=\frac{\text { Total ch arg } e }{\text { volume }}=\frac{ Q }{ V }$
►SI unit : C $/ m ^3$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions

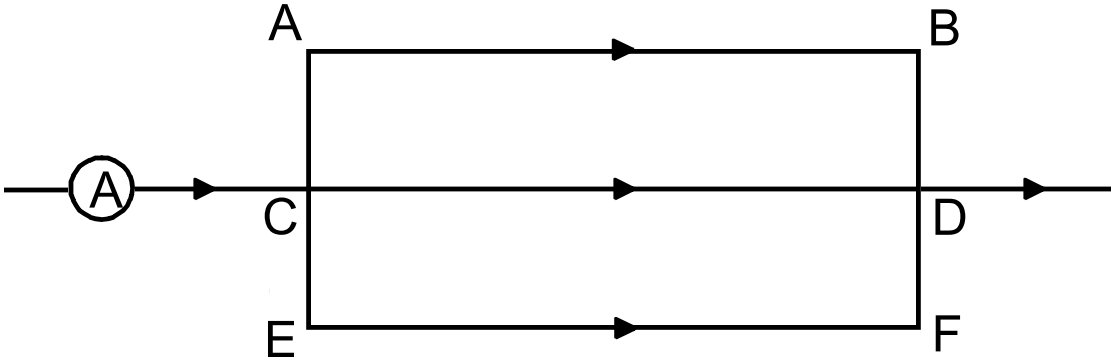

Figure shows a part of an electric circuit. The wires AB, CD and EF are long and have identical resistances. The separation between the neighbouring wires is 1.0cm. The wires AE and BF have negligible resistance and the ammeter reads 30A. Calculate the magnetic force per unit length of AB and CD.
