Motion — Science STD 9 — Question

Rajasthan BoardEnglish MediumSTD 9ScienceMotion3 Marks
Question

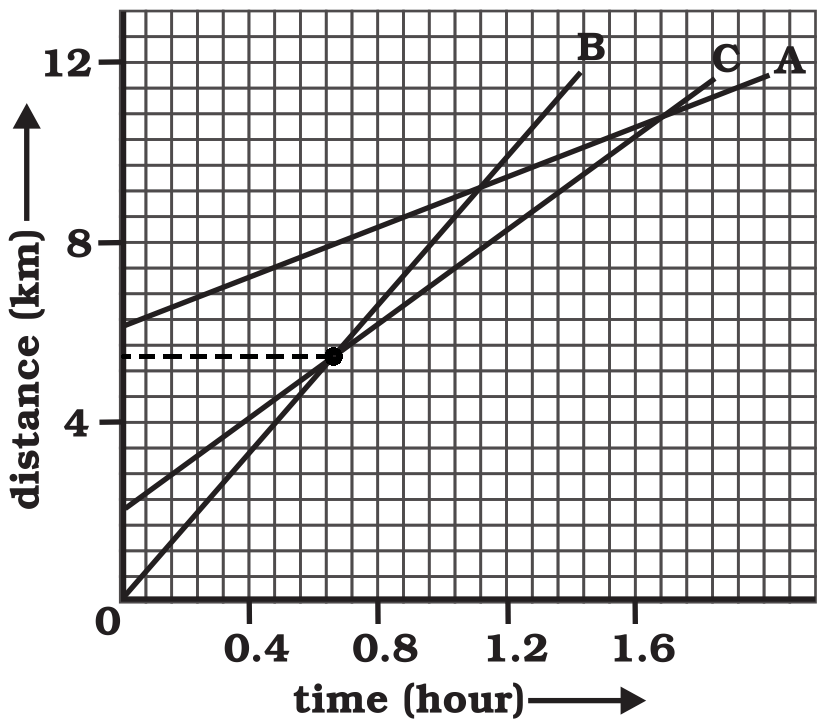

Fig shows the distance-time graph of three objects A, B and C. Study the graph and answer the following questions:
  1. Which of the three is travelling the fastest?
  2. Are all three ever at the same point on the road?
  3. How far has C travelled when B passes A?
  4. How far has B travelled by the time it passes C?
✓

Answer

  1. Object B
  2. No
  3. 5.714km
  4. 5.143km
  1. Speed $=\frac{\text{Distance}}{\text{Time}}$
Slope of graph $=\frac{\text{y-axis}}{\text{x-axis}}=\frac{\text{Distance}}{\text{Time}}$
Therefore, Speed = slope of the graph.
Since slope of object B is greater than objects A and C, it is travelling the fastest.
  1. All three objects A, B and C never meet at a single point. Thus, they were never at the same point on road.
7 square box = 4km
$\therefore$ 1 square box $=\frac{4}{7}\text{km}$
C is 4 blocks away from origin therefore initial distance of C from origin
Distance of C from origin when B passes A = 8km
Thus, Distance travelled by C when B passes A
$= 8 - \frac{16}{7 }$
$=\frac{(56 - 16)}{7 }$​​​​​​​
$=\frac{40}{7}= 5.714\text{km}$
  1.  Distance travelled by B by the time it passes C = 9 square boxes
$9×\frac{4}{7} =\frac{36}{7}= 5.143\text{km}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Que-Ans (Each of 3 Mark )" from Motion→Motion — all question types→Science STD 9 question papers→Rajasthan Board STD 9 question papers→Rajasthan Board question paper generator→

Similar questions

“Multicellular organisms show division of labour.” Explain the statement with the help of example.
→

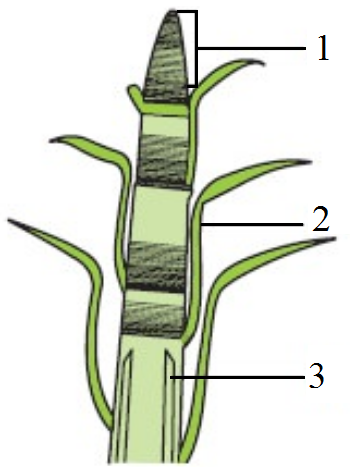

  1. Identify the figure.
  2. Labels the parts marked 1 to 3.
  3. Write the functions of parts marked 1 and 3.
→
What conclusion would be drawn by Rutherford when he observed that most of the fast moving $\alpha $ -particles passed straight through the gold foil?
→

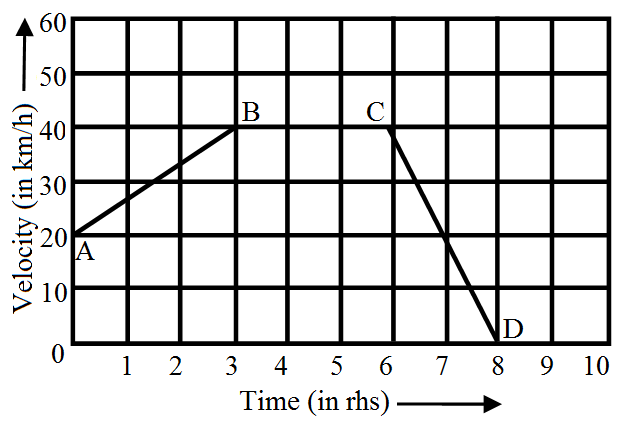

Given alongside is the velocity-tine graph for a moving body:
