In a meter bridge experiment resistances are connected as shown in the figure. Initially resistance $P\, = 4\,\Omega $ and the neutral point $N$ is at $60\,cm$ from $A$. Now an unknown resistance $R$ is connected in series to $P$ and the new position of the neutral point is at $80\,cm$ from $A$ . The value of unknown resistance $R$ is
JEE MAIN 2017, Diffcult
Download our app for free and get started
In balance position of bridge, $\frac{P}{Q}=\frac{l}{(100-l)}$
Initially neutral position is $60\, \mathrm{cm} .$ from $\mathrm{A}$,
so
$\frac{4}{60}=\frac{Q}{40} \Rightarrow Q=\frac{16}{6}=\frac{8}{3}\, \Omega$
Now, when unknown resistance $\mathrm{R}$ is connected in series to $P$, neutral point is $80 \,cm$ from Athen,
$\frac{4+R}{80}=\frac{Q}{20}$
$\frac{4+R}{80}=\frac{8}{60}$
$R=\frac{64}{6}-4=\frac{64-24}{6}=\frac{40}{6} \,\Omega$
Hence, the value of unknown resistance $\mathrm{R}$
is $=\frac{20}{3} \,\Omega$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1A $500\, W$ heating unit is designed to operate from a $115\, volt$ line. If the line voltage drops to $110\, volt$, the percentage drop in heat output will be ............... $\%$View Solution
- 2For a cell terminal $P.D.$ is $2.2\;V$ when circuit is open and reduces to $1.8\;V$ when cell is connected to a resistance of $R = 5\,\Omega $. Determine internal resistance of cell $(r)$ is then ........ $\Omega$View Solution
- 3$A$ total charge $Q$ flows across a resistor $R$ during a time interval $= T$ in such a way that the current vs. time graph for $0 \rightarrow T$ is like the loop of a sin curve in the range $0 \rightarrow \pi$ . The total heat generated in the resistor isView Solution
- 4Resistance $n$, each of $r\; ohm$, when connected in parallel give an equivalentresistance of $R\; ohm$. If these resistances were connected in series, the combination would have a resistance in $ohms$, equal toView Solution
- 5A potentiometer is used for the comparison of $e.m.f.$ of two cells ${E_1}$ and ${E_2}$. For cell ${E_1}$ the no deflection point is obtained at $20\,cm$ and for ${E_2}$ the no deflection point is obtained at $30\,cm$. The ratio of their $e.m.f.$'s will beView Solution

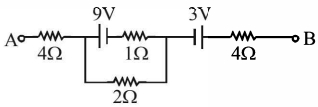

- 6In the circuit shown in figure potential difference between points A and $B$ is $16\,V$. the current passing through $2 \Omega$ resistance will be $...........\,A$View Solution
