In Fig. The measure of 'A'C' is: - Vidyadip

MCQ

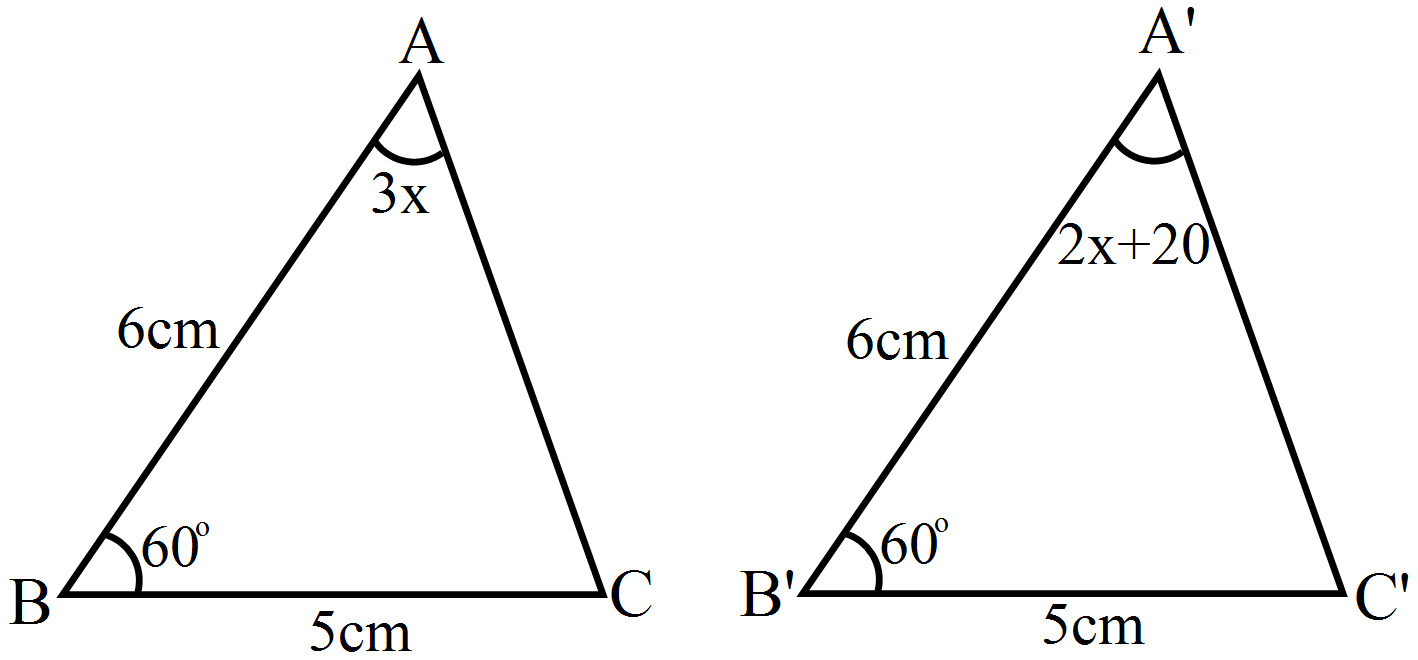

In Fig. The measure of $\angle\text{B}'\text{A}'\text{C}'$ is:

A
50º
B
60º
C
70º
D
80º

✓

Answer

60º
Solution:

In $\triangle\text{ABC}$ and $\triangle\text{A}'\text{B}'\text{C},$
$\text{AB}=\text{A}'\text{B}'$
$\text{BC}=\text{B}'\text{C}'$
$\angle\text{ABC}=\angle\text{A}'\text{B}'\text{C}'$
So $\triangle\text{ABC}\cong\triangle\text{A}'\text{B}'\text{C}'$ by SAS creterion
$\Rightarrow\angle\text{BAC}=\angle\text{B}'\text{A}'\text{C}'$
$\Rightarrow3\text{x}=2\text{x}+20$
$\text{x}=20^\circ$
$2\text{x}+20=2\times20+60^\circ=\angle\text{B}'\text{A}'\text{C}'$
Hence, correct option is (b).
