In the given current distribution what is the value of $I$ .............. $A$
Easy
Download our app for free and get started
(c) From Kirchoff's junction Law
$ \Rightarrow $ $4 + 2 + i - 5 - 3 = 0$ $ \Rightarrow $ $i = 2\,A$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1Two wires $A$ and $B$ of the same material, having radii in the ratio $1: 2$ carry currents in the ratio $4: 1$. The ratio of drift speed of electrons in $A$ and $B$ is .......View Solution
- 2As shown in the schematic below, a rod of uniform cross-sectional area $A$ and length $l$ is carrying a constant current $i$ through it and voltage across the rod is measured using an ideal voltmeter. The rod is stretched by the application of a force $F$. Which of the following graphs would show the variation in the voltage across the rod as function of the strain $\varepsilon$ when the strain is small. Neglect Joule heating.View Solution
- 3In the experiment of $Ohm's law,$ a potential difference of $5.0\, V$ is applied across the end of a conductor of length $10.0\, cm$ and diameter of $5.00\, mm .$ The measured current in the conductor is $2.00\, A$. The maximum permissible percentage error in the resistivity of the conductor isView Solution
- 4If a wire is stretched to make it $0.1 \%$ longer, its resistance willView Solution

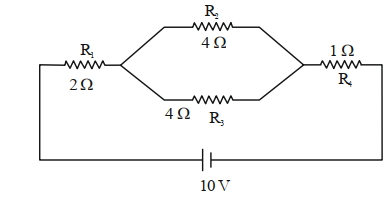

- 5In the given circuit, the current in resistance $\mathrm{R}_3 $ is :View Solution
