Question
State three factors on which the heat produced by an electric current depends. How does it depend on these factors?
✓
Answer
Heat produced by an electric current depends on the following factors:
- Heat produced is directly proportional to square of current.
- Heat produced is directly proportional to resistance.
- Heat produced is directly proportional to the time for which current flows.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
State and explain Joule’s law of heating.
An object placed on a metre scale at 8 cm mark was focussed on a white screen placed at 92 cm mark, using a converging lens placed on the scale at 50 cm mark.
- Find the focal length of the converging lens.
- Find the position of the image formed if the object is shifted towards the lens at a position of 29.0 cm.
- State the nature of the image formed if the object is further shifted towards the lens.
The electrical resistivities of four materials P, Q, R and S are given below:
$\begin{matrix}\text{P}&6.84\times10^{-8}\Omega\text{m}\\\text{Q}&1.70\times10^{-8}\Omega\text{m}\\\text{R}&1.0\times10^{15}\Omega\text{m}\\\text{S}&11.0\times10^{-7}\Omega\text{m}\end{matrix}$
Which material will you use for making:
→$\begin{matrix}\text{P}&6.84\times10^{-8}\Omega\text{m}\\\text{Q}&1.70\times10^{-8}\Omega\text{m}\\\text{R}&1.0\times10^{15}\Omega\text{m}\\\text{S}&11.0\times10^{-7}\Omega\text{m}\end{matrix}$
Which material will you use for making:
- Heating element of electric iron.
- Connecting wires of electric iron.
- Covering of connecting wires?
There are two types of light-sensitive cells in the human eye:
- Where are they found?
- What is each type called?
- To what is each type of cell sensitive?
A small object is so placed in front of a convex lens of 5cm focal length that a virtual image is formed at a distance of 25cm. Find the magnification
An object is 2m from a lens which forms an erect image one-fourth (exactly) the size of the object. Determine the focal length of the lens. What type of lens is this?
A shop security mirror 5.0m from certain items displayed in the shop produces one-tenth magnification.
- What is the type of mirror?
- What is the radius of curvature of the mirror?
Describe the New Cartesian Sign Convention used in optics. Draw a labelled diagram to illustrate this sign convention.
Why do stars twinkle on a clear night?

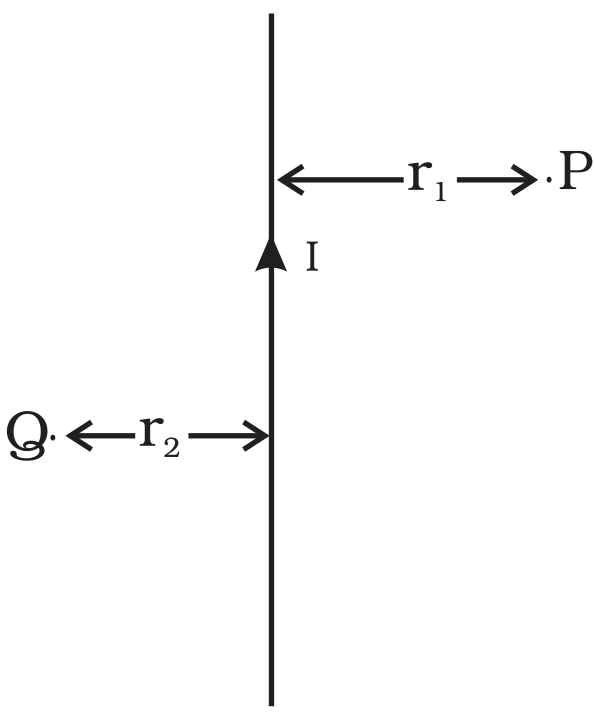

AB is a current carrying conductor in the plane of the paper as shown in Figure. What are the directions of magnetic fields produced by it at points P and Q? Given r1 > r2, where will the strength of the magnetic field be larger?
