Question
Test if the following equations are dimensionally correct:

  1. $\text{h}=\frac{2\text{S}\cos\theta}{\rho\text{rg}}$

  2. $\text{u}=\sqrt{\frac{\text{P}}{\rho}}$

  3. $\text{V}=\frac{\pi\text{Pr}^4\text{t}}{8\eta l}$

  4. $\text{v}=\frac{1}{2\pi}\sqrt{\frac{\text{mg}l}{\text{I}}}$

where h = height, S = surface tension, $\rho$ = density, P = pressure, V = volume, $\eta$ = coefficient of viscosity, v = frequency and I = moment of inertia.

Answer

  1. $\text{h}=\frac{2\text{S}\cos\theta}{\rho\text{rg}}$

$\text{LHS}=[\text{L}]$

Surface tension $=\text{S}=\frac{\text{F}}{\text{I}}=\frac{\text{MLT}^{-2}}{\text{L}}=[\text{MT}^{-2}]$

Density $=\rho=\frac{\text{M}}{\text{V}}=[\text{ML}^{-3}\text{T}^{0}]$

Radius $=\text{r}=[\text{L],g = [LT}^{-2}]$

$\text{RHS}=\frac{2\text{S}\cos\theta}{\rho\text{rg}}=\frac{[\text{MT}^{-2}]}{[\text{ML}^{-3}\text{T}^0][\text{L}][\text{LT}^{-2}]}=[\text{M}^0\text{L}^1\text{T}^0]=[\text{L}]$

$\text{LHS = RHS}$

So, the relation is correct

  1. $\text{v}=\sqrt{\frac{\text{P}}{\rho}}$ where v = velocity

$\text{LHS = Dimension of v = [LT}^{-1}]$

Dimension of $\text{p}=\frac{\text{F}}{\text{A}}=[\text{ML}^{-1}\text{T}^{-2}]$

Dimension of $\rho=\frac{\text{m}}{\text{v}} = \text{[ML}^{-2}]$

$\text{RHS}=\sqrt{\frac{\text{p}}{\rho}}=\sqrt{\frac{[\text{ML}^{-1}\text{T}^{-2}]}{[\text{ML}^{-3}]}}=[\text{L}^2\text{T}^{-2}]^{\frac{1}{2}}=[\text{LT}^{-1}]$

So, the relation is correct.

  1. $\text{V}=\frac{(\pi\text{pr}^4\text{t})}{(8\eta\text{I})}$

$\text{LHS = Dimension of V = [L}^3]$

Dimension of $\text{p}=[\text{ML}^{-1}\text{T}^{-2}],\text{r}^4=[\text{L}^4],\text{t}=[\text{T}]$

Coefficient of viscosity $=[\text{ML}^{-1}\text{T}^{-1}]$

$\text{RHS}=\frac{\pi\text{pr}^4\text{t}}{8\eta\text{I}}=\frac{[\text{ML}^{-1}\text{T}^{-2}][\text{L}^4][\text{T}]}{[\text{ML}^{-1}\text{T}^{-1}][\text{L}]}$

So, the relation is correct.

  1. $\text{v}=\frac{1}{2\pi}\sqrt{(\text{mgI}/\text{I})}$

$\text{LHS = dimension of v = [T}^{-1}]$

$\text{RHS}=\sqrt{(\text{mgI}/\text{I})}=\sqrt{\frac{[\text{M}][\text{LT}^{-2}][\text{L}]}{[\text{ML}^2]}}=[\text{T}^{-1}]$

$\text{LHS = RHS}$

So, the relation is correct.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Similar questions

If 28 × 1023 molecules of a gas strike a surface of area 14cm2 normally per second with velocity of 500 ms-1 and rebound in the opposite direction with the same speed find the pressure exerted by the gas on the surface if mass of each molecule is 5 × 10-23 g.

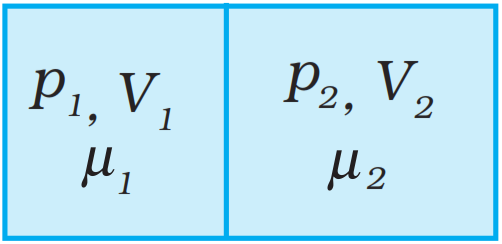

The container shown in Fig. has two chambers, separated by a partition, of volumes V1 = 2.0 litre and V= 3.0 litre. The chambers contain $μ_1 = 4.0$ and $μ_2 = 5.0$ moles of a gas at pressures p1 = 1.00 atm and p2 = 2.00atm. Calculate the pressure after the partition is removed and the mixture attains equilibrium.
