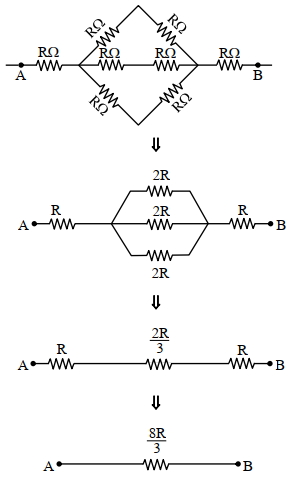

The effective resistance between $A$ and $B$, if resistance of each resistor is $R$, will be
JEE MAIN 2024, Diffcult
