The $P N$ junction diode is used as
  • A
    An amplifier
  • ✓
    A rectifier
  • C
    An oscillator
  • D
    A modulator
✓

Answer

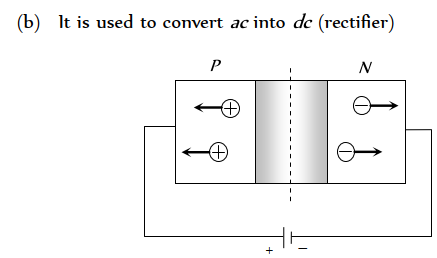

Correct option: B.
A rectifier
