MCQ

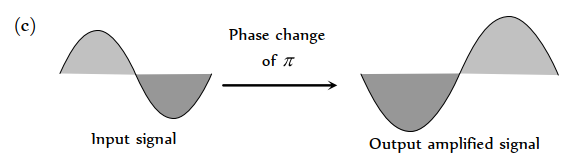

The phase difference between input and output voltages of a CE circuit is
- A$ 0$
- B$90$
- ✓$180$
- D$ 270$
✓
Answer
Correct option: C.
$180$
