Question
To what angle a cyclist has to bend to negotiate a curved path? Derive an expression.
✓
Answer

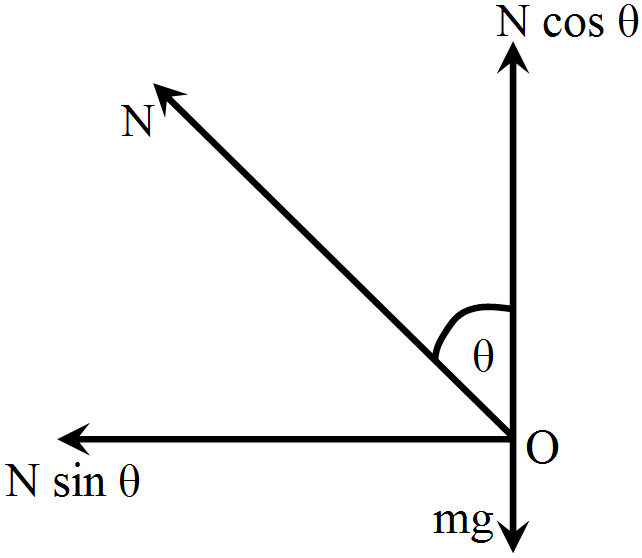

As the cyclist leans by an angle $\theta$ with the vertical, the normal can be acting as shown. If v is the speed of the cyclist, the necessary centripetal force is provided by the component $\text{N}\sin\theta$ of normal reaction and $\text{N}\cos\theta$ provides balancing for weight.
$\therefore\ \text{N}\sin\theta=\frac{\text{mv}^2}{\text{r}},$ $\text{N}\cos\theta=\text{mg}$
Dividing, $\tan\theta=\frac{\text{v}^2}{\text{rg}}$
$\Rightarrow\ \theta=\tan^{-1}\Big(\frac{\text{v}^2}{\text{rg}}\Big)$
$\therefore\ \text{N}\sin\theta=\frac{\text{mv}^2}{\text{r}},$ $\text{N}\cos\theta=\text{mg}$
Dividing, $\tan\theta=\frac{\text{v}^2}{\text{rg}}$
$\Rightarrow\ \theta=\tan^{-1}\Big(\frac{\text{v}^2}{\text{rg}}\Big)$
