Lines and Angles — Maths STD 9 — Question

Gujarat BoardEnglish MediumSTD 9MathsLines and Angles1 Mark
MCQ
Two straight lines AB and CD intersect one another at the point O. If $\angle\text{AOC}+\angle\text{COB}+\angle\text{BOD}=274^\circ,$ then $\angle\text{AOD}=$
  • A
    86°
  • B
    90°
  • C
    94°
  • D
    137°
✓

Answer

  1. 86°
    Solution:

    $\angle\text{AOC}+\angle\text{COB}+\angle\text{BOD}+\angle\text{AOD}=360^\circ\dots(1)$
    Now,
    $\angle\text{AOC}+\angle\text{COB}+\angle\text{BOD}=274^\circ\dots(2)$ [Given]
    From (1) and (2).
    $274^\circ+\angle\text{AOD}=360^\circ$
    $\Rightarrow\ \angle\text{AOD}=360^\circ-274^\circ$
    $\Rightarrow\ \angle\text{AOD}=86^\circ$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q" from Lines and Angles→Lines and Angles — all question types→Maths STD 9 question papers→Gujarat Board STD 9 question papers→Gujarat Board question paper generator→

Similar questions

The length, breadth and height of a cuboid are 15cm, 12cm and 4.5cm respectively. Its volume is:
→
The perimeter of an isosceles right triangle having area $100 cm^2$ is
→
If (x + 5) is a factor of = x3 - 20x + 5k then k = ?
→
The area of $\triangle\text{AOB}$ having vertices A(0, 6), O(0, 0) and B(6, 0) is:
→
If the length of a median of an equilateral triangle is x cm, then its area is:
→

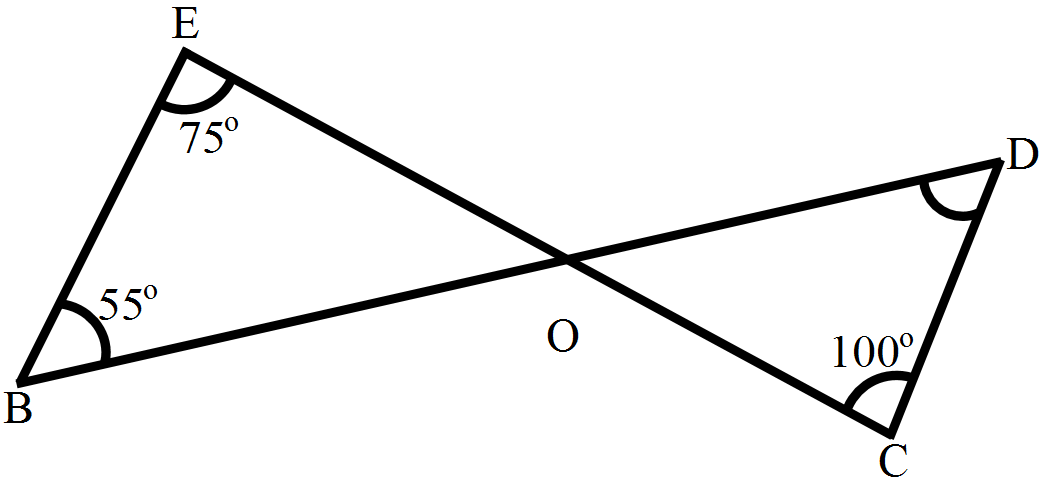

 In the given figure, $\angle\text{OEB} = 75^\circ,\angle\text{OBE}=55^\circ$ and $\angle\text{OCD}=100^\circ.$ Then $\angle\text{ODC}=?$
→
