  1. Using Gauss Theorem show mathematically that for any point outside the shell, the field due to a uniformly charged spherical shell is same as the entire charge on the shell, is concentrated at the centre.
  2. Why do you expect the electric field inside the shell to be zero according to this theorem?

OR

A thin conducting spherical shell of radius R has charge Q spread uniformly over its surface. Using Gauss’s theorem, derive an expression for the electric field at a point outside the shell.

Draw a graph of electric field E(r) with distance r from the centre of the shell for $0\leq\text{r}\le\infty.$

OR

Find the electric field intensity due to a uniformly charged spherical shell at a point (i) outside the shell and (ii) inside the shell. Plot the graph of electric field with distance from the centre of the shell.

OR

Using Gauss’s law obtain the expression for the electric field due to a uniformly charged thin spherical shell of radius R at a point outside the shell. Draw a graph showing the variation of electric field with r, for r > R and r < R.

✓

Answer


  1. Electric field intensity at a point outside a uniformly charged thin spherical shell: Consider a uniformly charged thin spherical shell of radius R carrying charge Q. To find the electric field outside the shell, we consider a spherical Gaussian surface of radius r (>R), concentric with given shell. If $\vec{\text{E}}$ is electric field outside the shell, then by symmetry electric field strength has same magnitude E0 on the Gaussian surface and is directed radially outward. Also the directions of normal at each point is radially outward, so angle between $\vec{\text{E}}_\text{i}$ and $\vec{\text{dS}}$ is zero at each point. Hence, electric flux through Gaussian surface.

$\oint\text{S}=\vec{\text{E}}_0.\vec{\text{dS}}$

$\oint=\text{E}_0\text{dS}\cos0=\text{E}_0.4\pi\text{r}^2$

Now, Gaussian surface is outside the given charged shell, so charge enclosed by Gaussian surface is Q.

Hence, by Gauss’s theorem,

$\oint\text{S}=\vec{\text{E}}_0.\vec{\text{dS}}=\frac{1}{\in_0}\times\text{charged enclosed}$

$\Rightarrow\ \text{E}_0.4\pi\text{r}^2=\frac{1}{\in_0}\times\text{Q}$

$\Rightarrow\ \text{E}_0=\frac{1}{4\pi\in_0}\frac{\text{Q}}{\text{r}^2}$

Thus, electric field outside a charged thin spherical shell is the same as if the whole charge Q is concentrated at the centre.

If $\sigma$ is the surface charge density of the spherical shell, then

$\text{Q}=4\pi\text{R}^2\sigma$ coulomb

$\therefore\ \text{E}_0=\frac{1}{4\pi\in_0}\frac{4\pi\text{R}^2\sigma}{\text{r}^2}=\frac{\text{R}^2\sigma}{\in_0\text{r}^2}$


  1. Electric field inside the shell (hollow charged conducting sphere): The charge resides on the surface of a conductor. Thus a hollow charged conductor is equivalent to a charged spherical shell. To find the electric field inside the shell, we consider a spherical Gaussian surface of radius r (< R) concentric with the given shell. If $\vec{\text{E}}$ is the electric field inside the shell, then by symmetry electric field strength has the same magnitude Ei on the Gaussian surface and is directed radially outward. Also the directions of normal at each point is radially outward, so angle between $\vec{\text{E}}_\text{i}$ and $\vec{\text{dS}}$ is zero at each point.

Hence, electric flux through Gaussian surface,

$=\int\limits_\text{S}\vec{\text{E}}_{\text{i}}.\vec{\text{dS}}=\int\text{E}_\text{i}.\text{dS}\cos0=\text{E}_\text{i}.4\pi\text{r}^2$

Now, Gaussian surface is inside the given charged shell, so charge enclosed by Gaussian surface is zero.

Hence, by Gauss’s theorem,

$\int\limits_\text{S}\vec{\text{E}}_\text{i}.\vec{\text{dS}}=\frac{1}{\in_0}\times\text{charged enclosed}$

$\Rightarrow\ \text{E}_\text{i}4\pi\text{r}^2=\frac{1}{\in_0}\times0\Rightarrow\ \text{E}_\text{i}=0$


Thus, electric field at each point inside a charged thin spherical shell is zero. The graph is shown in fig.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Long Answer Type Questions [5M]" from Electric Charges and Fields→Electric Charges and Fields — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

  1. Using the Bohr’s model calculate the speed of the electron in a hydrogen atom in the n = 1, 2, and 3 levels.
  2. Calculate the orbital period in each of these levels.
→
An aluminium can of cylindrical shape contains 500cm3 of water. The area of the inner cross section of the can is 125cm2. All measurements refer to 10°C. Find the rise in the water level if the temperature increases to 80°C. The coefficient of linear expansion of aluminium = 23 × 10-6 °C-1 and the average coefficient of volume expansion of water = 3.2 × 10-4 °C-1 respectively.
→
A long solenoid 'S' has 'n' turns per meter, with diameter 'a'. At the centre of this coil we place a smaller coil of 'N' turns and diameter 'b' (where b < a). If the current in the solenoid increases linearly, with time, what is the induced emf appearing in the smaller coil. Plot graph showing nature of variation in emf, if current varies as a function of mt2 +C.
→
A rod of negligible heat cafacity has length 20cm, area of cross section 1.0cm and thermal conductivity 200Wm-1°C-1. The temperature of one end is maintained at 0°C and that of the other end is slowly and linearly varied from 0°C to 60°C in 10 minutes. Assuming no loss of heat through the sides, find the total heat transmitted through the rod in these 10 minutes.
→
Derive an expression for the electric potential at a point due to an electric dipole. Mention the contrasting features of electric potential of a dipole at a point as compared to that due to a single charge.
→
Figure, shows water in a container having 2.0mm thick walls made of a material of thermal conductivity $0.50\text{Wm}^{-1}{^{\circ}}\text{C}^{-1}.$ The container is kept in a melting-ice bath at 0°C. The total surface area in contact with water is 0.05m2. A wheel is clamped inside the water and is coupled to a block of mass M as shown in the figure. As the block goes down, the wheel rotates. It is found that after some time a steady state is reached in which the block goes down with a constant speed of 10cms-1 and the temperature of the water remains constant at 1.0°C. Find the mass M of the block. Assume that the heat flows out of the water only through the walls in contact. Take g = 10ms-2.

→
Suppose all the electrons of 100g water are lumped together to form a negatively charged particle and all the nuclei are lumped together to form a positively charged particle. If these two particles are placed 10.0cm away from each other, find the force of attraction between them. Compare it with your weight.
→
An ideal gas having density 1.7 × 10-3g-cm-3 at a pressure 1.5 × 105Pa is filled in a Kundt tube. When the gas is resonated at a frequency of 3.0KHz, nodes are formed at a separation of 6.0cm. Calculate the molar heat capacities CP and Cv of the gas.
→

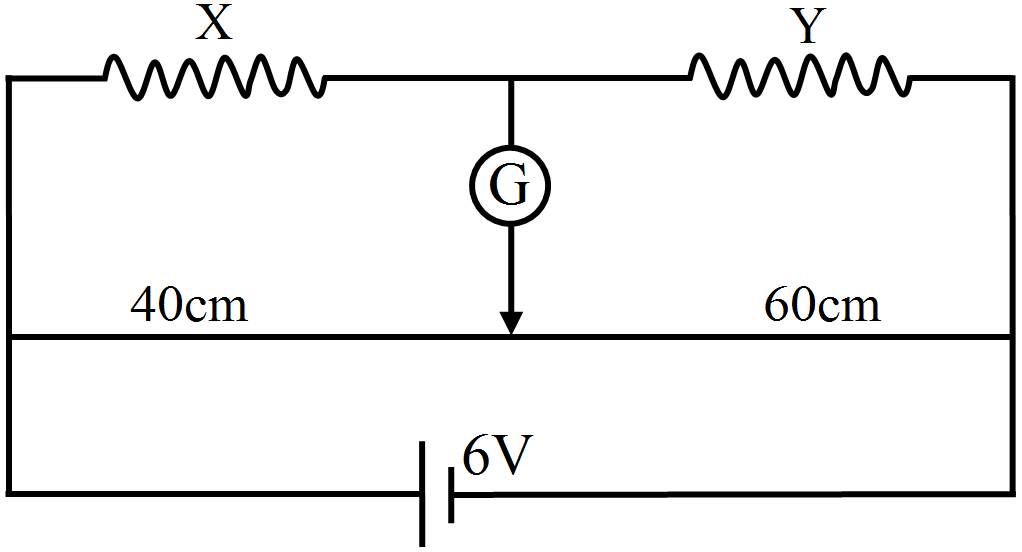

In the given circuit, a metre bridge is shown in the balanced state. The metre bridge wire has a resistance of $1\Omega\text{cm}-1$. Calculate the unknown resistance X and the current drawn from the battery of a negligible internal resistance if the magnitude of Y is $6\Omega$ If at the balancing point, we interchange the position of galvanometer and the cell, how it will affect the position of the galvanometer?

→
