Magnetism And Matter — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsMagnetism And Matter3 Marks
Question
What are permanent magnets? What is an efficient way of preparing a permanent magnet? Write two characteristic properties of materials which are required to select them for making permanent magnets.
✓

Answer

Permanent Magnets: The magnets prepared from ferromagnetic materials which retain their magnetic properties for a long time are called permanent magnets. An efficient way to make a permanent magnet is to place a ferromagnetic rod in a solenoid and pass a current. The magnetic field of the solenoid magnetises the rod.
The materials used for permanent magnet must have the following characteristic properties:
  1. High retentivity so that the magnet may cause strong magnetic field.
  2. High coercivity so that the magnetisation is not wiped out by strong external fields, mechanical ill-treatment and temperature changes. The loss due to hysteresis is immaterial because the magnet in this case is never put to cyclic changes.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Magnetism And Matter→Magnetism And Matter — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

  1. An X-ray tube produces a continuous spectrum of radiation with its short wavelength end at 0.45 Å. What is the maximum energy of a photon in the radiation?
  2. From your answer to (a), guess what order of accelerating voltage (for electrons) is required in such a tube?
→
Define the term 'resolving power' of an astronomical telescope. How does it get affected on?
  1. Increasing the aperture of the objective lens?
  2. Increasing the wavelength of the light used?
Justify your answer in each case.
→
Consider the situation shown in figure. The wires $P_1Q_1$ and $P_2Q_2$ are made to slide on the rails with the same speed 5cm/s. Find the electric current in the $19\Omega$ resistor if:
  1. Both the wires move towards right.
  2. If $P_1Q_1$ moves towards left but $P_2Q_2$ moves towards right.
→
A man uses a concave mirror for shaving. He keeps his face at a distance of 25cm from the mirror and gets an image which is 1.4 times enlarged. Find the focal length of the mirror.
→
A short magnet is moved along the axis of a conducting loop. Show that the loop repels the magnet if the magnet is approaching the loop and attracts the magnet if it is going away from the loop.
→
The condition of air in a cloeed room is described as follows. Temperature = 25°C, relative humidity = 60%, pressure = 104kPa. lf all the water vapour is removed from the room without changing the temperature, what will be the new pressure? The saturation vapour pressure at 25°C = 3.2kPa.
→

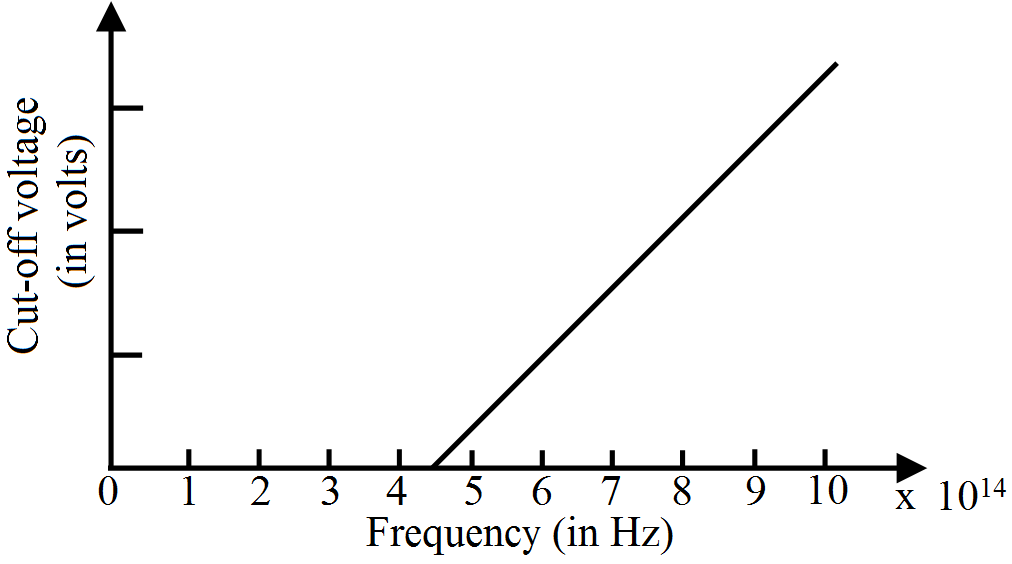

For photoelectric effect in sodium, the figure shows the plot of cut-off voltage versus frequency of incident radiation. Calculate,
  1. Threshold frequency.
  2. Work function for sodium.
→
Three charges are arranged on the vertices of an equilateral triangle as shown in figure. Find the dipole moment of the combination.
→
Two sources of sound, $S_1$ and $S_2,$ emitting waves of equal wavelength 20.0cm, are placed with a separation of 20.0cm between them. A detector can be moved on a line parallel to $S_1S_2,$ and at a distance of 20.0cm from it. Initially, the detector is equidistant from the two sources. Assuming that the waves emitted by the sources are in phase, find the minimum distance through which the detector should be shifted to detect a minimum of sound.
→
An electron and a photon each have a wavelength of 1.00 nm. Find:
  1. Their momenta,
  2. The energy of the photon, and
  3. The kinetic energy of electron.
→
