Question
When a compass needle be placed at magnetic north pole, how would it behave? If a dip needle be placed at the place, how would it behave?
✓
Answer
Compass needle stays in horizontal north-south direction. At poles horizontal component H = 0; therefore there will be no effect of earth’s field on magnetic north pole and it can stay in any direction; on the other hand a dip needle points along the resultant magnetic field and at poles the resultant field is vertical; hence the needle becomes vertical.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
In a typical fission reaction, the nucleus is split into two middle-weight nuclei of unequal masses. Which of the two (heavier or lighter) has greater kinetic energy? Greater linear momentum?
A person has near point at 100cm. What power of lens is needed to read at 20cm if he/ she uses.
- Contact lens,
- Spectacles having glasses 2.0cm separated from the eyes?

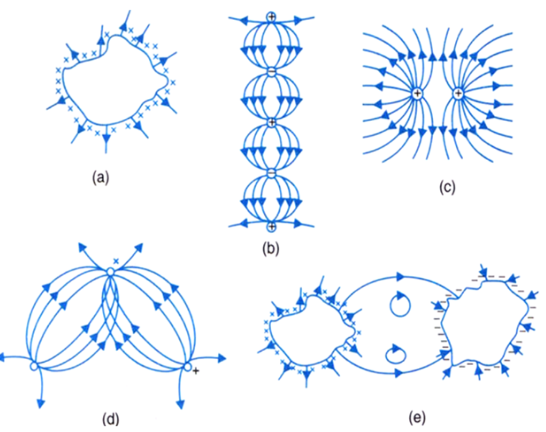

Which among the curves shown in Fig. 1.35 cannot possibly represent electrostatic field lines?
