Maths 5 Marks Questions

Bar Graph, Histogram and Frequency Polygon · Gujarat Board (GSEB) STD 9 (GSEB - English Medium). 15 questions.

Questions

5 Marks Questions

🎯

Test yourself on this topic

15 questions · timed · auto-graded

Question 15 Marks

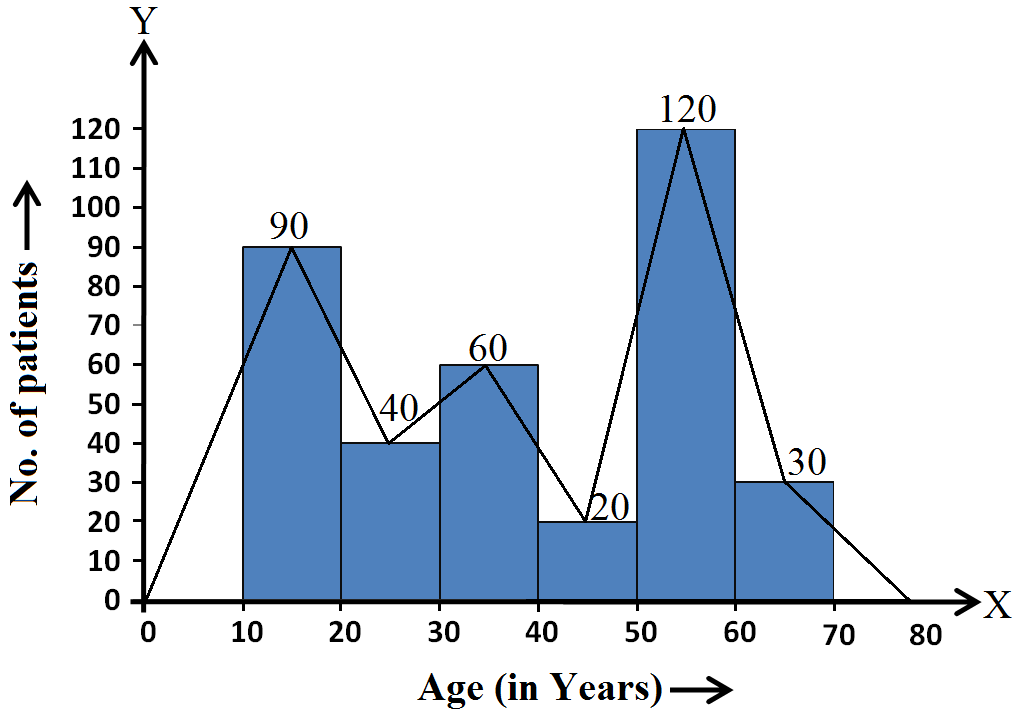

The ages (in years) of 360 patients treated in a hospital on a particular day are given below:
Age in years
10-20
20-30
30-40
40-50
50-60
60-70
Number of patients
90
40
60
20
120
30
Draw a histogram and a frequency polygon on the same graph to represent the above data.
Answer
View full question & answer→
Question 25 Marks

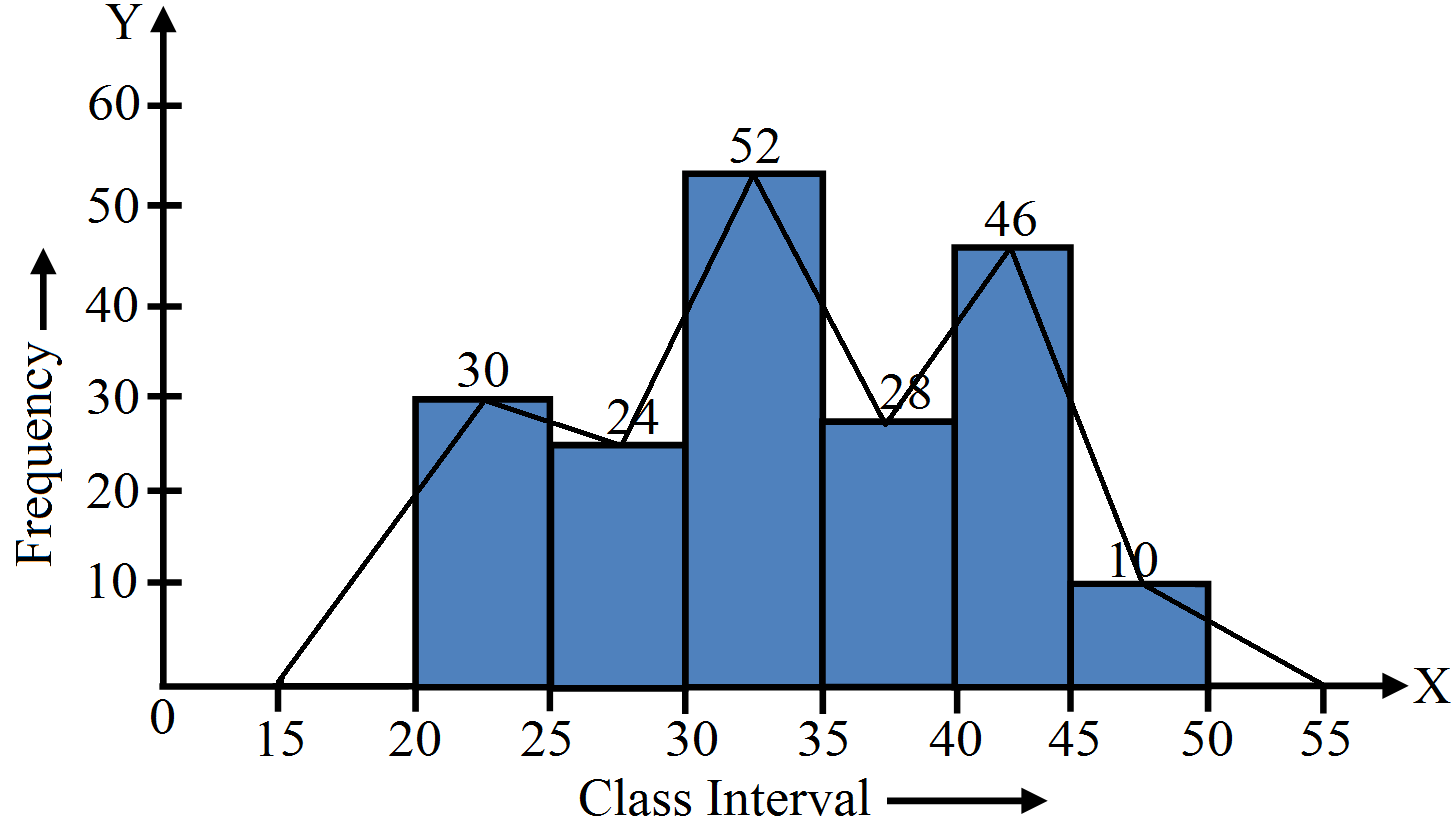

Draw a histogram and the frequency polygon from the following data:
Class interval
20-25
25-30
30-35
35-40
40-45
45-50
Frequency
30
24
52
28
46
10
Answer
View full question & answer→
Question 35 Marks
The daily wages of 50 workers in a factory are given below:
Daily wages (in Rs.)
340-380
380-420
420-460
460-500
500-540
540-580
Number of workers
16
9
12
2
7
4
Construct a histogram to represent the above frequency distribution.
Answer
Given frequency distribution is below:
Daily wages (in Rs.)
340-380
380-420
420-460
460-500
500-540
540-580
Number of workers
16
9
12
2
7
4
In the class intervals, If the upper limit of one class limit of the next class, It known as the exclusive method of classification.
Clearly, the given frequency distribution is in the exclusive form.
To draw the required, take class intervals, i.e. daily wages (in Rs.) along x-axis and frequencies i.e. no of workers alongy-axisand draw rectangles. So, we get the reuiredhistogram.
Since the scale on x-axis starts at 340, a kink (break) is indicated near the origin to show that the graph is drawn to scale beginning at 340.
View full question & answer→
Question 45 Marks
Draw a histogram to represent the following data:
Class interval
10-14
14-20
20-32
32-52
52-80
Frequency
5
6
9
25
21
Answer
Given frequency distribution is as below:
Class interval
10-14
14-20
20-32
32-52
52-80
Freaquency
5
6
9
25
21
In the above table, class intervals are of unequal size, So we calcute the adjusted frequency by using the following formula: $\text{Adjusted Frequency}=\frac{\text{Minimum class sizex its frequaency}}{\text{Class size of this class}}$ Thus, the adjusted frequency table is:
Class intervalsfrequencyAdjusted Frequency
10-145$\frac{4}{4}\times5=5$
14-206$\frac{4}{6}\times6=4$
20-329$\frac{4}{12}\times9=3$
32-5225$\frac{4}{20}\times25=5$
52-8021$\frac{4}{28}\times21=3$

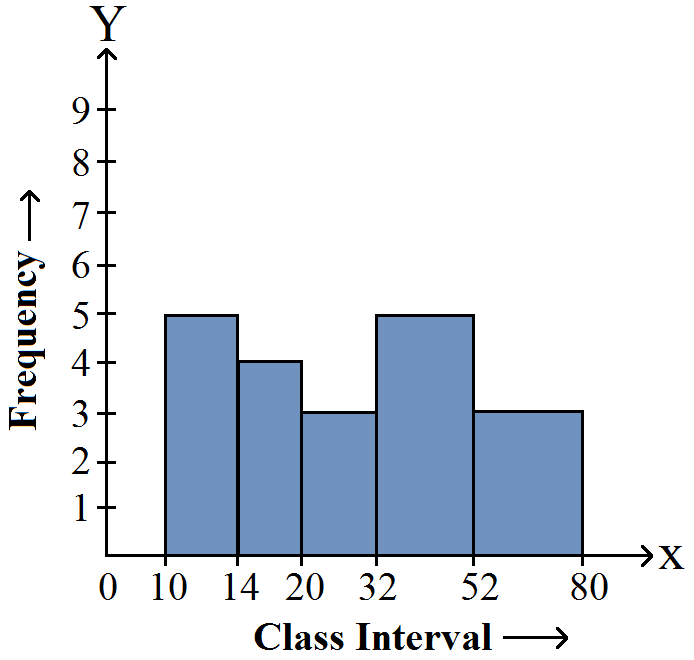

Now take class intervals along x-axis and adjusted frequency along y-axis and constant rectangles rectangles having their beses as class size and heights as the corresponding adjusted frequency. Thus, we obtain the histogram as shown below:
View full question & answer→
Question 55 Marks

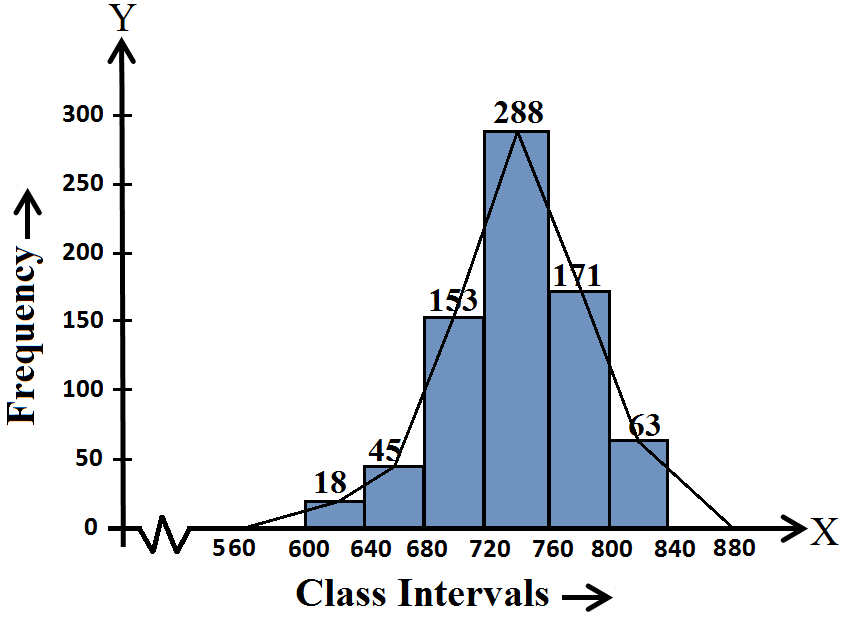

Draw a histogram for the follwoing data:
Class intervals
600-640
640-680
680-720
720-760
760-800
800-840
Frequency
18
45
153
288
171
63
Using this histrogram, draw the frequency polygon on the same graph.
Answer
View full question & answer→
Question 65 Marks
The following table shows the number of illiterate persons in the age group (10-58 years) in a town:
Age group (in years)
10-16
17-23
24-30
31-37
38-44
45-51
50-58
Number of illiterate persons
175
325
100
150
250
400
525
Draw a histogram to represent the above data.
Answer
Given frequency distribution is as below:
Age group (in years)
10-16
17-23
24-30
31-37
38-44
45-51
52-58
Number of illiterate persons
175
325
100
150
250
400
525
Histogram is the graphical representation of a frequency distrubution in the form of rectangles, such that there is no gap between any two successive rectangles. Clearly the given frequency distribution is in inclusive form, that is there is a gap between the upper limit of a class and the lower limit of the next class. Therefore, we need to convert the frequency distribution in exclusive form, as shown below:
Age group (in years)
9.5-16.5
16.5-23.5
23.5-30.5
30.5-37.5
37.5-44.4
44.5-51.5
51.5-58.5
Number of illiterate persons
175
325
100
150
250
400
525

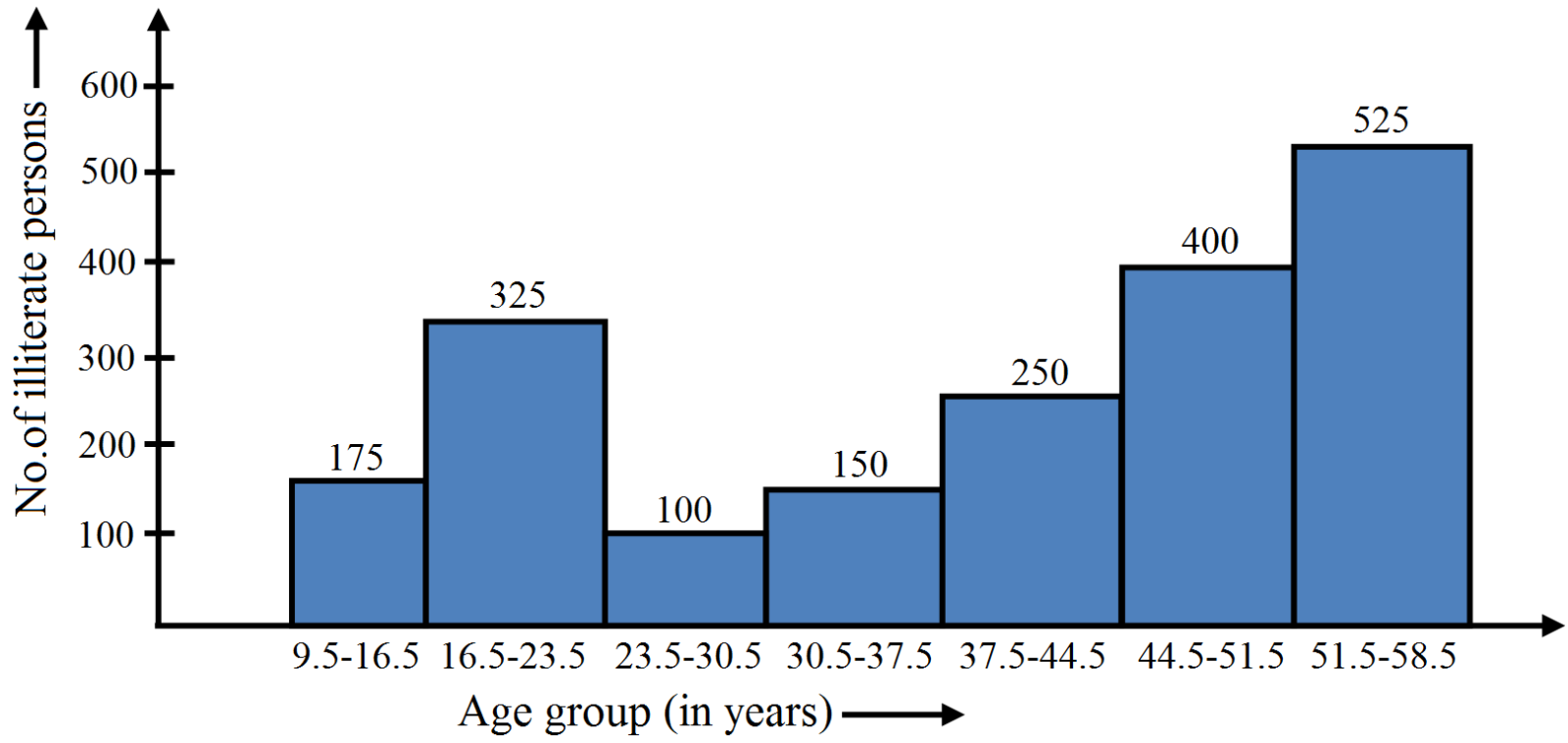

To draw the required histogram, take class intervals, that is age, along x-axis and frequencies, that is number of illiterate persions along y-axis draw rectangles. So, we get the required histogram. Since the scale on X-axis starts at 9.5, a kink (break) is indicated near the origin to show that graph is drawn to scale beginning at 9.5
View full question & answer→
Question 75 Marks

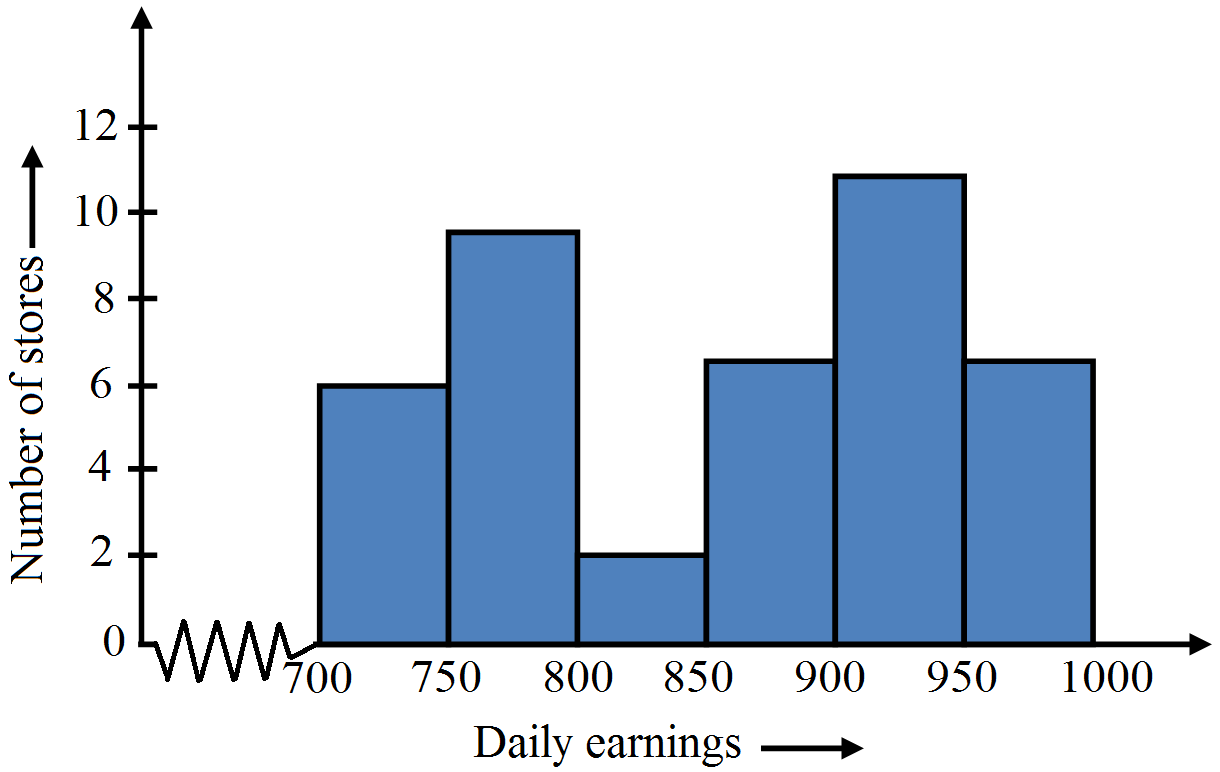

The follwoing table shows the average daily earnings of 40 general stores in a market, during a certain week.
Daily wages (in Rs.)
700-750
750-800
800-850
850-900
900-950
950-1000
Number of stores
6
9
2
7
11
5
Draw a histogram to represent the above data.
Answer
View full question & answer→
Question 85 Marks

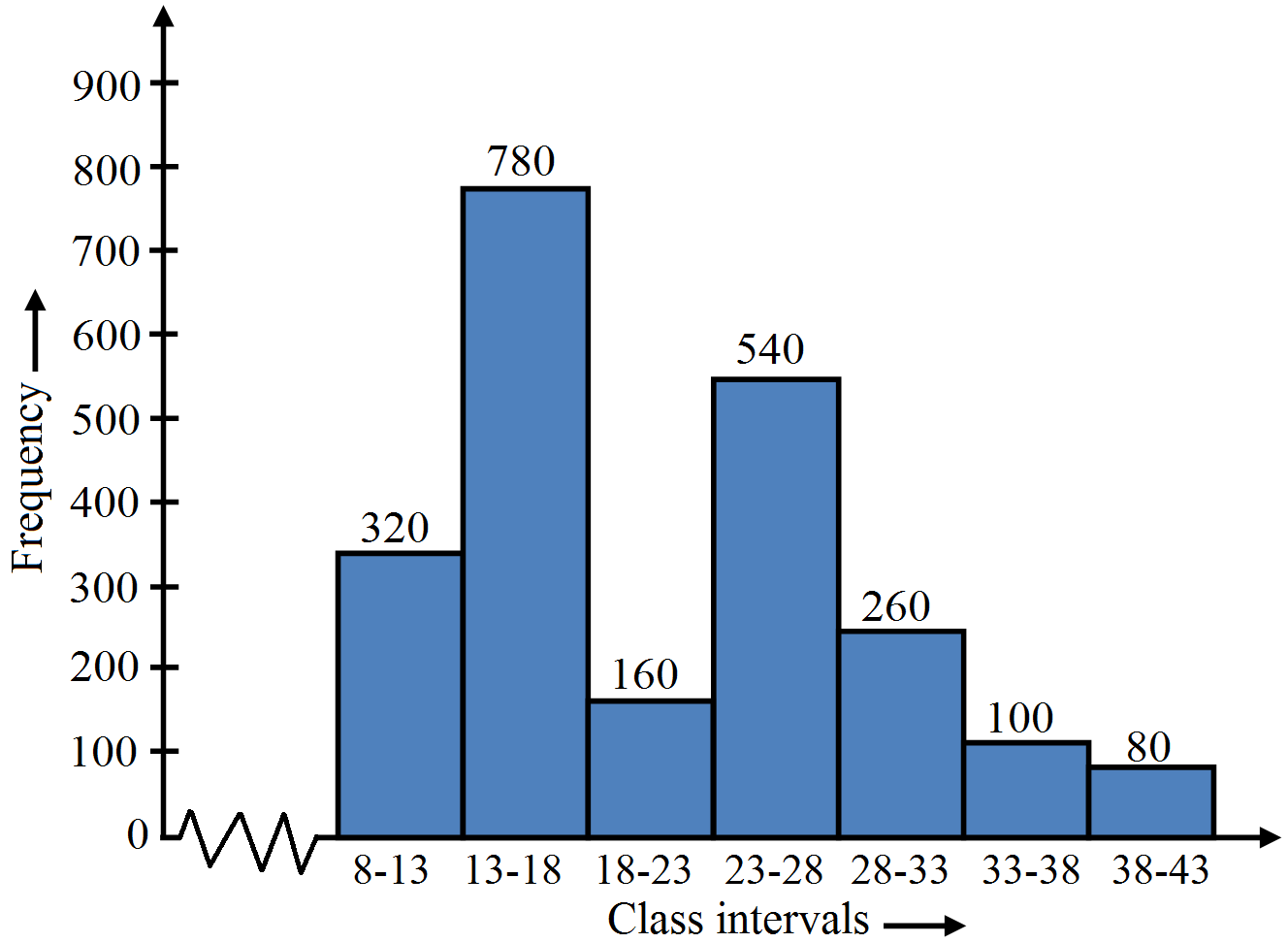

Draw a histogram for the frequency distribution of the following date:
Class interval
8-13
13-18
18-23
23-28
28-33
33-38
38-43
Frequency
320
780
160
540
260
100
80
Answer
View full question & answer→
Question 95 Marks

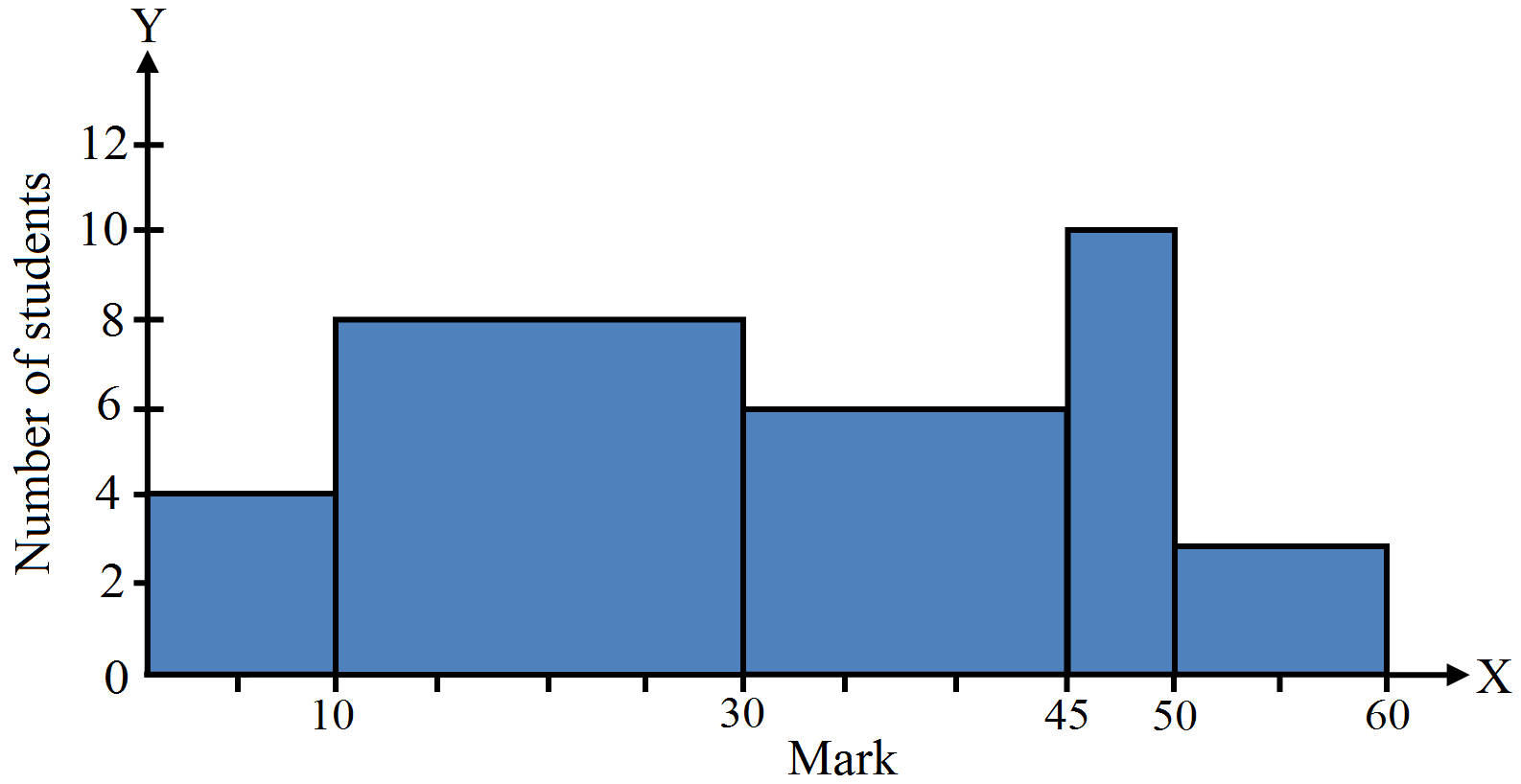

Draw a histogram to represnt the following information:
Marks
0-10
10-30
30-45
45-50
50-60
Number of student
8
32
18
10
6
Answer
Minimum class size = 50 - 45 = 5 Adjusted frequency of a class $=\frac{\text{Minimum class size}}{\text{Class size}}\times\text{Frequency of the class}$
MarksNumber of students (Frequency)Adjusted Frequency
0-108$\frac{5}{10}\times8=4$
10-3032$\frac{5}{20}\times32=8$
30-4518$\frac{5}{15}\times18=6$
45-5010$\frac{5}{5}\times10=10$
50-606$\frac{5}{10}\times6=3$
View full question & answer→
Question 105 Marks

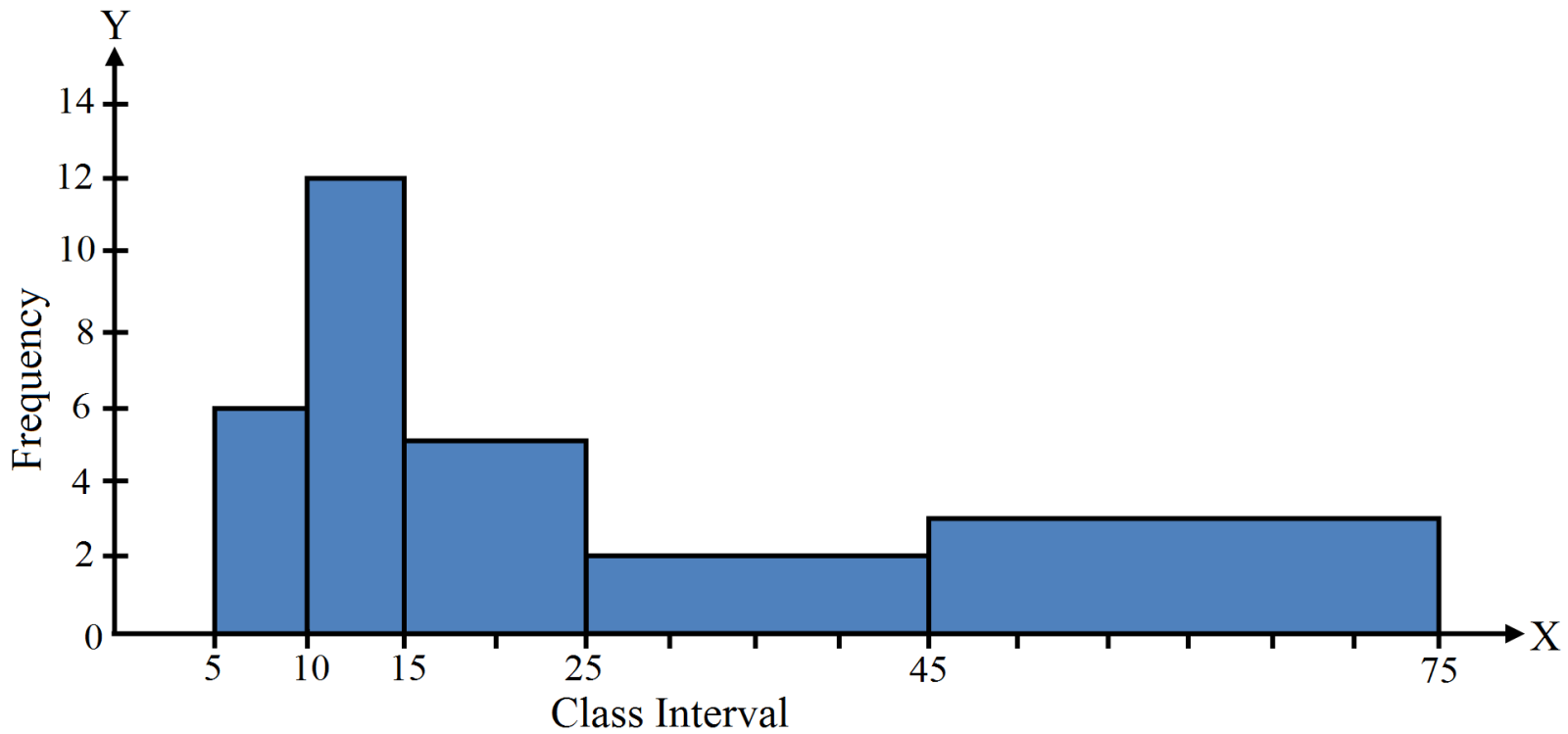

Draw a histogram to represent the following information:
Class interval
5-10
10-15
15-25
25-45
45-75
Frequency
6
12
10
8
18
Answer
Minimum class size = 10 - 5 = 5 Adjusted frequency of a class $=\frac{\text{Minimum class size}}{\text{Class size}}\times\text{Frequency of the class}$
class IntervalFrequencyAdjusted Frequency
5-106$\frac{5}{5}\times6=6$
10-1515$\frac{5}{5}\times12=12$
15-2510$\frac{5}{10}\times10=5$
25-458$\frac{5}{20}\times8=2$
45-7518$\frac{5}{30}\times18=3$
View full question & answer→
Question 115 Marks

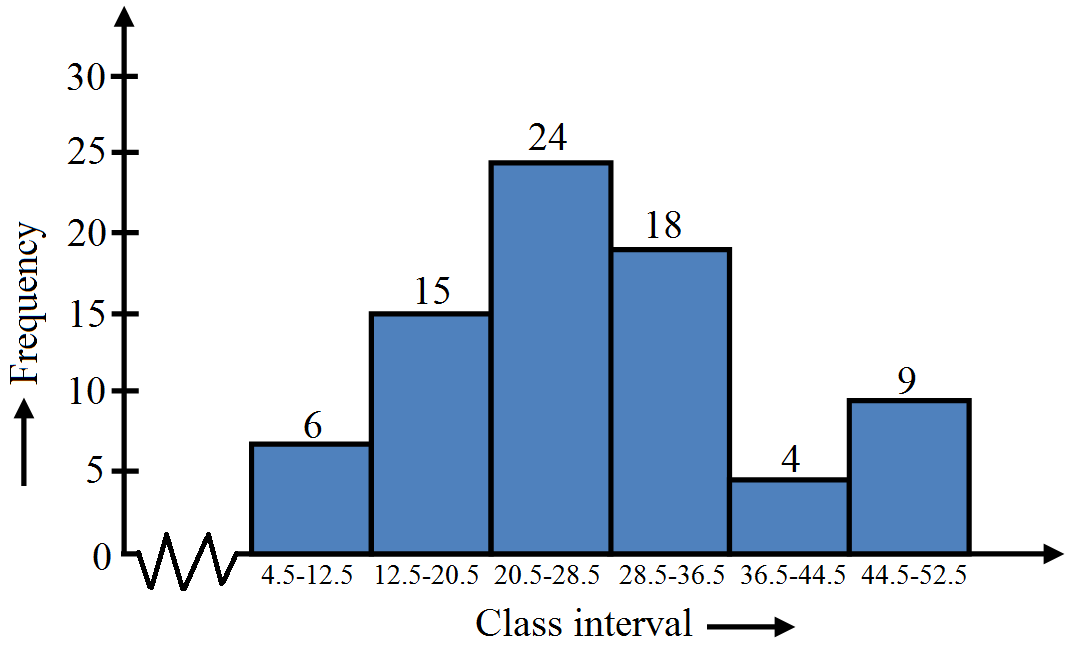

Construct a histogram for the following frequency distribution:
Class interval
5-12
13-20
21-28
29-36
37-44
45-52
Frequency
6
15
24
18
4
9
Answer
View full question & answer→
Question 125 Marks
Draw a frequency polygon for the following frequency distribution:
Class interval
1-10
11-20
21-30
31-40
41-50
51-60
Frequency
8
3
6
12
2
7
Answer
The given frequency distribution table is as below:
Class intervals
1-10
11-20
21-30
31-40
41-50
51-60
Frequency
8
3
6
12
2
7
This table has inclusive class intervals and so these are to be converted into exclusive class intervals (i.e true class limits). These are (0.5-10.5), (10.5-20.5), (20.5-30.5), (30.5-40.5), (40.5-50.5) and (50.5-60.5) In order to draw a frequency polygon, we need to determine to determine the class marks. Class marks of a class interval $=\frac{\text{Lower limit}+\text{upper limit}}{2}$ Take imaginary class interval (-9.5-0.5) at the beginning and (60.5-70.5) at the end, each with frequency zero. So, we have the following table
Class intervals
True class intervals
class marks
Frequency
(-9)-0
(-9.5)-0.5
-4.5
0
1-10
0.5-10.5
5.5
8
11-20
10.5-20.5
15.5
3
21-30
20.5-30.5
25.5
6
31-40
30.5-40.5
35.5
12
41-50
40.5-50.5
45.5
2
51-60
50.5-60.5
55.5
7
61-70
60.5-70.5
65.5
0

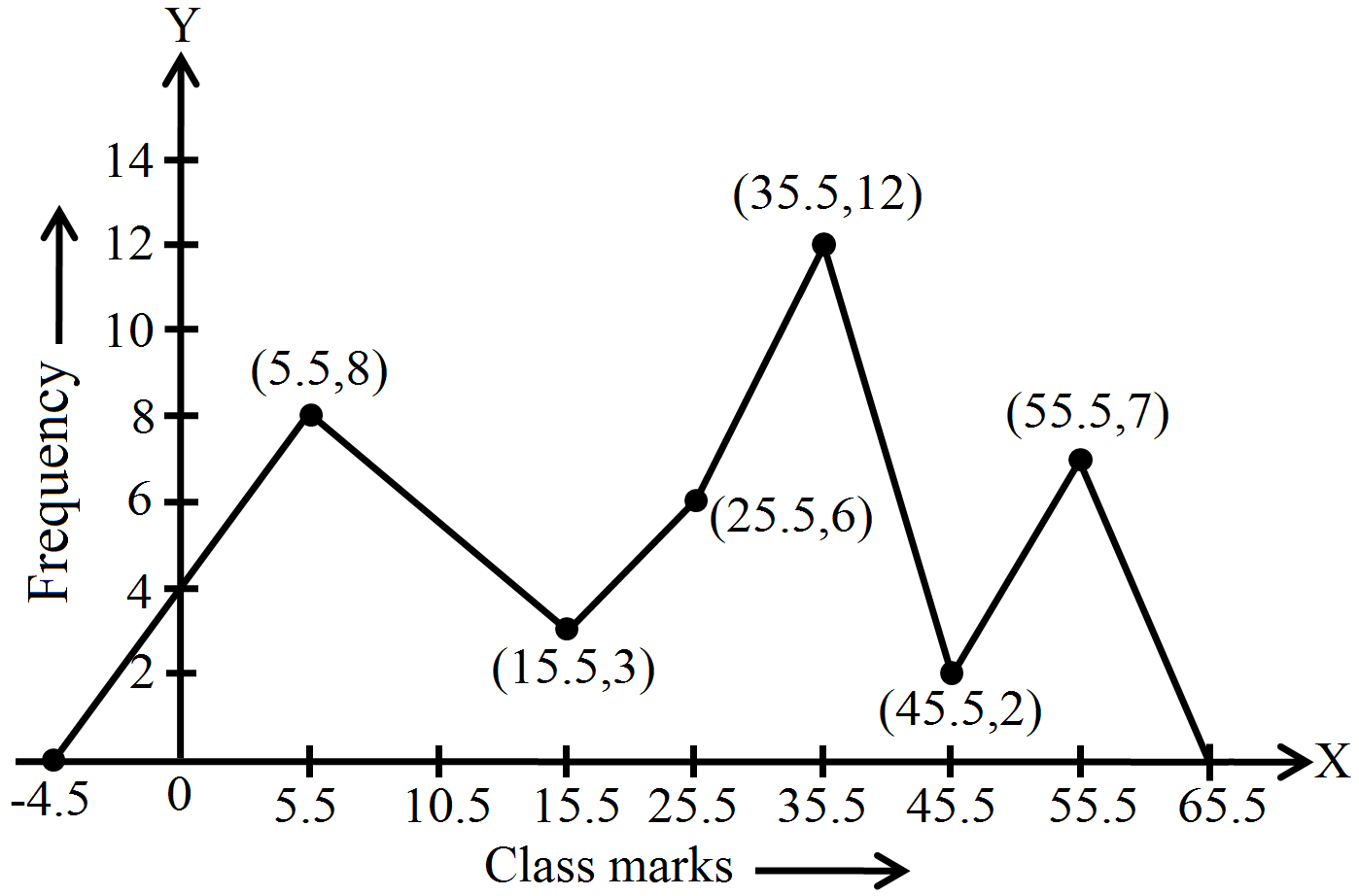

Now, take class marks along x-axis and their corresponding frequency along y-axis. Mark the points ans join them. Thus, we obtain a complete frequency polygon as shown below:
View full question & answer→
Question 135 Marks

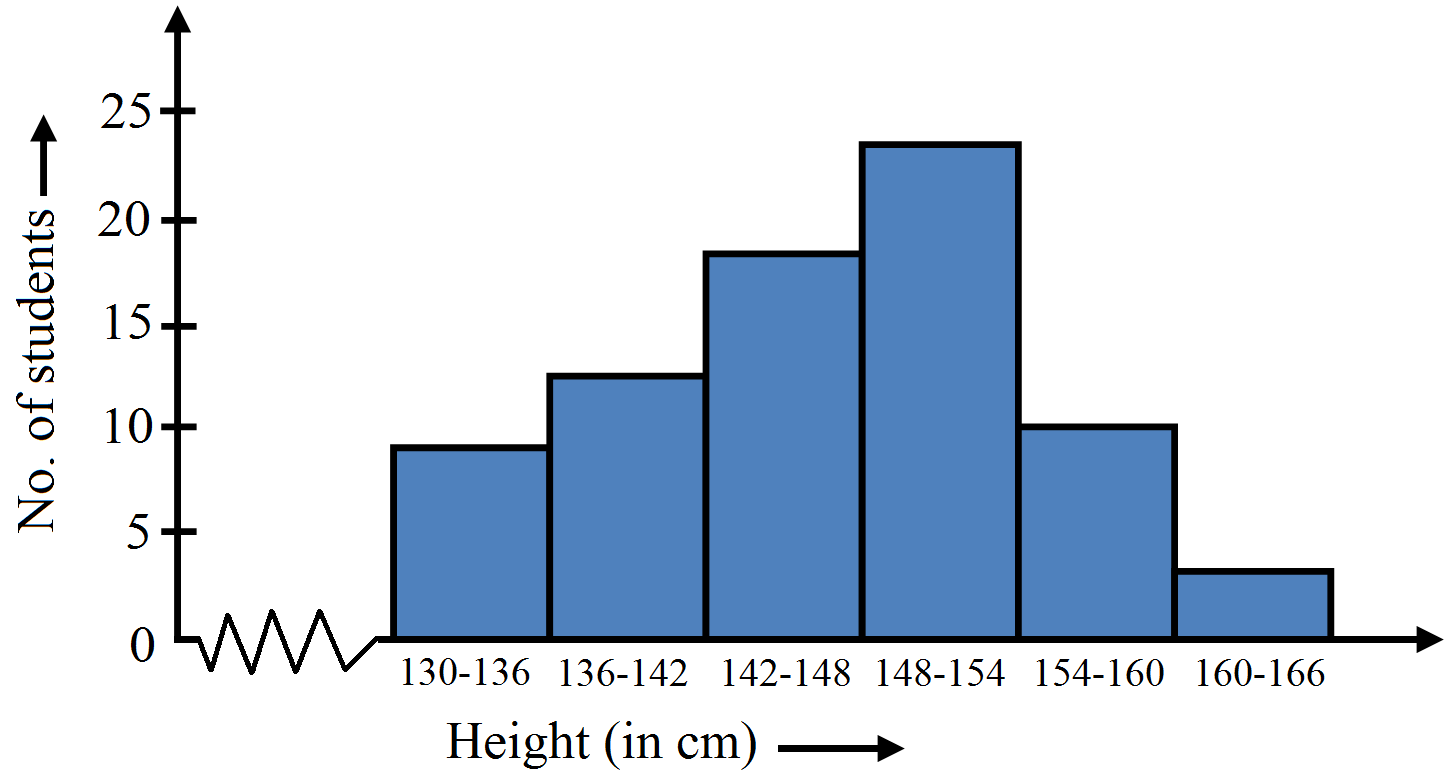

The heights of 75 students in a school are given below:
Height (in cm)
130-136
136-142
142-148
148-154
154-160
160-166
Number of students
9
12
18
23
10
3
Draw a histogram to represent the above data.
Answer
View full question & answer→
Question 145 Marks

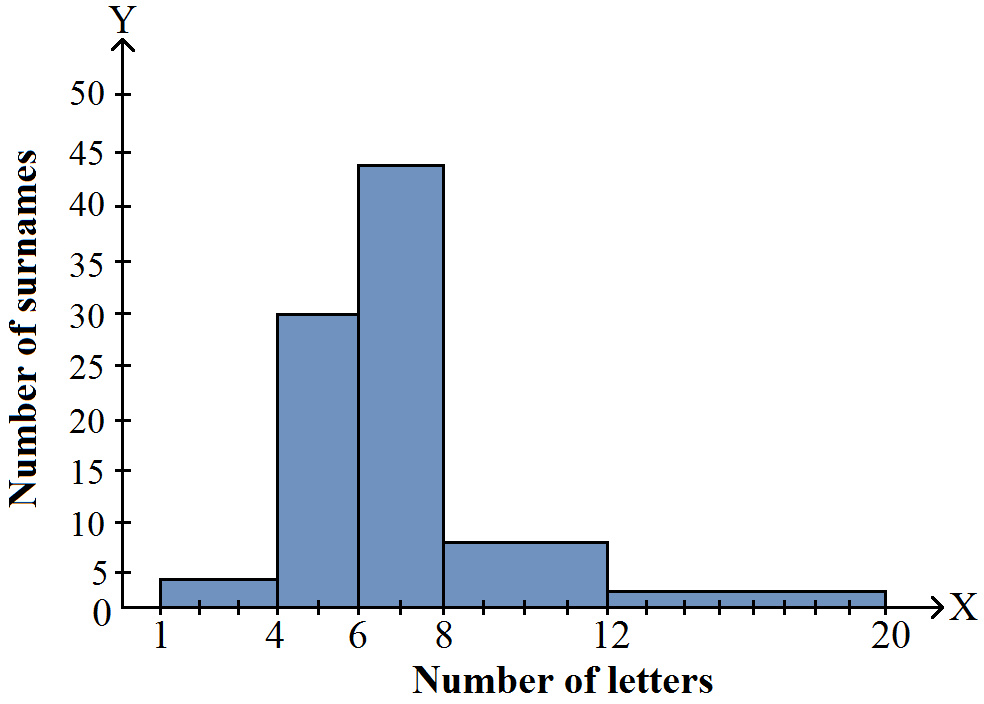

100 surnames were randomly picked up from a local telephone directory and frequency distribution of the number of letters in the English alphabet in the surnames was found as follows:
Number of letters
1-4
4-6
6-8
8-12
12-20
Number of surnames
6
30
44
16
4
  1. Draw a histogram to depict the given information.
  2. Write the class interval in which the maximum number of surnames lie.
Answer

  1. Minimum class size = 6 - 4 = 2

Adjusted frequency of a class $=\frac{\text{Minimum class size}}{\text{Class size}}\times\text{Frequency of the class}$

Number of letters

Number of surnames (Frequency)

Adjusted Frequency

1-4

6

$\frac{2}{3}\times6=4$

4-6

30

$\frac{2}{2}\times30=30$

6-8

44

$\frac{2}{2}\times44=44$

8-12

16

$\frac{2}{4}\times16=8$

12-20

4

$\frac{2}{8}\times4=1$

  1. Maximum number of surnames lies in the class interval 6-8.

View full question & answer→
Question 155 Marks
In a study of diabetic patients in a village, the following observations were noted.
Age in year
10-20
20-30
30-40
40-50
50-60
60-70
Number of patients
2
5
12
19
9
4
Represent the above data by a frequency polygon.
Answer
The given frequency distribution is as below:
Age in years
10-20
20-30
30-40
40-50
50-60
60-70
Number of patients
2
5
12
19
9
4
In order to draw, frequency polygon, we require class marks.The class mark of a class interval is $=\frac{\text{lower limit}+\text{upper limit}}{2}$The frequency distribution table with class marks is given below:
Marks
Number of students (Frequency)
Adjusted Frequency
0-10
5
0
10-20
15
2
20-30
25
5
30-40
35
12
40-50
45
19
50-60
55
9
60-70
65
4
70-80
75
0

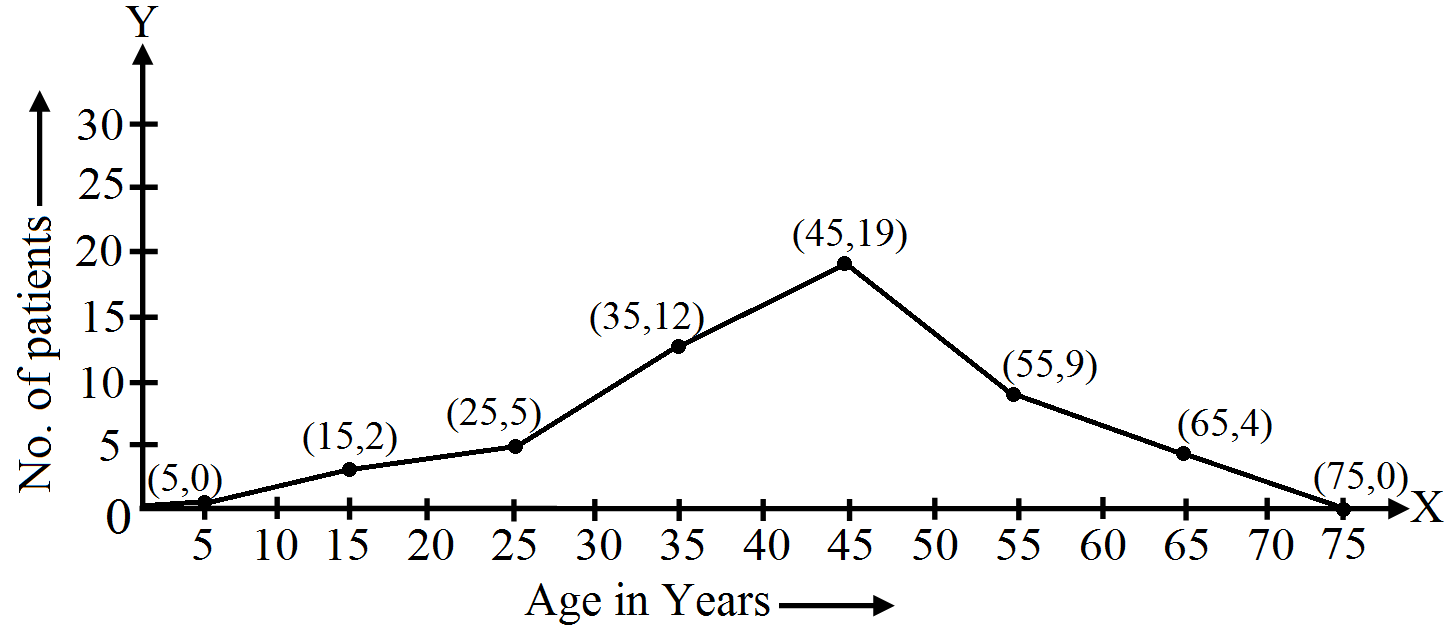

In the above table, we have taken imaginary class intervals 0-10 at beginning and 70-80 at the end, each with frequency zero. Now take class marks along x-axis and the corresponding frequencies along y-axis.plot points (5, 0), (15, 2), (25, 5), (35, 12), (55, 9), (65, 9) and draw line segments.
View full question & answer→
