2 Marks Questions

Question 12 Marks

Write the supplement of an angle of measure 2y°.

Answer

Let the required angle measures x°.
It is given that two angles measuring x° and 2y° are supplementary.
Therefore, their sum must be equal to 180°.
Or, we can say that:
x + 2y = 180
x = 180 - 2y
Hence, the required angle measures (180 - 2y)°

View full question & answer→

Question 22 Marks

Write the complement of an angle of measure x°.

Answer

We have to write the complement of an angle which measures x°.
Let the other angle be y°.
We know that the sum of the complementary angles be 90°.
Therefore,
x° + y° = 90°
y° = (90 - x)°

View full question & answer→

Question 32 Marks

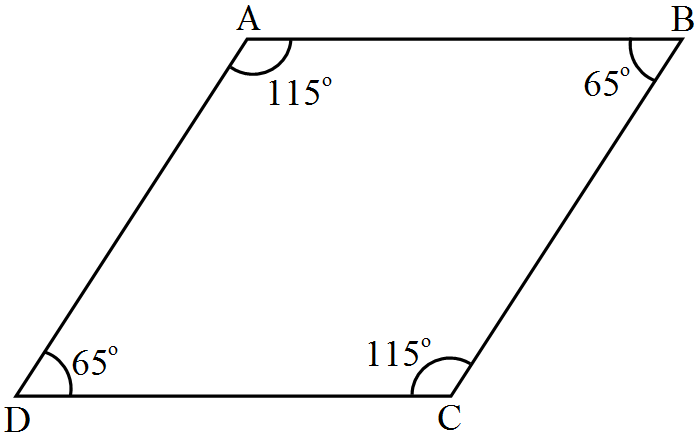

Which pair of lines in the below figure is parallel? Give reasons.

Answer

$\angle\text{A}+\angle\text{B}=115+65=180^\circ$
Therefore, AB || BC [As sum of co interior angles are supplementary]
$\angle\text{B}+\angle\text{C}=65+115=180^\circ$
Therefore, AB || CD [As sum of interior angles are supplementary]

View full question & answer→

Question 42 Marks

Two supplementary angles differ by 48°. Find the angles.

Answer

Let the measure of an angle x°.
$\therefore$ Its supplem entary will be (180 - x)°.
It is given that
(180 - x°) - x° = 48°
⇒ 180 - 2x = 48
⇒ 132 = 2x
⇒ x = 66°
Hence, 180 - x = 180 - 66 = 114°.
Therefore, angles are 66° and 114°.

View full question & answer→

Question 52 Marks

Two supplementary angles are in the ratio 4 : 5. Find the angles.

Answer

Let the angles be 4x and 5x.
It is given that they are supplem entary angles.
$\therefore$ 4x + 5x = 180
⇒ 9x = 180
⇒ x = 20°
Hence 4x = 80, 5x = 100
$\therefore$ Angle are 80° and 100°.

View full question & answer→

Question 62 Marks

The measure of an angle is twice the measure of its supplementary angle. Find its measure.

Answer

Let the measure of angle is x°.
$\therefore$ Its supplementary will be (180 - x)°.
It is given that
x° = 2(180 - x)°
⇒ x = 360 - 2x
⇒ 3x = 360
⇒ x = 120°
$\therefore$ The measure of angle is 120°.

View full question & answer→

Question 72 Marks

If an angle is 30° more than one half of its complement, find the measure of the angle.

Answer

Let the measure of the angle be x°.
$\therefore$ its complement will be (90 - x)°.
It is given that
Angle = 30° + $\frac{1}{2}$ complement
$\Rightarrow\ \text{x}^\circ+\frac{1}{2}(90-\text{x})^\circ$
$\Rightarrow\ \text{x}=\frac{60^\circ+90-\text{x}}{2}$
⇒ 2x = 60° + 90 - x
⇒ 3x = 150
⇒ x = 50
$\therefore$ Angle is 50°.

View full question & answer→

Question 82 Marks

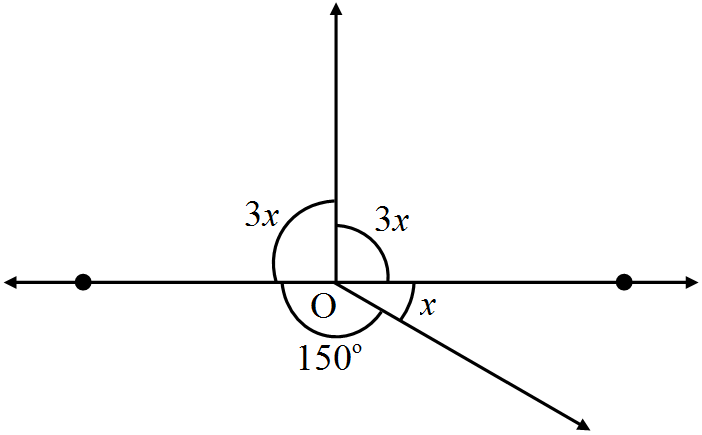

In figure, determine the value of x.

Answer

Since the sum of all the angles round a point is equal to 360°
3x + 3x + 150 + x = 360
7x = 360 - 150
7x = 210
$\text{x}=\frac{210}{7}$
x = 30
Value of x is 30°

View full question & answer→

Question 92 Marks

In figure, write all pairs of adjacent angles and all the linear pairs.

Answer

Adjacent angles are:

$\angle\text{AOD},\angle\text{COD}$
$\angle\text{BOC},\angle\text{COD}$
$\angle\text{AOD},\angle\text{BOD}$
$\angle\text{AOC},\angle\text{BOC}$

Linear pairs:

$\angle\text{AOD},\angle\text{BOD}$
$\angle\text{AOC},\angle\text{BOC}$

View full question & answer→

Question 102 Marks

In figure, three coplanar lines intersect at a point O, forming angles as shown in the figure. Find the values of x, y, z and u.

Answer

$\text{z}=\angle\text{BOD}=90^\circ$ [vertically opposite angle]
$\text{y}=\angle\text{DOF}=50^\circ$ [vertically oppposite angle]
Now,
x + y + z = 180°
⇒ x + 90° + 50° = 180°
⇒ x = 180° - 140° = 40°

View full question & answer→

Question 112 Marks

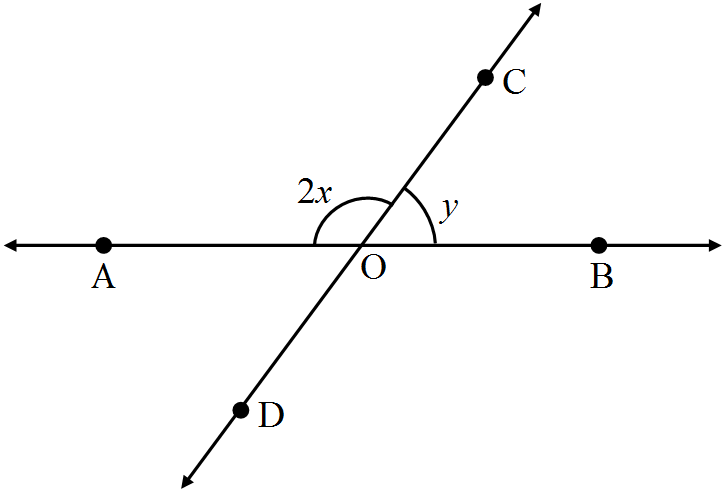

In figure, rays AB and CD intersect at O.
Determine y when x = 60°.

Answer

Here,
$\angle\text{AOC}+\angle\text{BOC}=180^\circ$ [linear pair]
⇒ 2x + y = 180° [linear pair]
⇒ 2 × 60° + y = 180°
⇒ y = 180° - 120° = 60°
$\therefore$ y = 60°

View full question & answer→

Question 122 Marks

In figure, rays AB and CD intersect at O.
Determine x when y = 40°.

Answer

Here,
$\angle\text{AOC}+\angle\text{BOC}=180^\circ$ [linear pair]
⇒ 2x + y = 180°
⇒ 2x + 40 = 180°
⇒ 2x = 180 - 40 = 140°
⇒ 2x = 140°
⇒ x = 70°

View full question & answer→

Question 132 Marks

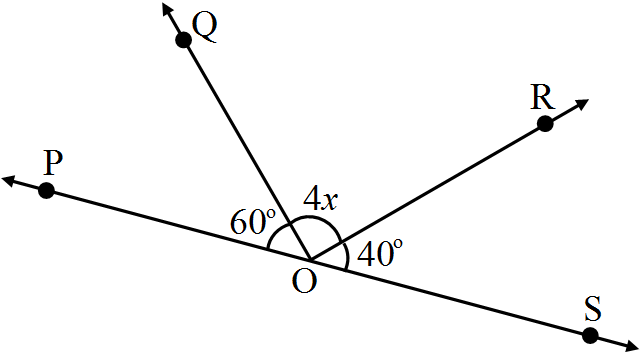

In figure, POS is a line, Find x.

Answer

Since $\angle\text{POQ}$ and $\angle\text{QOS}$ are linear pairs
$\angle\text{POQ}+\angle\text{QOS}=180^\circ$
$\angle\text{POQ}+\angle\text{QOR}+\angle\text{SOR}=180^\circ$
60 + 4x + 40 = 180
4x = 180 - 100
4x = 80
x = 20
Hence, Value of x = 20

View full question & answer→

Question 142 Marks

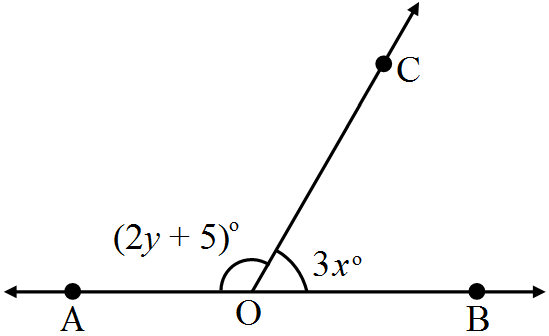

In figure, OA and OB are opposite rays:

If y = 35°, what is the value of x?

Answer

Given that,
y = 35°
$\angle\text{AOC}+\angle\text{BOC}=180^\circ$
(2y + 5) + 3x = 180
(2(35) + 5) + 3x = 180
(70 + 5) + 3x = 180
3x = 180 - 75
3x = 105
x = 35

View full question & answer→

Question 152 Marks

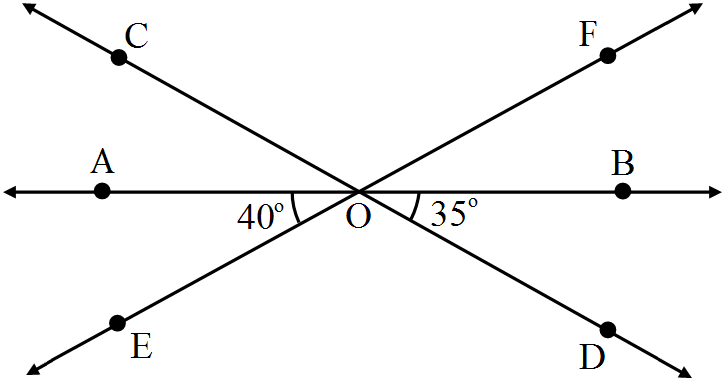

In figure, lines AB, CD and EF intersect at O. Find the measures of $\angle\text{AOC},\angle\text{COF},\angle\text{DOE}$ and $\angle\text{BOF}.$

Answer

$\angle\text{AOE}+\angle\text{DOE}+\angle\text{BOD}=180^\circ$ [linear pair]
$\Rightarrow\ \angle\text{DOE}=180^\circ-40^\circ-35^\circ=105^\circ$
$\angle\text{DOE}=\angle\text{COF}=105^\circ$ [vertically opposite angles]
Now,
$\angle\text{AOE}+\angle\text{AOF}=180^\circ$ [lineat pair]
$\Rightarrow\ \angle\text{AOE}+\angle\text{AOC}+\angle\text{COF}=180^\circ$
$\Rightarrow\ 40^\circ+\angle\text{AOC}+105^\circ=180^\circ $
$\Rightarrow\ \angle\text{AOC}=35^\circ$
Also,
$\angle\text{BOF}=\angle\text{AOE}=40^\circ$ [vertically opposite angles]

View full question & answer→

Question 162 Marks

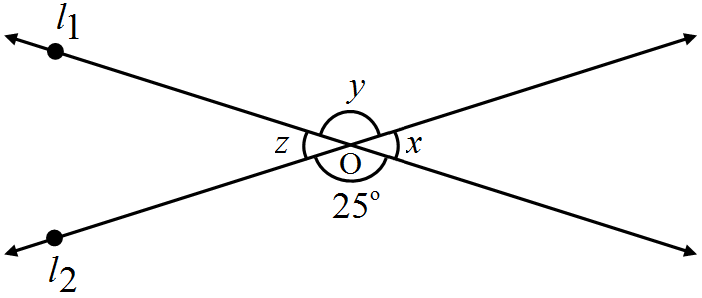

In figure, find the values of x, y and z.

Answer

From the given figure:
$\angle\text{y}=25^\circ$ [vertically opposite angle]
Now,
$\angle\text{x}+\angle\text{y}=180^\circ$ [linear pair]
$\Rightarrow\ \angle\text{x}=180^\circ-25^\circ$
$\Rightarrow\ \angle\text{x}=155^\circ$
Also,
$\angle\text{z}=\angle\text{x}=155^\circ$ [vertically opposite angle]
$\therefore \angle\text{y}=25^\circ$
$\angle\text{z}=\angle\text{x}=155^\circ$

View full question & answer→

Question 172 Marks

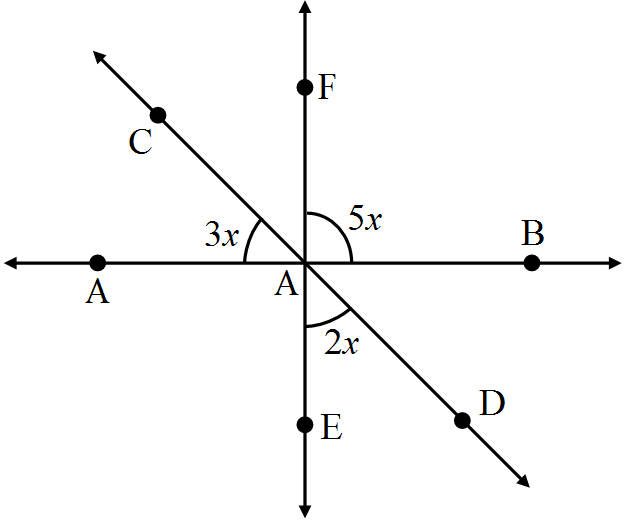

In figure, find the value of x.

Answer

$\angle\text{AOE}=\angle\text{BOF}=5\text{x}$ [vertically opposite angle]
$\angle\text{COA}+\angle\text{AOE}+\angle\text{EOD}=180^\circ$ [linear pair]
⇒ 3x + 5x + 2x = 180°
⇒ 10x = 180°
⇒ x = 18°

View full question & answer→

Question 182 Marks

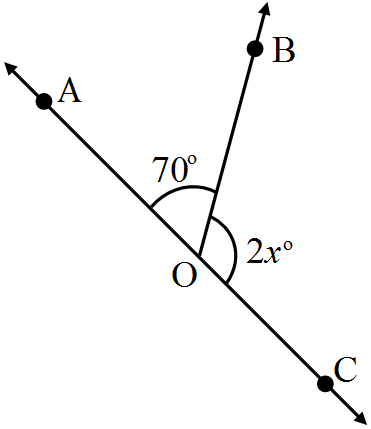

In figure, AOC is a line, find x.

Answer

Since $\angle\text{AOB}$ and $\angle\text{BOC}$ are linear pairs,
$\angle\text{AOB}+\angle\text{BOC}=180^\circ$
70 + 2x = 180
2x = 180 - 70
2x = 110
$\text{x}=\frac{110}{2}$
x = 55
Hence, the value of x is 55°

View full question & answer→

Question 192 Marks

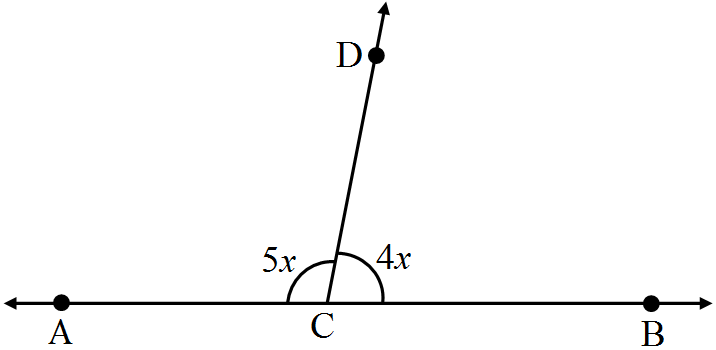

In figure, ACB is a line such that $\angle\text{DCA}=5\text{x}$ and $\angle\text{DCB}=4\text{x}.$ Find the values of $\angle\text{DCA}$ and $\angle\text{DCB}.$

Answer

It is given that ACB is a line in the figure given below.
Thus, $\angle\text{ACD}$ and $\angle\text{BCD}$ from a linear pair.

Therefore, their sum must be equal to 180°.
Or, we can say that
$\angle\text{ACD}+\angle\text{BCD}=180^\circ$
Also,
$\angle\text{ACD}=4\text{x}$ and $\angle\text{BCD}=5\text{x}.$ This further simplifies to:
4x + 5x = 180
9x = 180
$\text{x}=\frac{180}{9}$
x = 20
$\therefore\angle\text{DCA}=5\text{x}=5\times20^\circ=100^\circ$
$\angle\text{DCB}=4\text{x}=4\times20^\circ=80^\circ$
Hence, the values of $\angle\text{DCA}$ and $\angle\text{DCB}$ are 100° and 80° respectively.

View full question & answer→

Question 202 Marks

If the supplement of an angle is two-third of itself. Determine the angle and its supplement.

Answer

Let the measure of the angle be x°.
$\therefore$ its supplement will be (180 - x)°.
It is given that
$(180-\text{x})^\circ=\frac{2}{3}\text{x}^\circ$
$\Rightarrow\ 180-\text{x}=\frac{2}{3}\text{x}$
$\Rightarrow\ \frac{2}{3}\text{x}+\text{x}=180$
$\Rightarrow\ \frac{5}{3}\text{x}=180$
$\Rightarrow\ \text{x}=108^\circ$
Hence, supplement = 180 - 108 = 72°
$\therefore$ Angle will be 108° and its supplement will be 72°.

View full question & answer→

Question 212 Marks

If the supplement of an angle is three times its complement, find the angle.

Answer

Let the measure of the angle be x°.
$\therefore$ Its supplement will be (180 - x)°.
And its complement will be (90 - x)°.
It is given that
(180 - x)° = 3(90 - x)°
⇒ 180 - x = 270 - 3x
⇒ 2x = 90
⇒ x = 45
$\therefore$ The measure of the angle will be 45°.

View full question & answer→

Question 222 Marks

If the angles (2x - 10)° and (x - 5)° are complementary angles, find x.

Answer

Since the angles are complementry.
Theefore their sum will be 90°.
⇒ (2x - 10)° + (x - 5)° = 90°
⇒ 2x - 10 + x - 5 = 90
⇒ 3x = 105°
⇒ x = 35°

View full question & answer→

Question 232 Marks

If l, m, n are three lines such that l ∥ m and $\text{n}\perp\text{l},$ prove that $\text{n}\perp\text{m}.$

Answer

Given, l || m, $\text{n}\perp\text{l}$
To prove: $\text{n}\perp\text{m}$
Since l || m and n intersects
$\therefore\ \angle{1}=\angle{2}$ [Corresponding angles]
But, U = 90
$\Rightarrow\ \angle{2}=90^\circ$
Hence n is perpendicular to m.

View full question & answer→

Question 242 Marks

If an angle is 28° less than its complement, find its measure.

Answer

Let the measure of the angle be x°.
$\therefore$ Its complement will be (90 - x)°
It is given that
Angle = complement - 28°.
$\therefore$ x° = (90 - x)° - 28°
⇒ 2x° = 62°
⇒ x = 31°
$\therefore$ Angle measure dis 31°.

View full question & answer→

Question 252 Marks

If an angle differs from its complement by 10°, find the angle.

Answer

Let the measure of the angle be x°.
$\therefore$ its complement will be (90 - x)°.
It is given that
x° - (90 - x)° = 10°
⇒ x - 90 + x = 10
⇒ 2x = 100
⇒ x = 50
$\therefore$ The measure of the angle will be 50°.

View full question & answer→

Question 262 Marks

How many pairs of adjacent angles are formed when two lines intersect in a point?

Answer

Four pairs of adjacent angles will be formed when two lines intersect at a point. Considering two lines AB and CD intersecting at O.
The 4 pairs are:
$(\angle\text{AOD},\angle\text{DOB})$
$(\angle\text{DOB},\angle\text{BOC})$
$(\angle\text{COA},\angle\text{AOD})$
And $(\angle\text{BOC},\angle\text{COA})$
Hence, 4 pairs of adjacent angles are formed when two lines intersect at a point.

View full question & answer→

Question 272 Marks

An angle is equal to 8 times its complement. Determine its measure.

Answer

Let the measure of an angle be x°.
Therefore, its complement will be (90 - x)°.
It is given that
⇒ x° = 8(90 - x)°
⇒ x = 720 - 8x
⇒ 9x = 720
⇒ x = 80
Therefore, the measure of the angles is 80°

View full question & answer→

Question 282 Marks

An angle is 14° more than its complementary angle. What is its measure?

Answer

Let the angle measures x°.
Therefore, the measure of its complement becomes (90 - x)°
According to the given statement, the angle is 14 more than its complement.
Thus, we have,
x = 14 + (90 - x)
x = 104 - x
x + x = 104
2x = 104
$\text{x}=\frac{104}{2}$
x = 52
The measure of its complement becomes
90 - x = 90 - 52
= 38
Hence, the required angle measures 52° and its complement measures 38°.

View full question & answer→
