Force — Physics STD 10 — Question

ICSE BoardEnglish MediumSTD 10PhysicsForce3 Marks
Question
A uniform circular motion is an accelerated motion explain it. State whether the acceleration is uniform or variable? Name the force responsible to cause this acceleration. What is the direction of force at any instant? Draw diagram in support of your answer.
✓

Answer

When the object moves in a circular path with uniform speed, it means that its magnitude of velocity does not change, only its direction changes continuously. Hence, it is considered as uniformly accelerated motion.In a uniform circular motion, the acceleration is variable.

An object in uniform circular motion experiences an inward net force. This force is called centripetal force.
The centripetal force is directed towards the center of the circular path.

Direction of force in uniform circular motion

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "[3 Mark Question Answer]" from Force→Force — all question types→Physics STD 10 question papers→ICSE Board STD 10 question papers→ICSE Board question paper generator→

Similar questions

A piece of ice is heated at a constant rate. The variation of temperature with heat input is shown in the graph below:

(i) What are represented by AB and CD?
(ii) What conclusion can you draw regarding the 110°c nature of ice from the above graph?
→
(i) Draw a ray diagram to show how the lens can be used as a ‘magnifying glass’? State the nature of the lens.
(ii) In what respect does the image in (i) above different from the image formed by a concave lens?
→

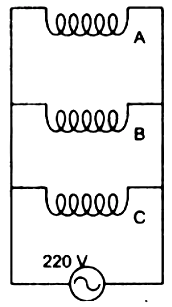

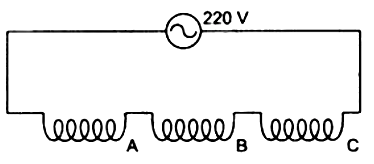

The diagram shows two ways of connecting three lamps P, Q and R to A.C. supply of 220 V.


Name the two arrangements. Which of them would you prefer in a household circuit? Give a reason for your answer.
→
An electric filament lamp is connected to a supply of voltage higher than the recommended value. Give reasons, why compared with a normal performance, the lamp emits a brighter light and its life is shortened.
→
What are infrared radiations? How are they detected? State one use of these radiations.
→
A coil of copper wire is connected to a galvanometer. What would happen if a bar magnet is:
(i) Pushed into the coil with its north pole entering first?
(ii) Held at rest inside the coil?
(iii) Pulled out again?
→
A ray of light is incident on a glass surface at an angle of $50^\circ $ with the corresponding angle of refraction $30^\circ $. Find the value of the R.I. of glass.
→
A man uses a crowbar of length 1.5 m to raise a load of 75 kgf by putting a sharp edge below the bar at a distance 1 m from his hand. Draw a diagram of the arrangement showing the fulcrum (F), load (L) and effort (E) with their directions. State the kind of lever. Calculate: (1) load arm, (2) effort arm, (3) mechanical advantage and (4) the effort needed.
→
Define power.
→
The arms of a beam balance are 20 cm and 21 cm, but the pans are of equal weight. By the method of double weighing the weights are found to be 1000 g and 20 g. Find the actual weight of the body
→
