Aparallel-plate capacitor is connected to a cell. Its positive plate $A$ and its negative plate $B $ have charges $+Q$ and $-Q$ respectively. A third plate $C$, identical to $A$ and $B$, with charge $+Q$, is now introduced midway between $ A$ and $B$, parallel to them. Which of the following are correct?
  • A
    The charge on the inner face of $B$  is now $ - \frac{{3Q}}{2}$
  • B
    There is no change in the potential difference between $A$ and $B$.
  • C
    The potential difference between $A$ and $C$ is one-third of the potential difference between $B$ and $C$.
  • ✓
    all of the above
✓

Answer

Correct option: D.
all of the above
d

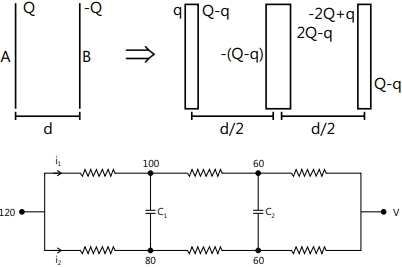

Now the charge on outer surfaces should be same

$q=Q-q \Rightarrow q=Q / 2$

So $(A)=-2 Q+Q / 2=-3 Q / 2$

Charge on $\mathrm{A}=\mathrm{Q} / 2$ and charge on $\mathrm{B}=3 \mathrm{Q} / 2$

So as $E \propto Q$ and $V \propto E \Rightarrow V \propto Q$

and hence $C$ is correct.
