Question
Define power of lens, obtain its equation and write its unit.
✓
Answer
→Power of a lens is a measure of the convergence or divergence, which a lens introduces in the light falling on it.
→Clearly, a lense of shorter focal length bend the incident light more, while converging it in case of a convex lens and diverging it in case of a concave lens.
→"The tangent of the angle by which it converges or diverges a beam of light parallel to the principal axis falling at unit distance from the optical centre is defined as the power P of a lens."
→From figure, $\tan \delta=\frac{h}{f}$;
if $h=1$ then $\tan \delta=\frac{1}{f}$ or $\delta=\frac{1}{f}$
for small value of $\delta$. Thus
power $P =\frac{1}{f}$
→The SI unit for power of a lens is dioptre (D). $\therefore \quad 1 D =1 m^{-1}$.
→Power of a lens is positive for a convex lens and negative for a concave lens.
→When an optician prescribes a corrective lens of power +2.5 D , the required lens is a convex lens of focal length +40 cm . A lens of power of -4.0 D means a concave lens of focal length -25 cm .
→Clearly, a lense of shorter focal length bend the incident light more, while converging it in case of a convex lens and diverging it in case of a concave lens.
→"The tangent of the angle by which it converges or diverges a beam of light parallel to the principal axis falling at unit distance from the optical centre is defined as the power P of a lens."
→From figure, $\tan \delta=\frac{h}{f}$;
if $h=1$ then $\tan \delta=\frac{1}{f}$ or $\delta=\frac{1}{f}$
for small value of $\delta$. Thus
power $P =\frac{1}{f}$
→The SI unit for power of a lens is dioptre (D). $\therefore \quad 1 D =1 m^{-1}$.
→Power of a lens is positive for a convex lens and negative for a concave lens.
→When an optician prescribes a corrective lens of power +2.5 D , the required lens is a convex lens of focal length +40 cm . A lens of power of -4.0 D means a concave lens of focal length -25 cm .
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Two metallic wires A and B made from same substance have equal lengths and their cross-sections are in the ratio $1: 2$. They are joined in (i) series (ii) parallel. In both the above combinations, compare the drift velocities of electrons in the two wires.
→Define equipotential surface. Write its characteristics.
Find the area bounded by the curve y = e-x, the X-axis and the Y-axis.
What is electromagnetic wave? How is its speed is related with permittivity and permeability of the medium?
What is the average value of ac voltage
$\text{V = V}_0\sin\omega\text{t}$
Over the time interval t = 0 to $\text{t}=\frac{\pi}{\omega}.$
→$\text{V = V}_0\sin\omega\text{t}$
Over the time interval t = 0 to $\text{t}=\frac{\pi}{\omega}.$
Figure shows a 2.0 V potentiometer used for the determination of internal resistance of a 1.5 V cell. The balance point of the cell in open circuit is 76.3 cm. When a resistor of $9.5\ \Omega$ is used in the external circuit of the cell, the balance point shifts to 64.8 cm length of the potentiometer wire. Determine the internal resistance of the cell.
→A current of 10A is established in a long wire along the positive z-axis. Find the magnetic field $\overrightarrow{\text{B}}$ at the point (1m, 0, 0).
→Explain the reflection of a plane wave using Huygen's principle.

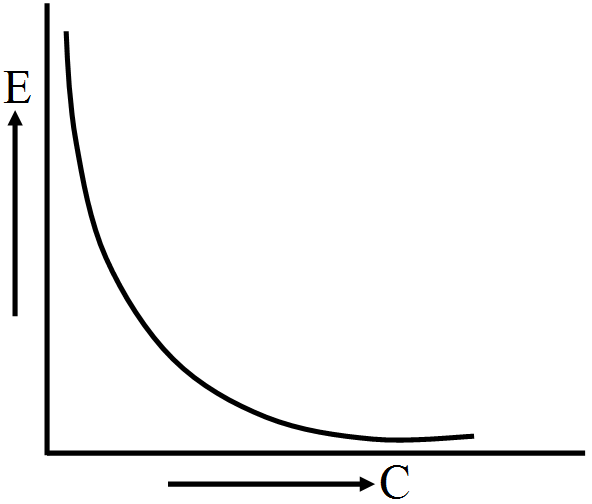

The graph shown here shows the variation of total energy (E) stored in a capacitor against the value of the capacitance (C) itself. Which of the two: the charge on capacitor or the potential used to charge it, is kept constant for this graph?
