How would you set up a circuit to obtain NOT gate using a transistor?
✓

Answer

  1.  It has only one input and only one output.
  2. Boolean expression is Y = Ᾱ and is read as "y equals not A".Logical symbol of NOT gate.

  1. Realization of NOT gate: The transistor is so biased that the collector voltage VCC = V (Voltage corresponding to 1 state).

The resistors R and RB are so chosen that if the input is low, i.e. 0, the transistor is in the cut off and hence the voltage appearing at the output will be the same as applied V = 5V. Hence Y = V(or state I).

If the input is high, the transistor current is in saturation and the net voltage at the output Y is 0 (in state 0).

  1. Truth table for not gate:
AY = Ᾱ
01
10

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Semiconductor Electronic: Material, Devices And Simple Circuits→Semiconductor Electronic: Material, Devices And Simple Circuits — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

Two small balls, each of mass m are connected by a light rigid rod of length L. The system is suspended from its centre by a thin wire of torsional constant k. The rod is rotated about the wire through an angle $\theta_0$ and released. Find the tension in the rod' as the system passes through the mean position.

→
Five long wires A, B, C, D and E, each carrying current I are arranged to form edges of a pentagonal prism as shown in Fig. Each carries current out of the plane of paper.

  1. What will be magnetic induction at a point on the axis O? Axis is at a distance R from each wire.
  2. What will be the field if current in one of the wires (say A) is switched off?
  3. What if current in one of the wire (say) A is reversed?
→
A square loop PQRS carrying a current of 6.0A is placed near a long wire carrying 10A as shown in figure.

  1. Show that the magnetic force acting on the part PQ is equal and opposite to that on the part RS.
  2. Find the magnetic force on the square loop.

→
A plane electromagnetic wave travels in vacuum along z - direction. What can you say about the directions of its electric and magnetic field vectors? If the frequency of the wave is 30 MHz, what is its wavelength?
→

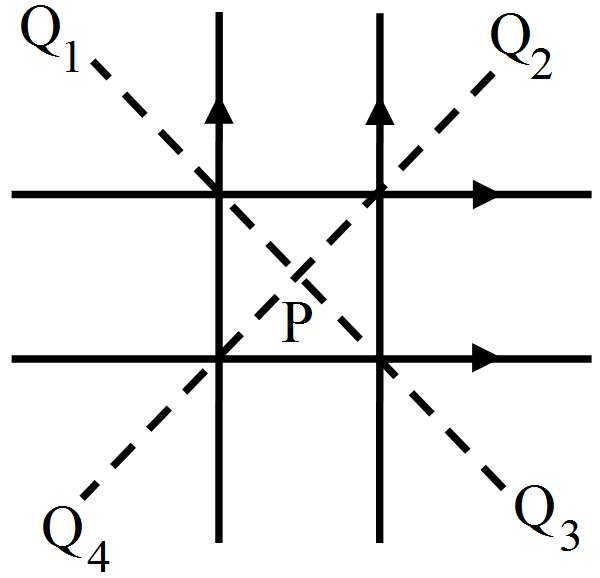

Four long, straight wires, each carrying a current of 5.0A, are placed in a plane as shown in figure. The points of intersection form a square of side 5.0cm.

  1. Find the magnetic field at the centre P of the square.
  2. Q1, Q2, Q3, and Q4 are points situated on the diagonals of the liquare and at a distance from P that is equal to the length of the diagonal of the square. Find the magnetic fields at these points.

→
A vessel of volume 125cm3 contains tritium $\big(\text{ }^3\text{H,t}_{\frac{1}{2}}=12.3\text{y}\big)$ at 500 kPa and 300K. Calculate the activity of the gas.
→
The first four spectral lines in the Lyman serics of a H-atom are λ = 1218Å, 1028Å, 974.3Å and 951.4Å. If instead of Hydrogen, we consider Deuterium, calculate the shift in the wavelength of these lines.
→
  1. Two straight long parallel conductors carry currents I1 and I2 in the same direction. Deduce the expression for the force per unit length between them.

Depict the pattern of magnetic field lines, around them.

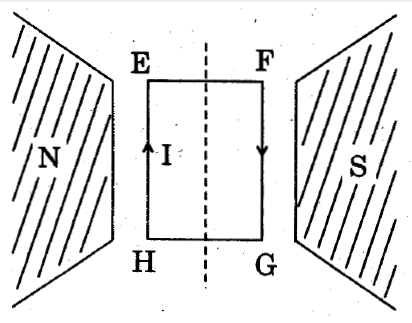

  1. A rectangular current carrying loop EFGH is kept in a uniform magnetic field as shown in the figure.
