MCQ

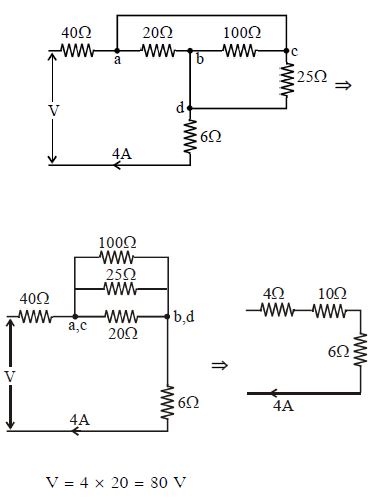

In given circuit find value of ................... $V$
- A$50$
- ✓$80$
- C$100$
- D$1290$
✓
Answer
Correct option: B.
$80$
b
