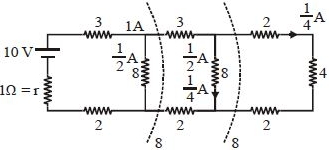

In the circuit shown, the cell has $emf = 10\,V$ and internal resistance $= 1\, \Omega$ :-
  • AThe current through the $3\, \Omega$ resistor is $2\,A$
  • BThe corrent through the $3\, \Omega$ resistor is $0.5\,A$
  • CThe current through the $4\, \Omega$ resistor is $0.5\,A$
  • DThe current through the $4\, \Omega$ resistor is $0.25\,A$
Diffcult
