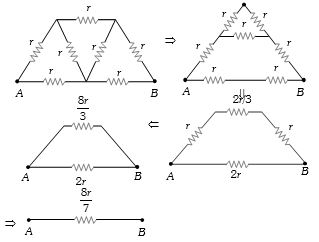

In the circuit shown, the value of each resistance is $r$, then equivalent resistance of circuit between points $A$ and $B$ will be
AIPMT 1990, Medium
