Question
Name the following diagrams and explain the concept behind them:
✓
Answer

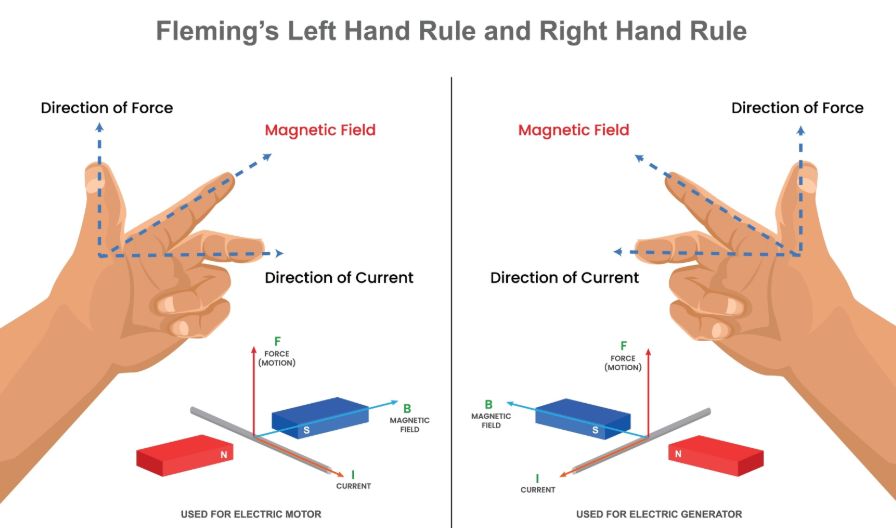

Diagram a:Fleming's Left Hand Rule.
Concept: It is used to determine the direction of force on a conductor in a magnetic field. The thumb points to the force, the index finger to the magnetic field, and the middle finger to the current.
Diagram b: Fleming's Right Hand Rule.
Concept: It is used to determine the direction of induced current. The thumb points to the motion of the conductor, the index finger to the magnetic field, and the middle finger to the induced current.
