Prove that the path of a projectile is a parabola. - Vidyadip

Question

Prove that the path of a projectile is a parabola.

✓

Answer

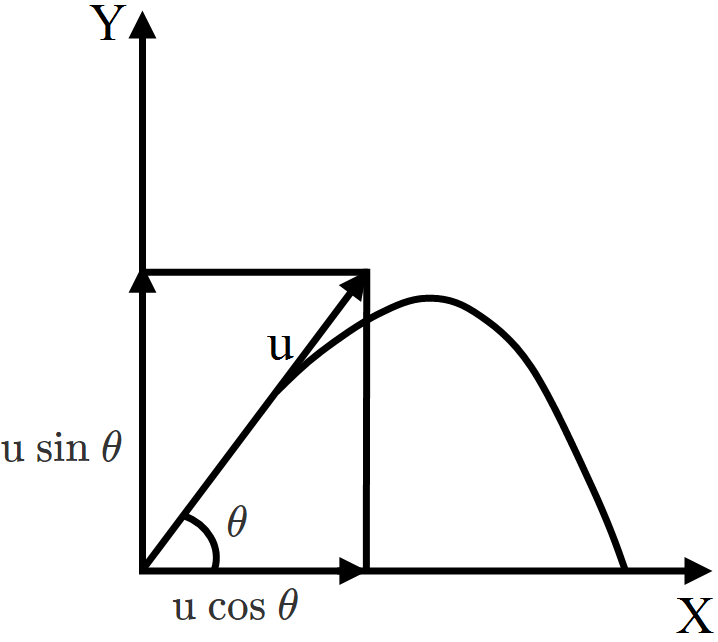

Consider a projectile thrown at an angle $\theta$ with a velocity u. The components of velocity horizontal and vertical are $\text{u}\cos\theta$ and $\text{u}\sin\theta.$ After time t, the horizontal displacement $\text{x}=\text{u}\cos\theta\text{t}$

The vertical displacement,

$\text{y}=\text{u}\sin\theta\text{ t}-\frac{1}{2}\text{gt}^2$

$\therefore\ \text{y}=\text{u}\sin\theta.\Big(\frac{\text{x}}{\text{u}\cos\theta}\Big)-\frac{1}{2}\text{g}\Big(\frac{\text{x}}{\text{u}\cos\theta}\Big)^2$

$\text{y}\propto\text{x}^2,$ the path of a projectile is a parabola.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Motion in a Plane→Motion in a Plane — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

The length, breadth and thickness of a rectangular sheet of metal are 4.234m, 1.005m and 2.01cm respectively. Calculate the surface area and volume of the sheet to correct significant figures.

A hot gas emits radiation of wavelengths 46.0nm, 82.8nm and 103.5nm only. Assume that the atoms have only two excited states and the difference between consecutive energy levels decreases as energy is increased. Taking the energy of the highest energy state to be zero, find the energies of the ground state and the first excited state.

When a photon is emitted by a hydrogen atom, the photon carries a momentum with it. (a) Calculate the momentum carries by the photon when a hydrogen atom emits light of wavelength 656.3nm. (b) With what speed does the atom recoil during this transition? Take the mass of the hydrogen atom = 1.67 × 10^-27kg. (c) Find the kinetic energy of recoil of the atom.

The luminous flux of a 1W sodium vapour lamp is more than that of a 10kW source of ultraviolet radiation. Comment.

The half-life of a radioisotope is 10h. Find the total number of disintegrations in the tenth hour measured from a time when the activity was 1Ci.

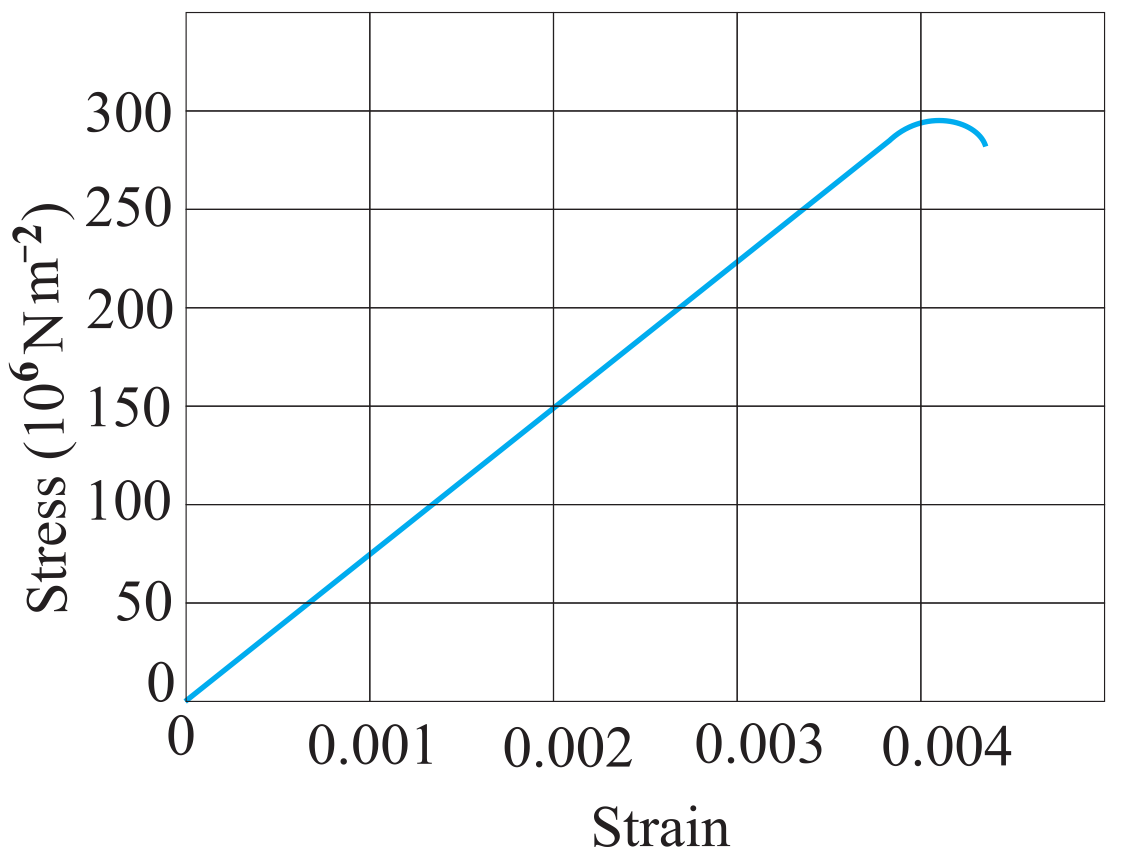

Figure shows the strain-stress curve for a given material. What are (a) Young’s modulus and (b) approximate yield strength for this material?
