MCQ
The current from the battery in circuit diagram shown is .............. $A$
- ✓$1$
- B$2$
- C$1.5$
- D$3$
✓
Answer
Correct option: A.
$1$
a

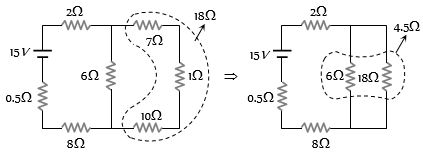

The given circuit can be simplified as follows
The given circuit can be simplified as follows
On further solving equivalent resistance $R = 15\,\Omega $
Hence current from the battery $i = \frac{{15}}{{15}} = 1\,A$
