MCQ
The output of a 2-input OR gate is zero only when its:
- ABoth inputs are 0.
- BEither input is 1.
- CBoth inputs are 1.
- DEither input is 0.
✓
Answer
- Both inputs are 0.
Explanation:
The truth table for 2-input OR gate is as shown in the figure. Thus, the output is zero only when both inputs are zero.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Three identical point charges, as shown are placed at the vertices of an isosceles right angled triangle. Which of the numbered vectors coincides in direction with the electric field at the mid-point M of the hypotenuse
|
(a) 1 |
(b) 2 |
(c) 3 |
(d) 4 |
The truth table shown in figure is for
|
A |
0 |
0 |
1 |
1 |
|
B |
0 |
1 |
0 |
1 |
|
y |
1 |
0 |
0 |
1 |
|
(a) XOR |
(b) AND |
(c) XNOR |
(d) OR |

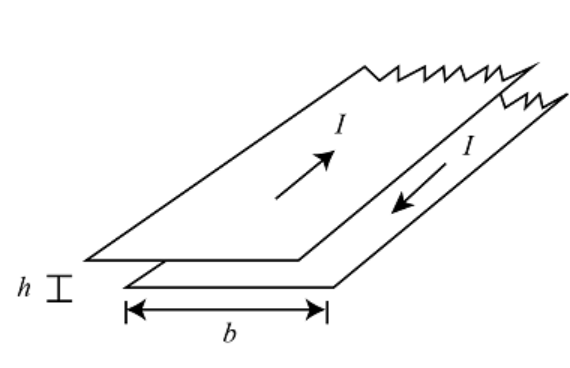

Calculate the inductance of a unit length of a double tape line as shown in figure. The tapes are separated by a distance h which is considerably less than their width b.
