MCQ
The total current supplied to the circuit by the battery is ............. $A$
- A$1$
- B$2$
- ✓$4$
- D$6$
✓
Answer
Correct option: C.
$4$
c

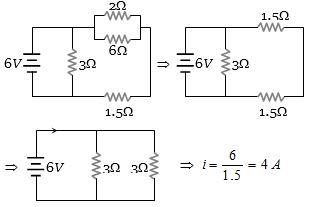

Given circuit can be redrawn as follows
Given circuit can be redrawn as follows
$ \Rightarrow $ $i = \frac{6}{{1.5}} = 4\,A$
