To reduce the ripples in a rectifier circuit with capacitor filter:
  • A
    RL should be increased.
  • B
    Input frequency should be decreased.
  • C
    Input frequency should be increased.
  • D
    Capacitors with high capacitance should be used.
✓

Answer

  1. RL should be increased.
  1. Input frequency should be increased.
  2. ​​​​​Capacitors with high capacitance should be used.

Solution:

Ripple factor may be defined as the ratio of r.m.s. value of the ripple voltage to the absolute value of the DC component of the output voltage, usually expressed as a percentage. However ripple voltage is also commonly expressed as the peak-to-peak value. Ripple factor (r) of a full wave rectifier using capacitor filter is given by

$\text{r}=\frac{0.236\text{R}}{\omega\text{L}}$

where, L is inductance of the coil and $\omega$ is the angular frequency.

or Ripple factor can also be given by

$\text{r}=\frac{1}{4\sqrt{3}\text{v}\text{R}_\text{L}\text{C}_\text{V}}$

i.e., $\text{r}\propto\frac{1}{\text{R}_\text{L}}\Rightarrow\ \text{r}\propto\frac{1}{\text{C}},\text{r}\propto\frac{1}{\text{V}}$

Ripple factor is inversely proportional to RL, C and v.

Thus to reduce r, RL should be increased, input frequency v should be increased and capacitance C should be increased.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q [1M]" from Semiconductor Electronic: Material, Devices And Simple Circuits→Semiconductor Electronic: Material, Devices And Simple Circuits — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

Two sources of equal emf are connected to an external resistance R. The internal resistances of the two sources are  and  . If the potential difference across the source having internal resistance  is zero, then

(a)

(b)

(c)

(d)
→
If in a logic gate output (Y) is obtained by the product of its both inputs (A, B) then the gate is :
→
The electric power :
→

In a transformer, the number of turns in primary coil and secondary coil are 5 and 4 respectively. If 240 V is applied on the primary coil, then the ratio of current in primary and secondary coil is

(a) 4 : 5

(b) 5 : 4

(c) 5 : 9

(d) 9 : 5
→

The concept of stationary orbits was proposed by

(a) Neil Bohr

(b) J.J. Thomson

(c) Ruther ford

(d) I. Newton
→

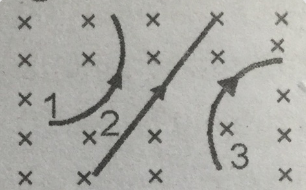

The charges 1, 2, 3 are moving in uniform transverse magnetic field then:

→
