Under certain circumstances, a nucleus can decay by emitting a particle more massive than an $\alpha$ particle. Consider the following decay processes:
$^{223}_{88}\text{Ra}\rightarrow^{209}_{82}\text{Pb}+^{14}_{6}\text{C}$
$^{223}_{88}\text{Ra}\rightarrow^{219}_{86}\text{Rn}+^{4}_{2}\text{He}$
Calculate the $Q-$ values for these decays and determine that both are energetically allowed.
✓

Answer

Take a  $^{14}_{6}\text{C}$ emission nuclear reaction:
$^{223}_{88}\text{Ra}\rightarrow^{209}_{82}\text{Pb}+^{14}_{6}\text{C}$
We know that:
Mass of $^{223}_{88}\text{Ra},\ \text{m}_1=223.01850\text{ u}$
Mass of $^{209}_{82}\text{Pb},\ \text{m}_2=208.98107\text{ u}$
Mass of $^{14}_{6}\text{C },\text{m}_3=14.00324\text{ u}$
Hence, the $Q-$ value of the reaction is given as:
$\text{Q}=(\text{m}_1-\text{m}_2-\text{m}_3)\text{c}^2$
$= (223.01850 - 208.98107 - 14.00324)c^2$
$= (0.03419 c^2) u$
But $1 u = 931.5 MeV/c^2$
$\therefore\ \text{Q}=0.03419\times931.5$
$= 31.848 MeV$
Hence, the $Q-$ value of the nuclear reaction is $31.848 MeV$.
Since the value is positive, the reaction is energetically allowed.
Now take a $^{4}_{2}\text{He}$ emission nuclear reaction:
$^{223}_{88}\text{Ra}\rightarrow^{219}_{86}\text{Rn}+^{4}_{2}\text{He}$
We know that:
Mass of $^{223}_{88}\text{Ra},\ \text{m}_1=223.01850$
Mass of $^{219}_{82}\text{Rn},\ \text{m}_2=219.00948$
Mass of $^{4}_{2}\text{He },\text{m}_3=4.00260$
$Q-$ value of this nuclear reaction is given as:
$\text{Q}=(\text{m}_1-\text{m}_2-\text{m}_3)\text{c}^2$
$= (223.01850 - 219.00948 - 4.00260)C^2$
$= (0.00642 c^2) u$
$= 0.00642 \times 931.5 = 5.98 MeV$
Hence, the $Q$ value of the second nuclear reaction is $5.98 MeV$.
Since the value is positive, the reaction is energetically allowed.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Nuclei→Nuclei — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

  1. State Kirchhoff’s rules for an electric network. Using Kirchhoff’s rules, obtain the balance condition in terms of the resistances of four arms of Wheat sone bridge.
  2. In the meter bridge experimental set up, shown in the figure, the null point $'D\ '$ is obtained at a distance of $40 \ cm$ from end $A$ ofthe meter bridge wire. If a resistance of $10 \Omega$ is connected in series with $R_1,$ null point is obtained at $AD = 60 \ cm$. Calculate the value of $R_1$ and $R_2$.
→

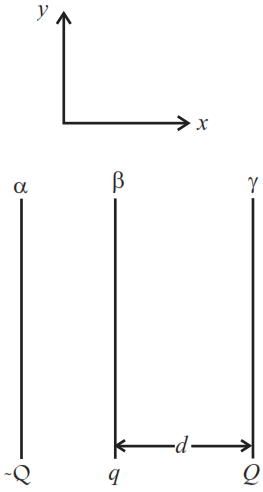

Two fixed, identical conducting plates $(\alpha\ \ \ \beta)$, each of surface area $S$ are charged to $-Q$ and $q,$ respectively, where $Q > q > 0.$ A third identical plate $(\gamma)$, free to move is located on the other side of the plate with charge $q$ at $a$ distance $d ($Fig$).$ The third plate is released and collides with the plate $\beta$. Assume the collision is elastic and the time of collision is sufficient to redistribute charge amongst $\beta\ \ \ \gamma$.
