Questions

[2 Mark Question Answer]

🎯

Test yourself on this topic

16 questions · timed · auto-graded

Question 12 Marks
Explain permanent settlements.
Answer
In this, people build permanent houses. With time, several such structure develop and form a settlement. The availability of water and land for cultivation are important reasons for such settlements growing. Other factors are communication lines such as roads and railways, police stations, post office, hospital, market, health center, etc.
View full question & answer
Question 22 Marks
What do you mean by settlements?
Answer
Settlements are groups of houses, usually in villages or towns, where people live. The size of settlements depends on the availability of roads, railways, hospitals, police station, administrative buildings, etc. Settlements grow over a period of time. A settlement can be permanent or temporary.
View full question & answer
Question 32 Marks
How would you identify the following on a topo sheet: Gap
Answer
A gap is a low lying depression or a valley which cuts through a range of hills It is often occupied by a river.
View full question & answer
Question 42 Marks
How would you identify the following on a topo sheet: Pass
Answer
Passes are low valleys or opening lying between two peaks in a range of hills. A pass is indicated by a drop in height of contours.
View full question & answer
Question 52 Marks
How would you identify the following on a topo sheet: Col
Answer
A col is formed when land has been cut considerably between two streams in a watershed. A col can be identified by a drop in height of the contours.
View full question & answer
Question 62 Marks

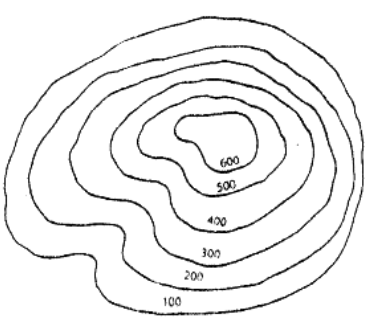

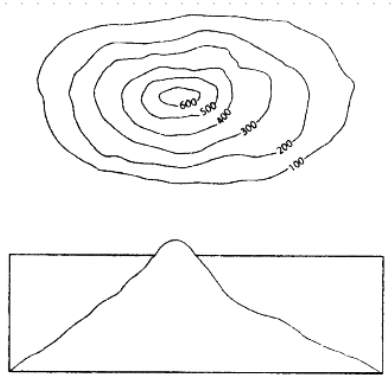

How would you identify the following on a topo sheet: Hill
Answer
A hill is of a lower elevation than a mountain. It has uniform steepness on all sides. The contour lines of a hill are evenly spaced in the form of concentric circles.
View full question & answer
Question 72 Marks

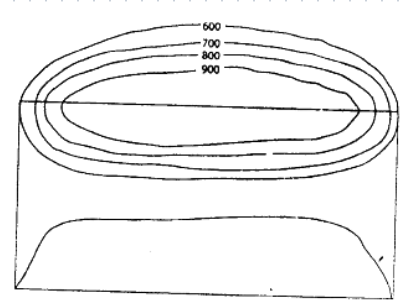

How would you identify the following on a topo sheet: Plateau
Answer
A plateau or a table land is an uplifted piece
View full question & answer
Question 82 Marks

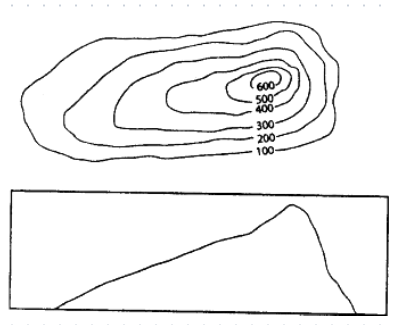

How would you identify the following on a topo sheet: Gentle slope and steep slope
Answer
In a steep slope, the contours are drawn close to one another while in a gentle slope they are wide apart.
View full question & answer
Question 92 Marks
What do you mean by Vertical Interval $(V.I.)$ in a topo sheet?
Answer
The vertical distance between two consecutive contour lines on a topographical map is called as Vertical Interval $(VI)$. They are drawn at fixed intervals and do not change on the map. This interval depends on the scale of the map and the range of elevation in the area of the map.
Example : $VI$ in all topo sheets of $1 : 50,000$ is $20 m.$
View full question & answer
Question 102 Marks

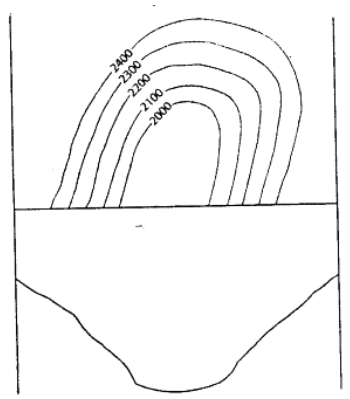

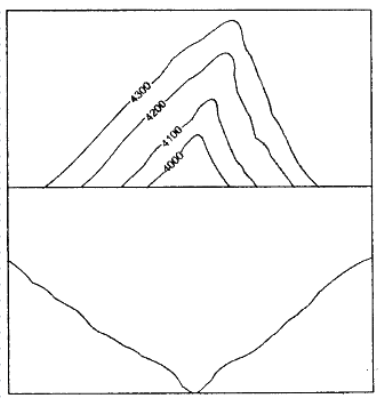

How can $V-$shaped valleys and $U-$shaped valleys be identified on a topo sheet?
Answer
$V-$shaped valleys : $A V-$shaped valley is easily identified on a contour map with the contour lines close to each other and a very dominant $V$.
$U-$shaped valleys : The contour lines of these valleys are bent in a distinct $U-$shape.
View full question & answer
Question 112 Marks
How would you recognize a metalled road and an un metalled one on a topographical map?
Answer
Vehicles such as trucks, buses, cars, jeeps, and other modem means of transport move over metalled roads. There are also cart tracks, pack tracks and footpaths, which are unmetalled roads. Cart tracks and pack tracks connect small village settlements in rural areas.
View full question & answer
Question 122 Marks
What is a linear settlement?
Answer
Linear settlements are those settlements that develop in a line. Houses, shops, dhaba’s, petrol pumps and garages develop along the sides of the roads, railway lines or river banks. Gradually, these linear settlements grow in size. These settlements gradually develop into trading centres.
View full question & answer
Question 132 Marks

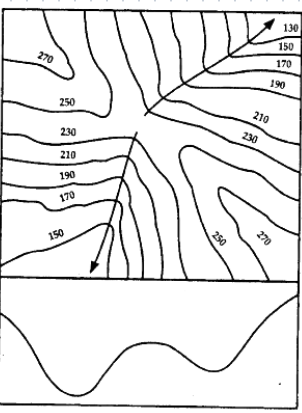

What is a saddle?
Answer
A saddle is a shallow depression at a high elevation between two peaks or ridges. The depression is formed by streams or by glaciers flowing close to each other. A saddle need not have a river or stream flowing through it.
View full question & answer
Question 142 Marks
What is a ridge?
Answer
A ridge is a long and narrow elevation that has steep slopes on either side and stands out from the surrounding lowlands. It also acts as a watershed to rivers that flow down narrow valleys on both of its sides. A ridge could also have several peaks of various elevations.
View full question & answer
Question 152 Marks
What is a contour line?
Answer
A contour line is an imaginary line on a map connecting points at the same height above sea level.
View full question & answer
Question 162 Marks
What do topographical maps show?
Answer
Topographical maps are large scale maps that show both natural features $($such as mountains, hills, rivers, plateaus, ridges, etc$)$ and human$-$made features $($such as roads, railway tracks, temples, bridges, buildings, etc$)$.
View full question & answer
