For what value of unknown resistance $X$, the potential difference between $B$ and $D$ will be zero in the circuit shown in the figure ............... $\Omega$
Medium
Download our app for free and get started
For balanced Wheatstone bridge $\frac{P}{Q} = \frac{R}{S}$
$ \Rightarrow $ $\frac{{12}}{{(1/2)}} = \frac{{x + 6}}{{(1/2)}}$ $ \Rightarrow $ $x = 6\,\Omega $
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions

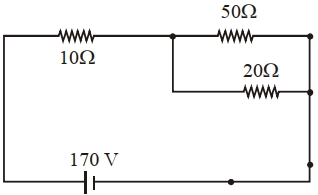

- 1The voltage across the $10\, \Omega$ resistor in the given circuit is $x$ volt.View Solution
