1 Marks Question

Question 11 Mark

A straight horizontal conducting rod of length 0.45 m and mass 60 g is suspended by two vertical wires at its ends. A current of 5.0 A is set up in the rod through the wires.

What magnetic field should be set up normal to the conductor in order that the tension in the wires is zero?
What will be the total tension in the wires if the direction of current is reversed keeping the magnetic field same as before? (Ignore the mass of the wires.) g = 9.8 m s^–2.

Answer

Length of the rod, l = 0.45 m

Mass suspended by the wires, m = 60 g = 60 × 10^-3 kg

Acceleration due to gravity, g = 9.8 m/s²

current in the rod flowing through the wire, I = 5A

Magnetic field (B) is equal and opposite to the weight of the wire i.e.,

BIl = mg

$\therefore\text{B}=\frac{\text{mg}}{\text{Il}}$

$=\frac{60\times10^{-3}\times9.8}{5\times0.45}=0.26\ \text{T}$

A horizontal magnetic field of 0.26 T normal to the length of the conductor should be set,

$=0.26\times5\times0.45+(60\times10^{-3})\times9.8$

$=1.176\ \text{N}$

View full question & answer→

Question 21 Mark

Answer the following question:
A magnetic field that varies in magnitude from point to point but has a constant direction (east to west) is set up in a chamber. A charged particle enters the chamber and travels undeflected along a straight path with constant speed. What can you say about the initial velocity of the particle?

Answer

The initial velocity of the particle is either parallel or anti-parallel to the magnetic field. Hence, it travels along a straight path without suffering any deflection in the field.

View full question & answer→

Question 31 Mark

Answer the following question:
An electron travelling west to east enters a chamber having a uniform electrostatic field in north to south direction. Specify the direction in which a uniform magnetic field should be set up to prevent the electron from deflecting from its straight line path.

Answer

An electron travelling from West to East enters a chamber having a uniform electrostatic field in the North-South direction. This moving electron can remain undeflected if the electric force acting on it is equal and opposite of magnetic field. Magnetic force is directed towards the South. According to Fleming's left hand rule, magnetic field should be applied in a vertically downward direction.

View full question & answer→

Question 41 Mark

Answer the following question:
A charged particle enters an environment of a strong and non-uniform magnetic field varying from point to point both in magnitude and direction, and comes out of it following a complicated trajectory. Would its final speed equal the initial speed if it suffered no collisions with the environment?

Answer

Yes, the final speed of the charged particle will be equal to its initial speed. This is because magnetic force can change the direction of velocity, but not its magnitude.

View full question & answer→

Question 51 Mark

Consider a tightly wound 100 turn coil of radius $10 cm$, carrying a current of $1 A$. What is the magnitude of the magnetic field at the centre of the coil?

Answer

Since the coil is tightly wound, we may take each circular element to have the same radius $R=10 cm =0.1 m$. The number of turns $N=100$. The magnitude of the magnetic field is,
$
B=\frac{\mu_0 N I}{2 R}=\frac{4 \pi \times 10^{-7} \times 10^2 \times 1}{2 \times 10^{-1}}=2 \pi \times 10^{-4}=6.28 \times 10^{-4} T
$

View full question & answer→

Question 61 Mark

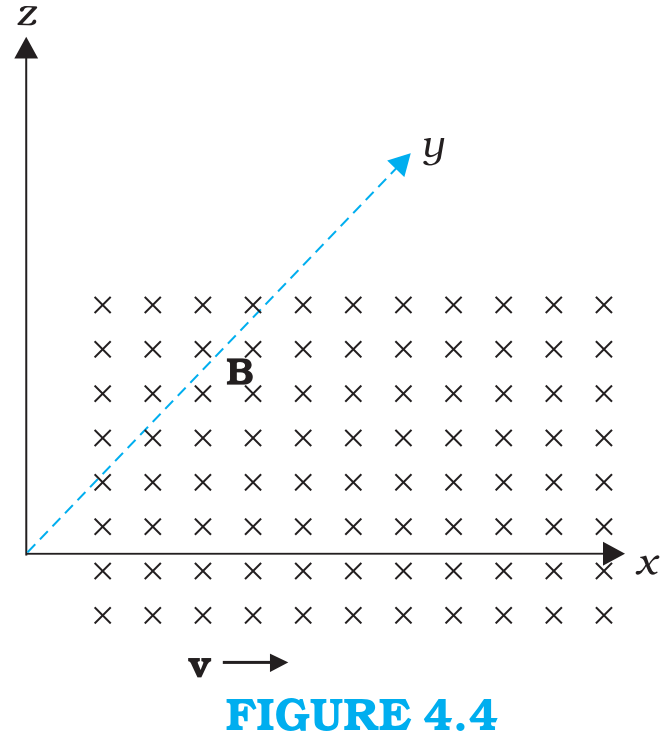

If the magnetic field is parallel to the positive $y$-axis and the charged particle is moving along the positive $x$-axis (Fig. 4.4), which way would the Lorentz force be for (a) an electron (negative charge), (b) a proton (positive charge).

Answer

The velocity $v$ of particle is along the $x$-axis, while $B$, the magnetic field is along the $y$-axis, so $v \times B$ is along the $z$-axis (screw rule or right-hand thumb rule). So, (a) for electron it will be along $-Z$ axis. (b) for a positive charge (proton) the force is along $+z$ axis.

View full question & answer→

Question 71 Mark

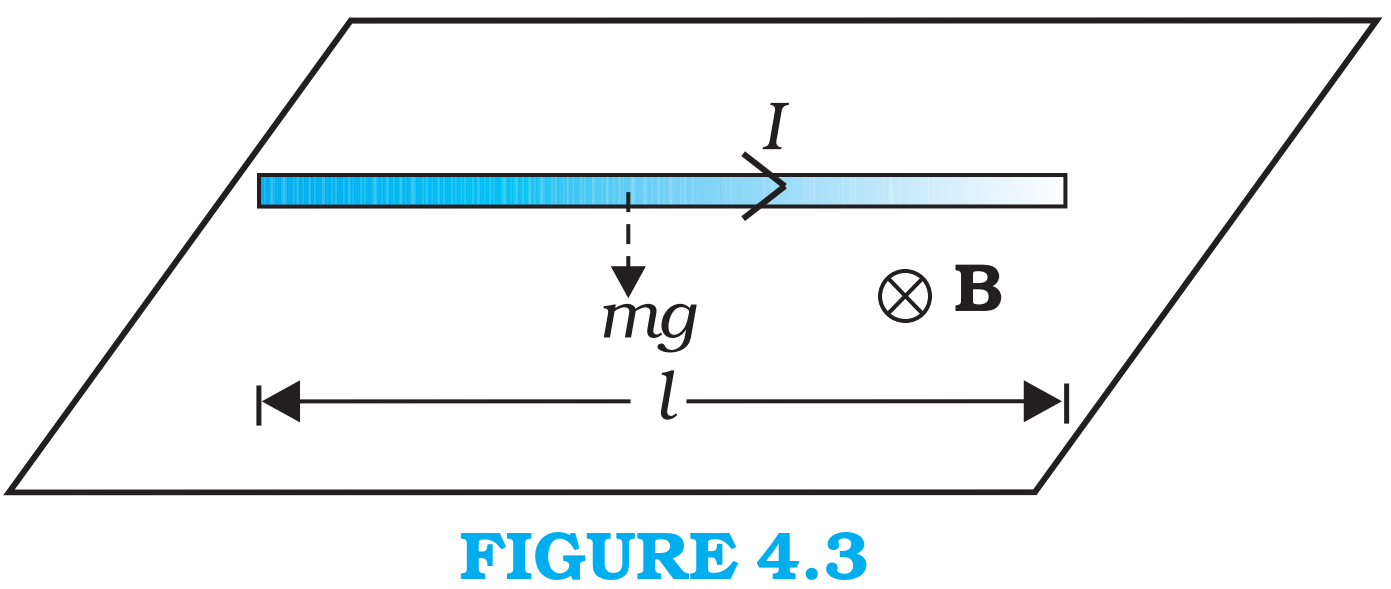

A straight wire of mass $200 g$ and length $1.5 m$ carries a current of $2 A$. It is suspended in mid-air by a uniform horizontal magnetic field B (Fig. 4.3). What is the magnitude of the magnetic field?

Answer

From Eq. (4.4), we find that there is an upward force $F$, of magnitude $I l B$,. For mid-air suspension, this must be balanced by the force due to gravity:
$
\begin{aligned}
m g & =I l B \\
B & =\frac{m g}{I l} \\
& =\frac{0.2 \times 9.8}{2 \times 1.5}=0.65 T
\end{aligned}
$
Note that it would have been sufficient to specify $m / l$, the mass per unit length of the wire. The earth's magnetic field is approximately $4 \times 10^{-5} T$ and we have ignored it.

View full question & answer→

Question 81 Mark

A planar loop of rectangular shape is moved within the region of a uniform magnetic field acting perpendicular to its plane. What is the direction and magnitude of the current induced in it?

Answer

No induced current hence no direction.

View full question & answer→

Question 91 Mark

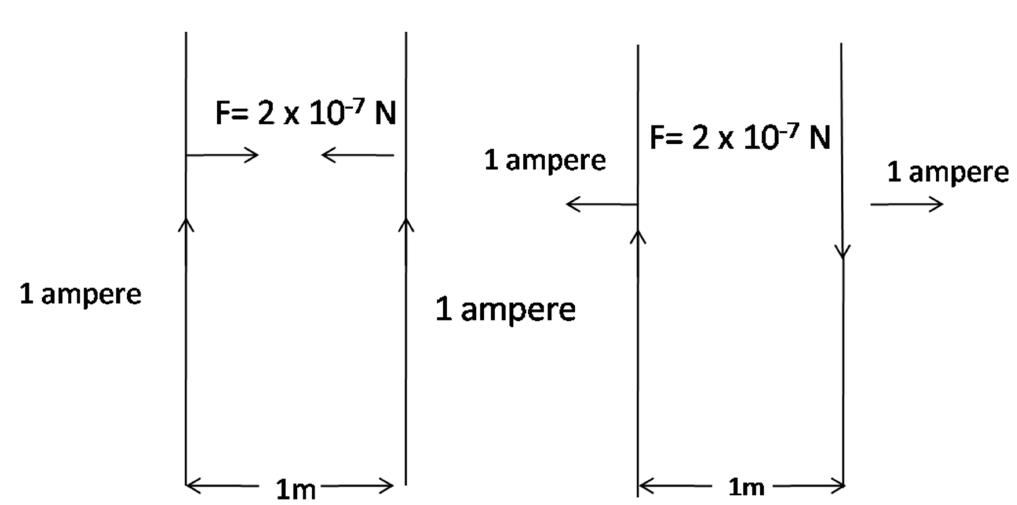

Using the concept of force between two infinitely long parallel current carrying conductors, define one ampere of current.

Answer

Definition: One ampere is the value of steady current which when maintained in each of the two very long, straight, parallel conductors of negligible cross-section and placed one metre apart in vaccum, would produce on each of these conductors a force equal of 2 x 10-7 N/m of its length.

Alternate Answer

If the student writes $\text{F} = \frac{\mu_{o}}{2\pi}\frac{\text{I}_{1}\text{I}_{2}}{\text{R}}\text{L}$

and says that when I₁ = I₂= 1 ampere
R = 1 meter and L = 1 meter, then
F= 2 x 10^-7 N

Alternate Answer

View full question & answer→

Question 101 Mark

A beam of a particles projected along + x-axis, experiences a force due to a magnetic field along the + y-axis. What is the direction of the magnetic field?

Answer

Negative Z direction $(-\hat{\text{k}}).$

View full question & answer→

Question 111 Mark

An electron does not suffer any deflection while passing through a region of uniform magnetic field. What is the direction of the magnetic field?

Answer

Magnetic field and motion of electron should be/parallel/anti parallel.

View full question & answer→

Question 121 Mark

Why should the spring/suspension wire in a moving coil galvanometer have low torsional constant?

Answer

$\frac{\phi}{\text{I}}$

To increase current sensitivity.

Alternate Answer

$\text{ Current Sensitivity}= \frac{\text{NBA}}{\text{k}}$

To increase deflection.

View full question & answer→

Question 131 Mark

An electron is moving a along +ve x-axis in the presence of uniform magnetic field along +ve y-axis. What is the direction of the force acting on it?

Answer

along –ve z axis$ - \hat {\text{k}}$.

View full question & answer→

Question 141 Mark

Write the expression, in a vector form, for the Lorentz magnetic force$\overrightarrow{\text{F}}$ due to a charge moving with velocity $\overrightarrow{\text{V}}$in a magnetic field $\overrightarrow{\text{B}}.$ What is the direction of the magnetic force?

Answer

$\overrightarrow{\text{F}} = \text{q}( \overrightarrow{\text{v}}\times\overrightarrow{\text{B}})$
Perpendicular to the plane formed by$\overrightarrow{\text{v}}$and $\overrightarrow{\text{B}}/\overrightarrow{\text{F}}\bot\overrightarrow{\text{v}}\text{and }\overrightarrow{\text{F}}\bot \overrightarrow{\text{B}}.$

View full question & answer→

Question 151 Mark

Write the underlying principle of a moving coil galvanometer.

Answer

A current carrying coil, in the presence of magnetic field, experiences a torque, which produces proportionate deflection.

Alternate Answer

[(deflection) $\theta \alpha\tau$ (Torque)]

View full question & answer→

Question 161 Mark

Why should electrostatic field be zero inside a conductor?

Answer

In the static situation, there is no current inside, or on the surface, of the conductor. Hence the electric field is zero everywhere inside the conductor.

Alternate Answer

since the charge inside the conductor is zero, the electric field is also zero.

Alternate Answer

since the conductor is uncharged so the electric field inside it is zero.

View full question & answer→

Question 171 Mark

Magnetic field lines can be entirely confined within the core of a toroid, but not within a straight solenoid. Why?

Answer

The magnetic fields lines get confined within a toroid because it has ‘no ends.'

View full question & answer→

Question 181 Mark

What is the direction of the force acting on a charged particle q, moving with a velocity $\overrightarrow{v}$ in a uniform magnetic field $\overrightarrow{B}$?

Answer

Perpendicular to the plane of $\overrightarrow{v}$ and $\overrightarrow{\text{B}}$

Alternate Answer

Direction of $f= q\big(\overrightarrow{v}\times\overrightarrow{B}\big)$

View full question & answer→

Question 191 Mark

A proton and an electron travelling along parallel paths enter a region of uniform magnetic field, acting perpendicular to their paths. Which of them will move in a circular path with higher frequency?

Answer

Proton.

Reason:

Frequency of charge revolving in circular orbit is given by:

$\text{f}=\frac{2\pi\text{m}}{\text{qB}}$

For proton,

$\text{f}_{\text{p}}=\frac{2\pi\text{m}_{\text{p}}}{\text{eB}}$

For electron,

$\text{f}_{\text{e}}=\frac{2\pi\text{m}_{\text{e}}}{\text{eB}}$

but m_p > m_p

So, f_P > f_e

Hence, proton will move in a circular path with higher frequency.

View full question & answer→

Question 201 Mark

What is the nature of magnetic field in a moving coil galvanometer?

Answer

The nature of magnetic field in a moving coil galvanometer is radial.

View full question & answer→

Question 211 Mark

Consider the situation described in the previous problem. Suppose the current i enters the loop at the point A and leaves it at the point B. Find the magnetic field at the centre of the loop.

Answer

$\overrightarrow{\text{B}}$ due t BC

$\overrightarrow{\text{B}}$ due to AD at Pt ‘P’ are equal ore Opposite

Hence net $\overrightarrow{\text{B}}=0$

Similarly, due to AB & CD at P = 0 

$\therefore$ The net B  at the Centre of the square loop = zero

View full question & answer→

Question 221 Mark

Two wires of equal length are bent in the form of two loops. One of the loops is square shaped whereas the other loop is circular. These are suspended in a uniform magnetic field and the same current is passed through them. Which loop will experience greater torque? Give reasons.

Answer

Torque $\tau=\text{IAB}\sin\theta\propto\text{A}$. For given perimeter the area of circular loop is maximum, so a circular loop will experience greater torque.

View full question & answer→

Question 231 Mark

Which physical quantity has the unit Wb/m² ? Is it a scalar or a vector quantity?

Answer

Magnetic field induction has the unit Wb/m². It is a vector quantity.

View full question & answer→

Question 241 Mark

Why should a voltmeter have high resistance?

Answer

A voltmeter is connected in parallel. When connected in parallel, it should draw least current otherwise, the potential difference which it has to measure, will change.

View full question & answer→

Question 251 Mark

Why should an ammeter have a low resistance?

Answer

An ammeter is connected in series with the circuit to read the current. If it had large resistance, it will change the current in circuit which it has to measure correctly; hence ammeter reading will have significant error; so for correct reading an ammeter should have a very low resistance.

View full question & answer→

Question 261 Mark

What pre-information would you require to convert a galvanometer into ammeter or voltmeter?

Answer

Two information’s are required:

Resistance of galvanometer.
Current in galvanometer for full scale deflection.

View full question & answer→

Question 271 Mark

A charged particle enters along the axis of a current carrying a long solenoid. How is its velocity affected? Will the particle be accelerated or decelerated?

Answer

The magnetic field due to a current in solenoid is along the axis, so when a charged particle enters along the axis $(\theta=0)$, the magnetic force on particle is $\text{qvB}\sin0^\circ=0$; so the particle’s velocity remains unchanged i.e., the particle remains unaccelerated.

View full question & answer→

Question 281 Mark

When a charged particle moves in a magnetic field normally; what quantity changes the particle’s speed, particle’s energy, path of motion of the particle?

Answer

Path of motion changes.

View full question & answer→

Question 291 Mark

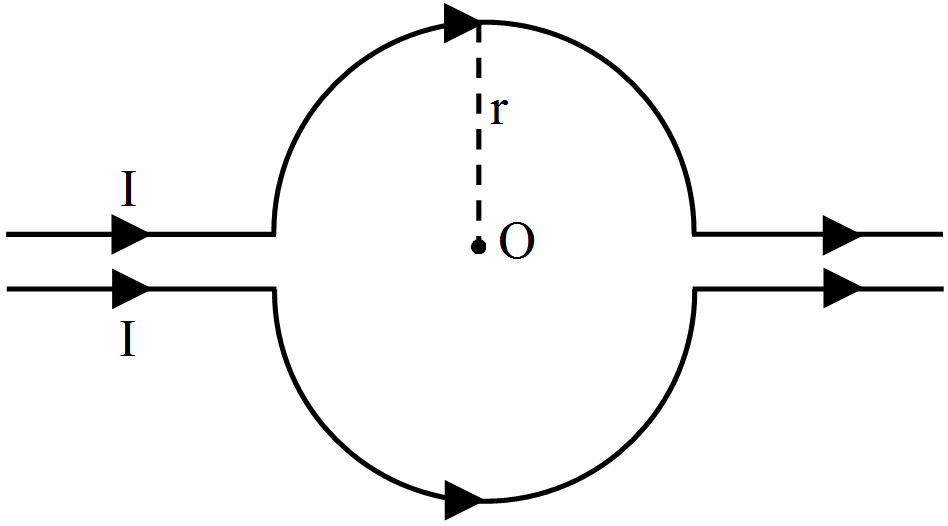

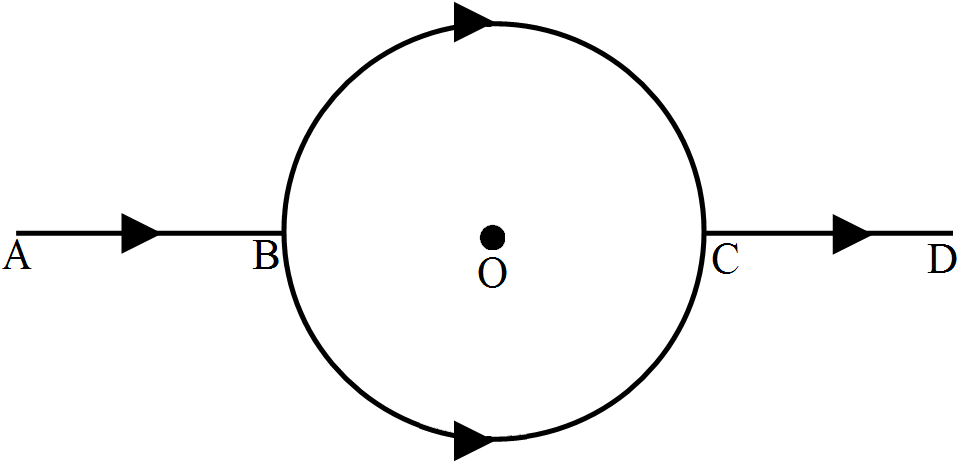

What is the value of magnetic field at point O due to current flowing in the wires?

Answer

Zero, because the upper and lower current carrying conductors are identical and so the magnetic fields caused by them at the centre O will be equal and opposite.

View full question & answer→

Question 301 Mark

Under what condition the force acting on a charge moving through a uniform magnetic field is minimum?

Answer

$\text{F}_\text{m}=\text{qvB}\sin\theta$; for minimum force $\sin\theta=0$.
i.e., force is minimum when charged particle moves parallel or antiparallel to the field.

View full question & answer→

Question 311 Mark

An electron, passing through a region is not deflected. Are you sure that there is no magnetic field in that region?

Answer

No, if an electron enters parallel to a magnetic field, no force acts and the electron remains undeflected.

View full question & answer→

Question 321 Mark

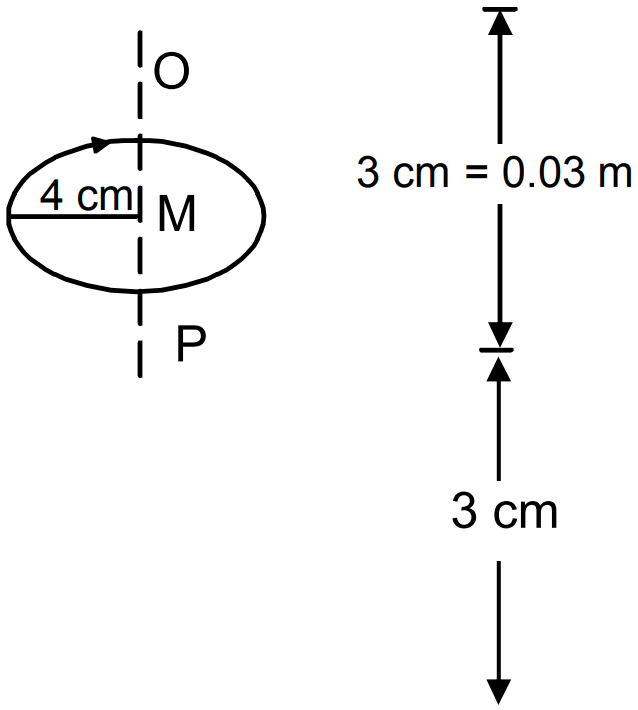

A circular loop of radius 4.0cm is placed in a horizontal plane and carries an electric current of 5.0A in the clockwise direction as seen from above. Find the magnetic field:

At a point 3.0cm above the centre of the loop.
At a point 3.0cm below the centre of the loop.

Answer

At O P the $\overrightarrow{\text{B}}$ must be directed downwards
We Know,
B at the axial line at O & P

$=\frac{\mu_0\text{ia}^2}{2(\text{a}^2+\text{d}^2)^\frac{3}{2}}$ a = 4cm = 0.04m
$=\frac{4\pi\times10^{-7}\times5\times0.0016}{2(0.0025)^\frac{3}{2}}$ d = 3cm = 0.0m
$=40\times10^{-6}=\times10^{-5}\text{T}$ downwards in both the cases.

View full question & answer→

Question 331 Mark

Will a current loop placed in a magnetic field always experience a zero force?

Answer

If the magnetic field is uniform in space. If it is non-uniform net force will not be always zero.

View full question & answer→

Question 341 Mark

Can a charged particle be accelerated by a magnetic field? Can its speed be increased?

Answer

Yes (in circular path), No since magnetic field does no work.

View full question & answer→

Question 351 Mark

What is the magnetic field at point O due to current carrying wires shown in figure?

Answer

The magnetic field due to straight wires AB and CD is zero since either $\theta=0\ \text{or}\ 180^\circ$ and that due to a semi-circular arc are equal and opposite; hence net field at O is zero.

View full question & answer→

Question 361 Mark

The free electrons in a conducting wire are in constant thermal motion. If such a wire, carrying no current, is placed in a magnetic field, is there a magnetic force on each free electron? On the wire?

Answer

Yes, each electron experiences a force. But since the motion is random the net force on collective electrons is zero.

View full question & answer→

Question 371 Mark

Two proton beams going in the same direction repel each other whereas two wires carrying currents in the same direction attract each other. Explain.

Answer

Two proton beams going in the same direction repel each other, as they are like charges and we know that like charges repel each other.
When a charge is in motion then a magnetic field is associated with it. Two wires carrying currents in the same direction produce their fields (acting on each other) in opposite directions so the resulting magnetic force acting on them is attractive. Due to the magnetic force, these two wires attract each other.
But when a charge is at rest then only an electric field is associated with it and no magnetic fiels is produced by it. So at rest, it repels a like charge by exerting a electric force on it. Charge in motion can produce both electric field and magnetic field.
The attractive force between two current carrying wires is due to the magnetic field and repulsive force is due to the electric field.

View full question & answer→

Question 381 Mark

Two identical charged particles moving with the same speed enter a region of uniform magnetic field. If one of these enters normal to the field direction and the other enters along a direction at 30° with the field, what would be the ratio of their angular frequencies?

Answer

$\omega=\frac{\text{qB}}{\text{m}}$ independent of angle of entrance with the magnetic field.

Ratio $\omega_1:\omega_2=1:1$

View full question & answer→

Question 391 Mark

In what condition does a charged particle moving through a magnetic field follow a circular path?

Answer

The charged particle follows a circular path, when it moves perpendicular to the direction of a magnetic field.

View full question & answer→

Question 401 Mark

Give two factors by which the voltage sensitivity of a moving coil galvanometer can be increased.

Answer

The voltage sensitivity of a moving coil galvanometer is given by $\text{S}_\text{v}=\frac{\text{NBA}}{\text{GC}} $
Clearly, it can be increased by increasing the number of turns (N) and decreasing the torsional rigidity C of suspension wire.

View full question & answer→

Question 411 Mark

What will be the path of a charged particle moving along the direction of a uniform magnetic field?

Answer

The path of particle will remain unchanged $($since magnetic force $\text{F}_\text{m}=\text{qvB} \ \sin\theta=0)$.

View full question & answer→

Question 421 Mark

A charged particle moving with a uniform velocity enters a magnetic field directed perpendicular to it, what will be the path of electron? How will its speed be affected?

Answer

In a perpendicular magnetic field a charged particle traverses a circular path. There will be no change in speed of particle.

View full question & answer→

Question 431 Mark

Suppose a charged particle moves with a velocity v near a wire carrying an electric current. A magnetic force, therefore, acts on it. If the same particle is seen from a frame moving with velocity v in the same direction, the charge will be found at rest. Will the magnetic force become zero in this frame? Will the magnetic field become zero in this frame?

Answer

Current doesn't depend on reference frame as if electron comes to rest, protons moves in oppositive direction therefore the magnetic field will not become zero.
Since, the charged particle appears to be at rest therefore the force due to magnetic field becomes zero.

View full question & answer→

Question 441 Mark

Equal currents are flowing through two infinitely long parallel wires. What will be the magnetic field at a point midway when the currents are flowing in the same direction?

Answer

Magnetic field at mid-point due to two wires will be equal and opposite, hence the net magnetic field at this point will be zero.

View full question & answer→

Question 451 Mark

Under what condition an electron moving through a magnetic field experiences the maximum force?

Answer

$\text{F}_\text{m}=\text{qvB} \ \sin\theta$
Force is maximum when $\sin\theta=1\ \text{or}\ \theta=90^\circ$,that is, when electron is moving perpendicular to the direction of magnetic field.

View full question & answer→

Question 461 Mark

What is Bohr magneton?

Answer

Bohr magenton is a unit of atomic dipole moment. Its value is eh
$\frac{\text{eh}}{4\pi\text{m}}=9.27\times10^{-24}\text{Am}^2$.

View full question & answer→

Question 471 Mark

Which types of fields are produced by a moving electron? If electron is at rest, then what type of field is produced?

Answer

A moving electron produces electric and magnetic fields both. A stationary electron produces electric field only.

View full question & answer→

Physics 1 Marks Question

Test yourself on this topic
