In the circuit shown in figure, find the current through the branch $BD$ ............. $A$
Medium
Download our app for free and get started
The current in the circuit are assumed as shown in the fig.
Applying $KVL$ along the loop $ABDA$, we get
$-6i_1 -3 i_2 + 15 = 0$ or $2i_1 + i_2 = 5$ ….. $(i)$
Applying $KVL$ along the loop $BCDB$, we get
$-3(i_1 -i_2) -30 + 3i_2 = 0$ or $-i_1 + 2i_2 = 10$ ….. $(ii)$
Solving equation $(i)$ and $(ii)$ for $i_2$, we get $i_2 = 5\, A$.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1Two batteries one of the $\mathrm{emf}$ $3\,V$, internal resistance $1$ ohm and the other of $\mathrm{emf}$ $15\, V$, internal resistance $2$ $\mathrm{ohm}$ are connected in series with a resistance $R$ as shown. If the potential difference between $a$ and $b$ is zero the resistance of $R$ in $\mathrm{ohm}$ isView Solution

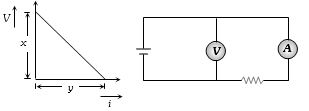

- 2In an experiment, a graph was plotted of the potential difference $V$ between the terminals of a cell against the circuit current $i$ by varying load rheostat. Internal conductance of the cell is given byView Solution
