Physics 3 Marks Question

Semiconductor Electronic: Material, Devices And Simple Circuits · Bihar Board (BSEB) STD 12 Science (BSEB - English Medium). 85 questions.

Questions · Page 1 of 2

3 Marks Question

🎯

Test yourself on this topic

50 questions · timed · auto-graded

Question 13 Marks
Write the two processes that take place in the formation of a p-n junction. Explain with the help of a diagram, the formation of depletion region and barrier potential in a p-n junction.
Answer

Due to the diffusion of electrons and holes across the junction a region of (immobile) positive charge is created on the n-side and a region of (immobile) negative charge is created on the p-side, near the junction; this is called depletion region.
Barrier potential is formed due to loss of electrons from n-region and gain of electrons by p-region. Its polarity is such that it opposes the movement of charge carriers across the junction.
View full question & answer→
Question 23 Marks
  1.

  1.

Answer
  1. A and Bare the inputs and Y is the output of the given circuit. The left half of the given figure acts as the NOR Gate, while the right ha1f acts as the NOT Gate. This is shown in the following figure.

Hence, the output of the NOR Gate $=\overline{\text{A+B}}$

This will be the input for the NOT Gate. Its output wHI be ${\overline{\overline{A+B}}}=\text{A+B}$

$\therefore$ Y = A +B

Hence, this circuit functions as an OR Gate.

  1. A and B are the inputs and Y is the output of the given circuit. It can be observed from the following figure that the Inputs of the right half NOR Gate are the outputs of the two NOT Gates.

Hence, the output of the given circuit can be written as:

$ \text{Y}={\overline{\overline{\text{A}}+{\overline{\text{B}}}}}={\overline{\overline{\text{A}}\cdot{\overline{\text{B}}}}}=\text{A}\cdot\text{B}$

Hence, this circuit functions as an AND Gate.​​​​​​​

View full question & answer→
Question 33 Marks
The number of silicon atoms per m3 is 5 × 1028. This is doped simultaneously with 5 × 1022 atoms per m3 of Arsenci and 5 × 1020 per m3 atoms of Indium. Calculate the number of electrons and holes Given that ni = 1.5 × 1016 m-3. Is the material n-type or p-type?
Answer
Number of silicon atoms, N = 5 × 1028 atoms/m3

Number of arsenci atoms, nAs = 5 × 1022 atoms/m3

Number of indium atoms, nIn = 5 × 1020 per m3 atoms

Number of thermally-generated electrons, ni = 1.5 × 1016 electrons/m3

Number of electrons, ne = 5 × 1022 -1.5 × 1016 $\thickapprox$ 4.99 × 1022

Number of holes = nh

In thermal equilibrium, the concentrations of electrons and holes in a semiconductor are related as:

nenh=ni2

$\therefore\ \text{n}_{\text{h}}=\frac{\text{n}_\text{i}^\text{2}}{\text{n}_\text{e}}$

$=\frac{\big(1.5\times10^{16}\big)^{2}}{4.99\times10^{22}}\thickapprox4.51\times10^{9}$

Therefore, the number of electrons is approximately 4.99 × 1022 and the number of holes is about 4.51 × 109. Since the number of electrons is more than the number of holes, the material is an n-type semiconductor.

View full question & answer→
Question 43 Marks
Write the truth table for a NAND gate connected as given in Fig. 14.45.

Hence identify the exact logic operation carried out by this circuit.
Answer
A acts as the two inputs of the NANO gate and Y is the output, as shown in the following figure.

Hence, the output can be written as:
$\text{Y}=\overline{\text{A}\cdot{\text{A}}}=\overline{\text{A}}+\overline{\text{A}}=\overline{\text{A}}\ \ \ ...\text{(i)}$
The truth table for equation (i) can be drawn as:
A $_{\text{Y}}\Big(=\overline{\text{A}}\Big)$
0 1
1 0
This circuit functions as a NOT gate. The symbol for this logic circuit is shown as:

View full question & answer→
Question 53 Marks
A p-n photodiode is fabricated from a semiconductor with band gap of 2.8 eV. Can it detect a wavelength of 6000 nm?
Answer
Energy band gap of the given photodiode, Eg = 2.8 eV
wavelength, $\lambda$ = 6000 nm = 6000 × 10-9 m
The energy of a signal is given by the relation:
$\text{E}=\frac{\text{hc}}{\lambda}$
Where,
h = Planck's constant
= 6.626 × 10-34 Js
C = Speed of light
=3 × 108 m/s
$\text{E}=\frac{6.626\times10^{-34}\times3\times10^{8}}{6000\times10^{-9}}$
= 3.313 × 10-20 J
But 1.6 × 10-19 J = 1 eV
$\therefore$ E = 3.313 × 10-20 J
$=\frac{3.313\times10^{-20}}{1.6\times10^{-19}}=0.207\ \text{eV}$
The energy of a signal of wavelength 6000 nm is 0.207 eV, which is less than 2.8 eV - the energy band gap of a photodiode. Hence, the photodiode cannot detect the signal.
View full question & answer→
Question 63 Marks
For a CE-transistor amplifier, the audio signal voltage across the collected resistance of 2k Ω is 2 V. Suppose the current amplification factor of the transistor is 100, find the input signal voltage and base current, if the base resistance is 1k Ω.
Answer
Collector resistance, Rc= 2k Ω = 2000Ω
Audio signal voltage across the collector resistance, V = 2 V
Current amplification factor of the transistor, β = 100
Base resistance, RB = 1k Ω = 1000Ω
Input signal voltage = Vi
Base current = IB
We have the amplification relation as:
Voltage amplification $=\frac{\text{V}}{\text{V}_1}=\beta\frac{\text{R}_c}{\text{R}_B}$
$ {\text{V}_\text{i}}=\frac{\text{VR}_\text{B}}{\beta\text{R}_\text{C}}$
$=\frac{2\times1000}{100\times2000}=0.01\ \text{V}$
Therefore, the input signal voltage of the amplifier is 0.01 V. Base resistance is given by the relation:
${\text{R}_\text{B}}=\frac{\text{V}_\text{i}}{\text{I}_\text{B}}$
$\text{I}_\text{B}=\frac{\text{V}_\text{i}}{{\text{R}_\text{B}}}$
$\text{I}_\text{B}= \frac{0.01}{1000}=10\times10\mu^{-6}\text{A}$
Therefore, the base current of the amplifier is 10 $\mu\text{A}.$
View full question & answer→
Question 73 Marks

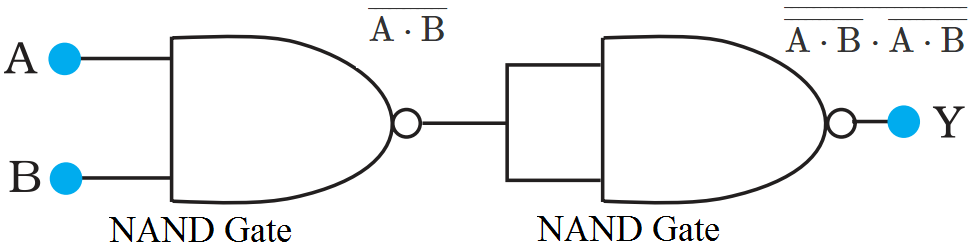

You are given two circuits as shown in Fig. 14.46, which consist of NAND gates. Identify the logic operation carried out by the two circuits.

  1.

  1.

Answer
In both the given circuits, A and B are the inputs and Y is the output.
  1. The output of the left NANO gate will be $\overline{{\text{A}}.\text{B}}$, as shown in the following figure.

Hence, the output of the combination of the two NAND gates is given as:
$\text{Y}=\overline{\Big(\overline{\text{A}\cdot{\text{B}}}\Big)\cdot\Big(\overline{\text{A}\cdot{\text{B}}}\Big)}=\overline{\overline{\text{AB}}}+\overline{\overline{\text{AB}}}=\text{AB}$
Hence, this circuit functions as an AND gate.

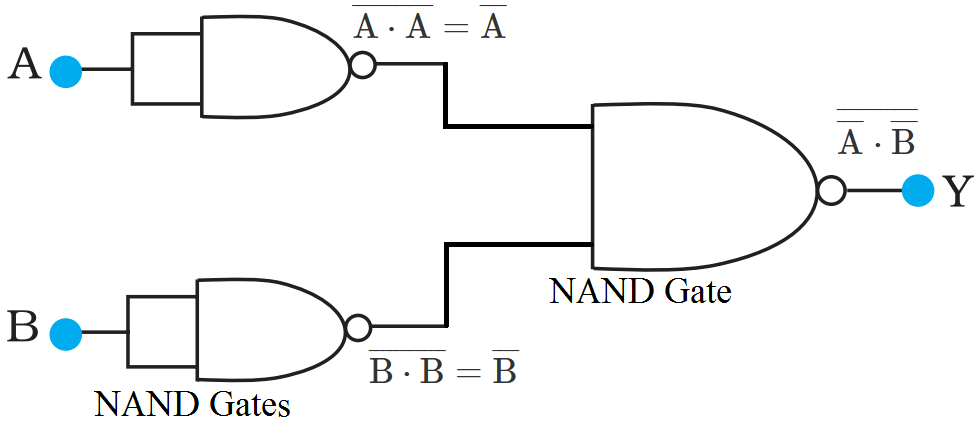

  1. $\overline{\text{A}}$ is the output of the upper left of the NAN D gate and $\overline{\text{B}}$ is the output of the lower half of the NAND gate, as shown in the following figure.

Hence, the output of the combination of the NANO gates will be given as:
$\text{Y}=\overline{\text{A}}\cdot\overline{\text{B}}=\overline{\overline{\text{A}}}+\overline{\overline{\text{B}}}=\text{A+B}$
Hence, this circuit functions as an OR gate.
View full question & answer→
Question 83 Marks

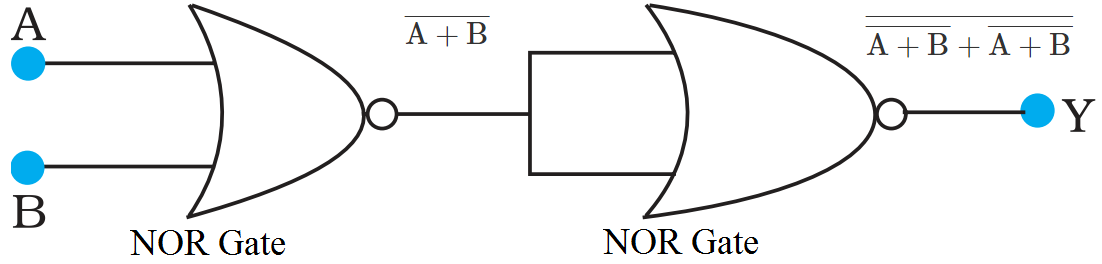

Write the truth table for circuit given in Fig. 14.47 below consisting of NOR gates and identify the logic operation (OR, AND, NOT) which this circuit is performing.

(Hint: A = 0, B = 1 then A and B inputs of second NOR gate will be 0 and hence Y=1. Similarly work out the values of Y for other combinations of A and B. Compare with the truth table of OR, AND, NOT gates and find the correct one.)

Answer
A and B are the inputs of the given circuit. The output of the first NOR gate is $\overline{\text{A}+\text{B}}.$ It can be observed from the following figure that the inputs of the second NOR gate become the out put of the first one.

Hence, the output of the combination is given as:
$\text{Y}=\overline{\overline{\text{A}+\text{B}}+\overline{\text{A}+\text{B}}}\ =\ \bigg(\overline{\overline{\text{A}+\text{B}}}\bigg)\cdot\bigg(\overline{\overline{\text{A}+\text{B}}}\bigg)$
$=(\text{A}+\text{B})\cdot(\text{A}+\text{B})=\text{A}+\text{B}$

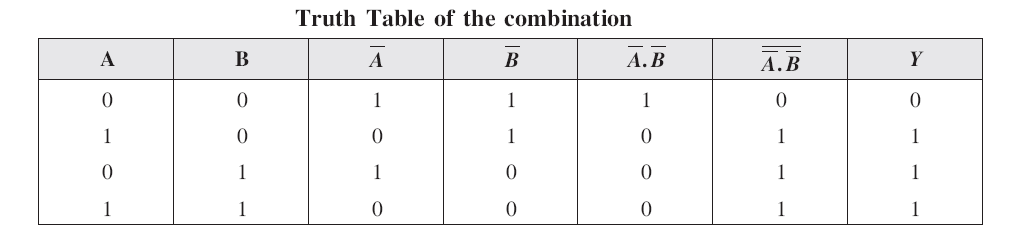

The truth table for this operation is given as:
A
B
Y (=A+B)
0
0
0
0
1
1
1
0
1
1
1
1
This is the truth table of an OR gate. Hence, this circuit functions as an OR gate.
View full question & answer→
Question 93 Marks
You are given two circuits (a) and (b) as shown in the figures, which consist of NAND gates. Identify the logic operation carried out by the two. Write the truth tables for each. Identify the gates equivalent to the two circuits.

Answer
Logic Operation a) Y = A.B
b) Y = A+B
Truth Table
  1.
A B Y
0 0 0
1 0 0
0 1 0
1 1 1
  1.
A B Y
0 0 0
1 0 1
0 1 1
1 1 1
Identification:
  1. AND gate.
  2. OR gate.
View full question & answer→
Question 103 Marks

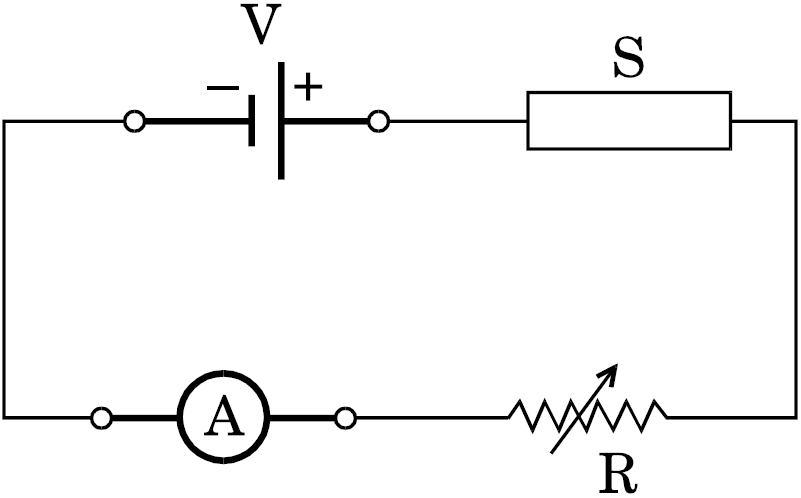

  1. In the following diagram ‘S’ is a semiconductor. Would you increase or decrease the value of R to keep the reading of the ammeter A constant when S is heated? Give reason for your answer.

  1. Draw the circuit diagram of a photodiode and explain its working. Draw its I - V characteristics.
Answer
  1. R would be increased.

Resistance of S (a semi conductor) decreases on heating.

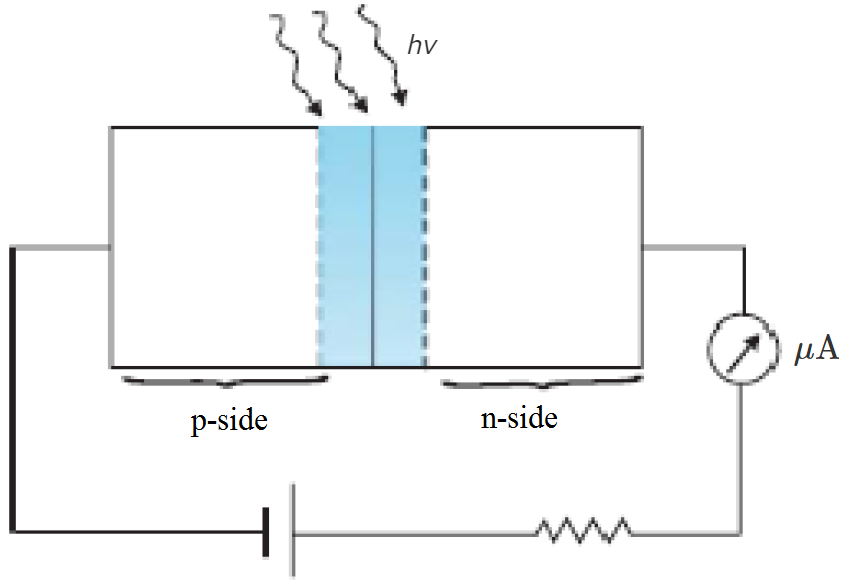

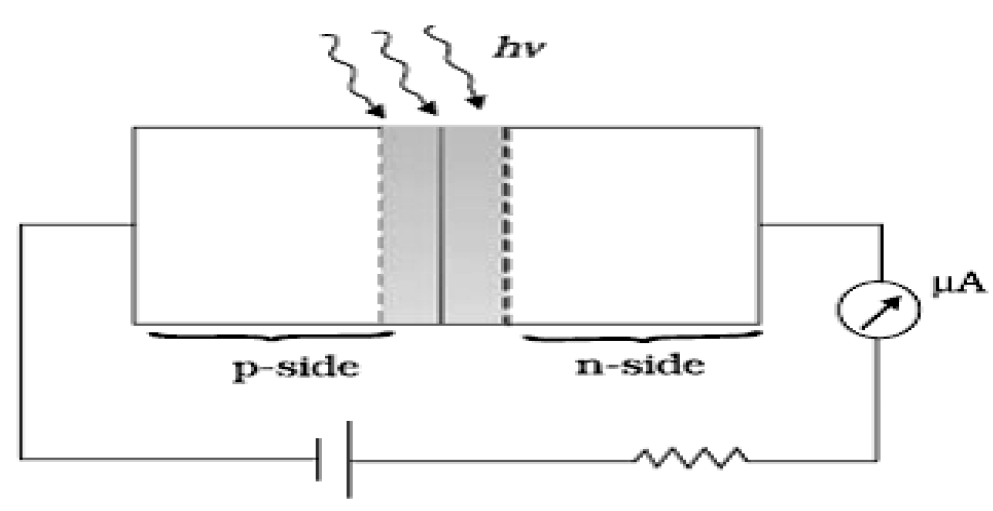

  1. Photodiode diagram:

When the photodiode is illuminated with light (photons) (with energy (hv) greater than the energy gap (Eg) of the semiconductor), then electron-hole pairs are generated due to the absorption of photons. Due to junction field, electrons and holes are separated before they recombine. Electrons are collected on n-side and holes are collected on p-side giving rise to an emf. When an external load is connected, current flows.

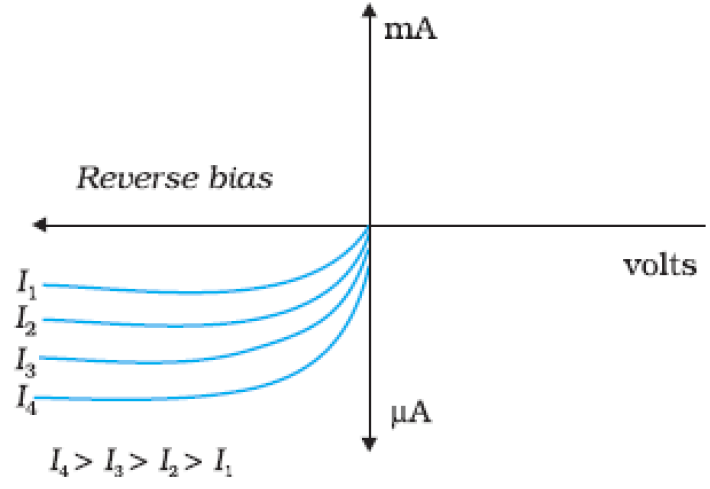

V-I Characteristics of the diode:

View full question & answer→
Question 113 Marks

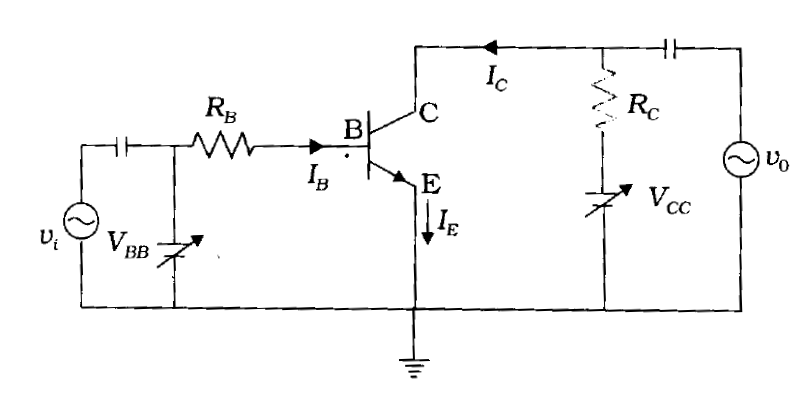

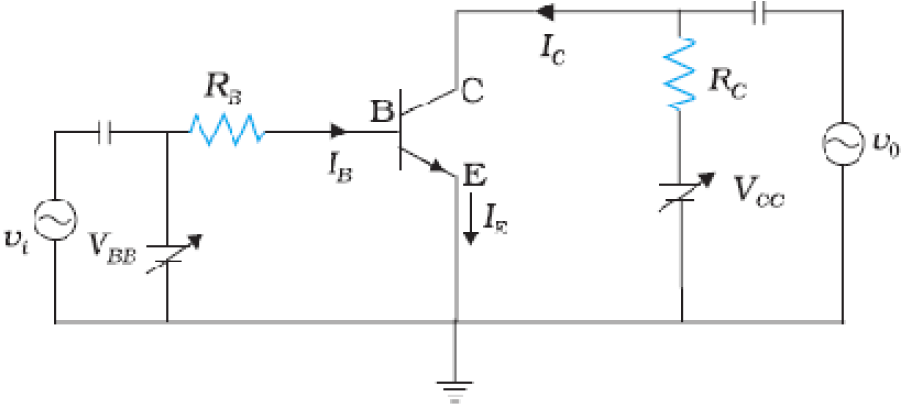

  1. Draw the circuit diagram of an n-p-n transistor amplifier in common emitter configuration.
  2. Derive an expression for voltage gain of the amplifier and hence show that the output voltage is in opposite phase with the input voltage.
Answer
  1.

  1. Change in the input voltage: $\Delta {V}_{BE}=I_B{r}_i$

Change in the output voltage:$\Delta {V}_{CE}=I_C{R}_c$

Voltage gain= Output voltage/Input voltage $A_V=-\frac{\beta{{R}c}}{r_i}$

Negative sign indicates, phase difference is $180^\circ$

View full question & answer→

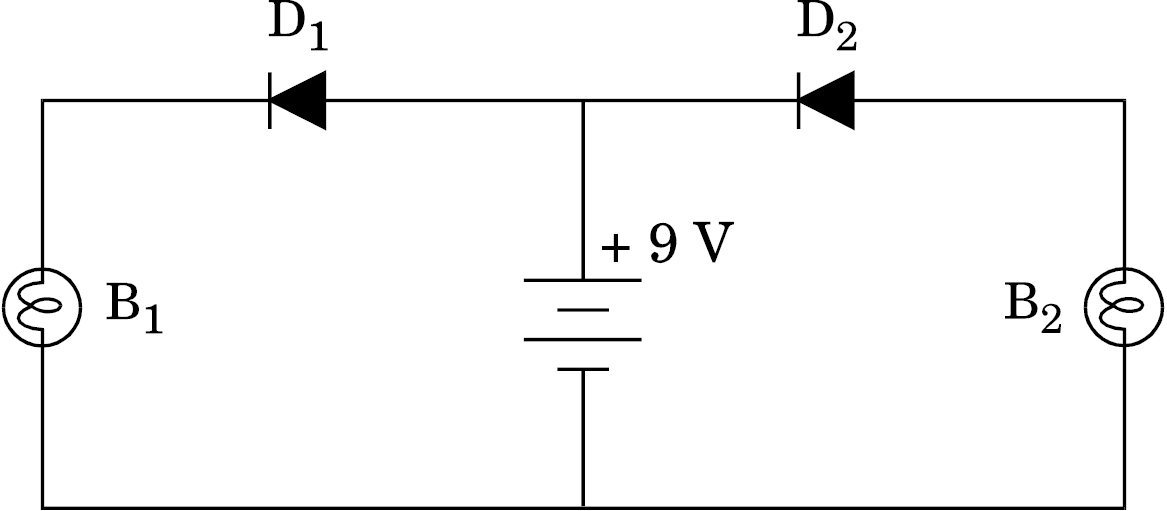

Question 123 Marks
Answer
  1. Bulb B1 glows Diode.

D1 is forward biased.

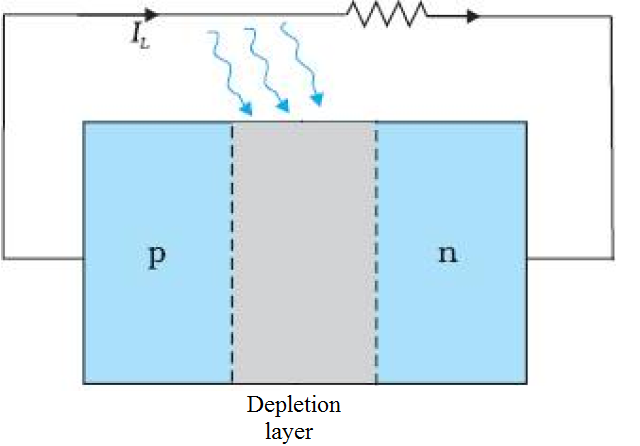

  1. Diagram:

  1. Generation: Incident light generates electron-hole pairs.

Separation: Electric field of the depletion layer separates the electrons and holes.

Collection: Electrons and holes are collected at the n and p side contacts.

View full question & answer→

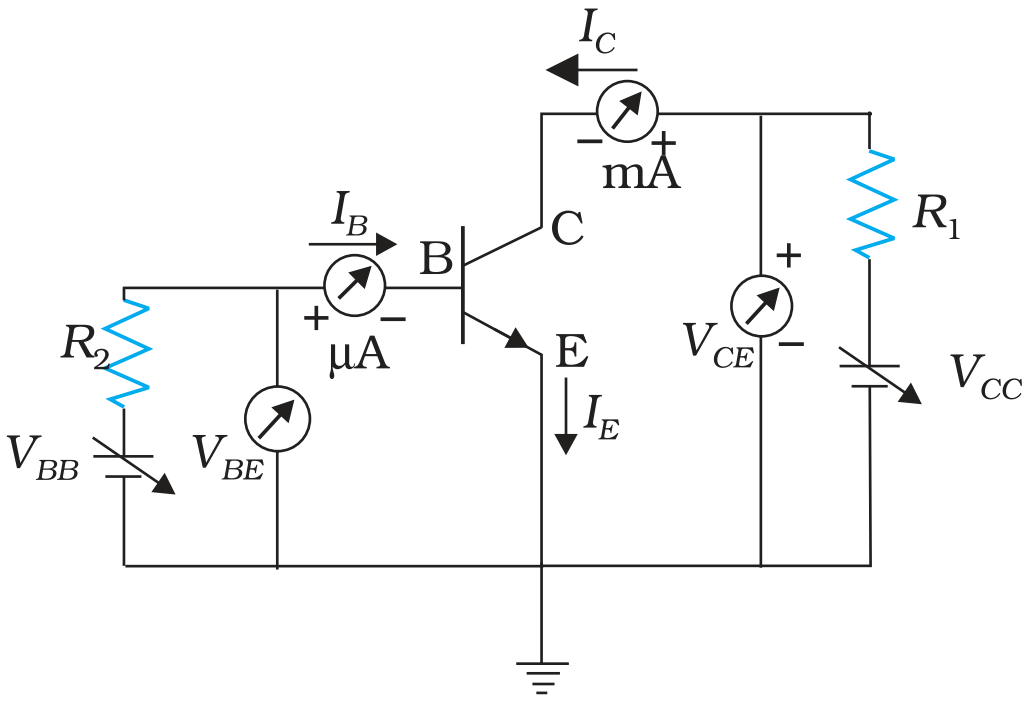

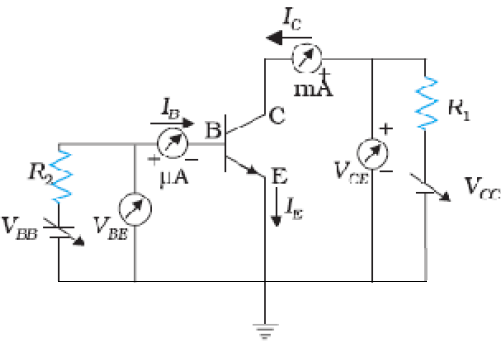

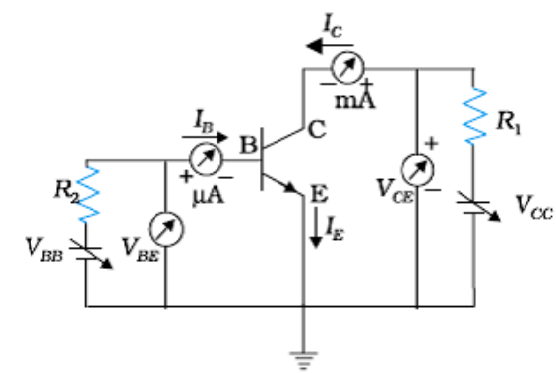

Question 133 Marks
Answer

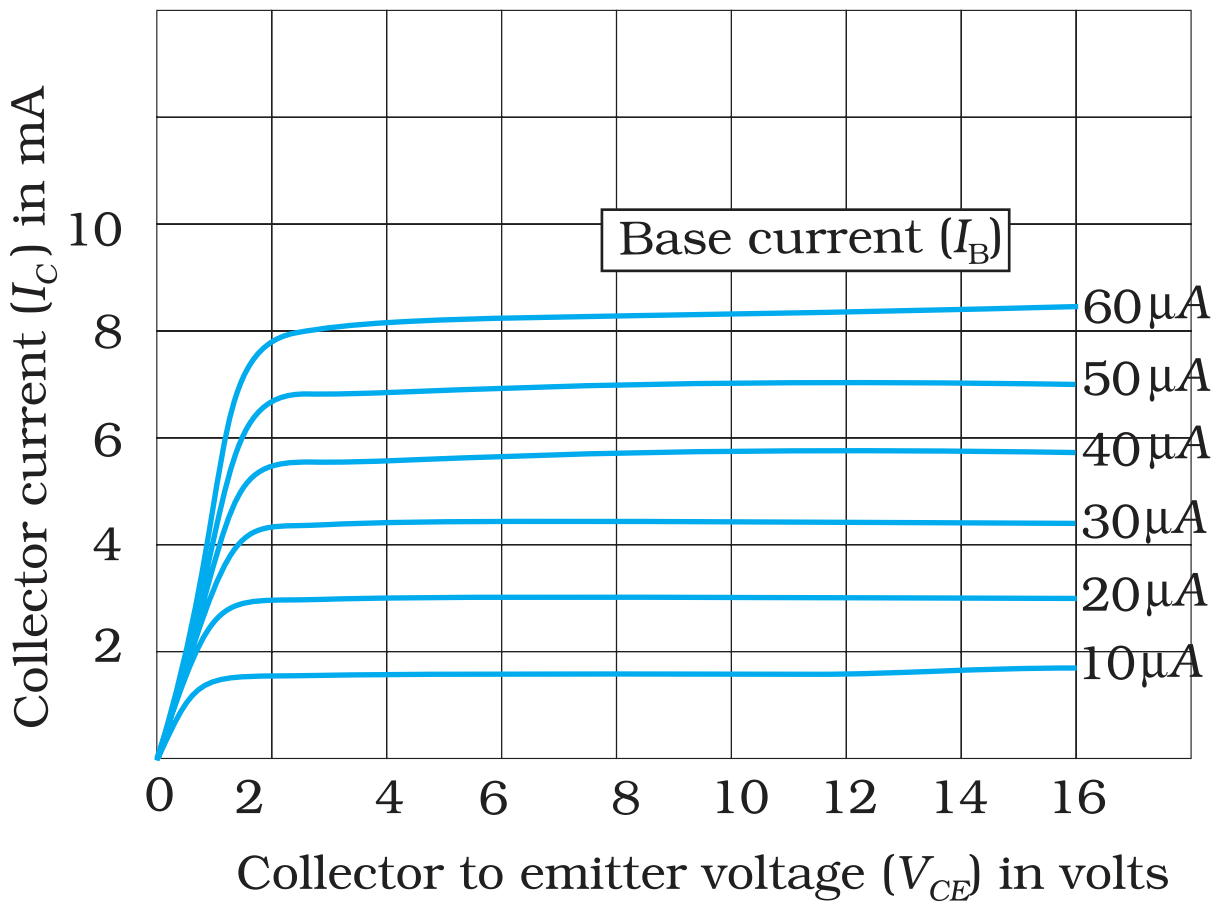

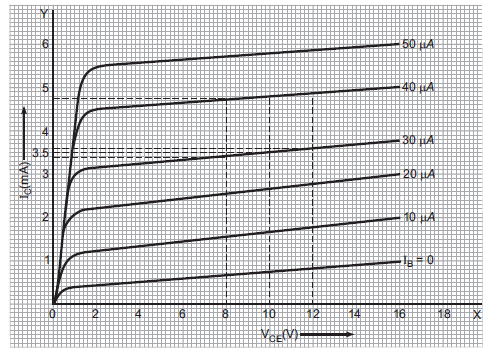

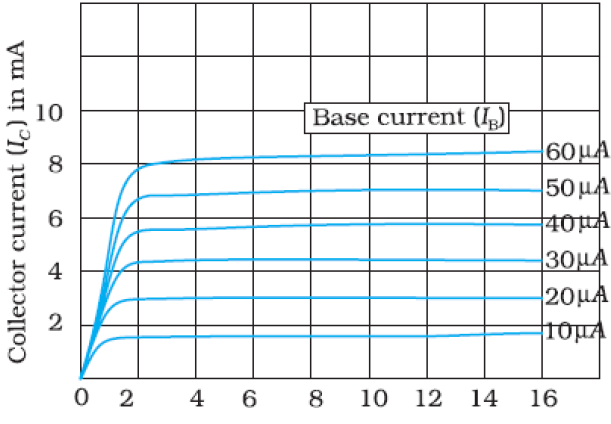

$\text{Collector to emitter voltage}(V_{CE})\text{in volts}$

Alternate answer

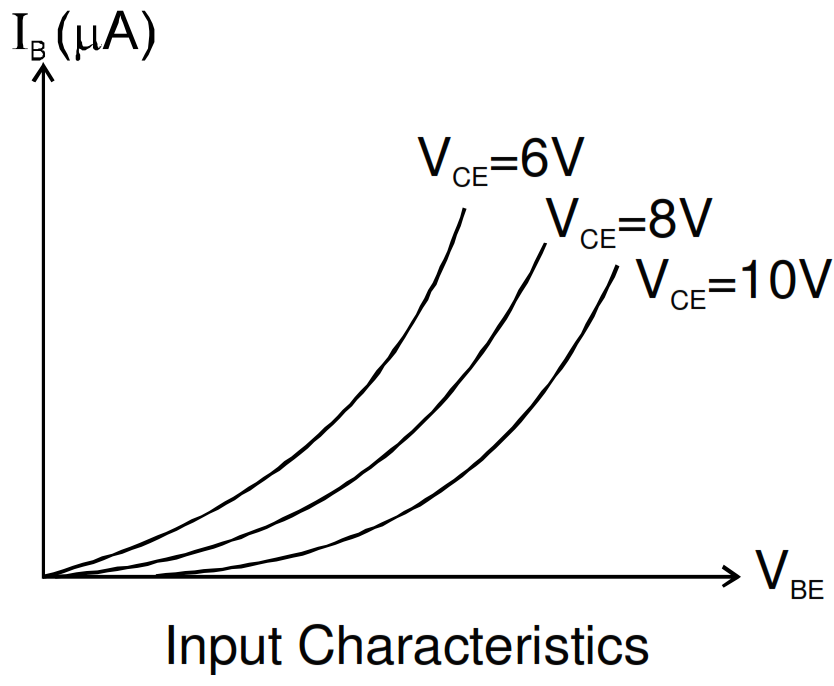

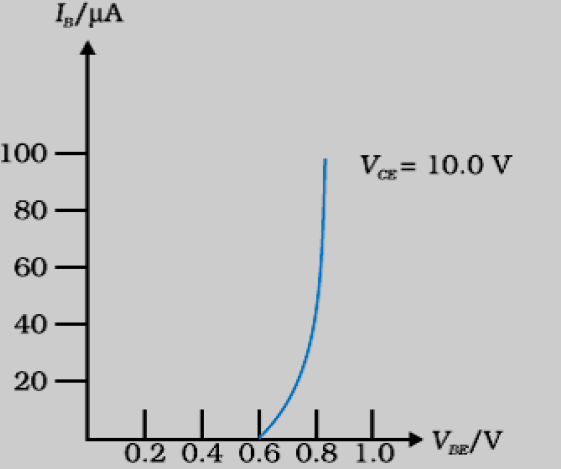

Input characteristics:

$(I_B)\text{ }vs (V_{BE})\text{graph keeping}V_{CE}=\text{constant}$

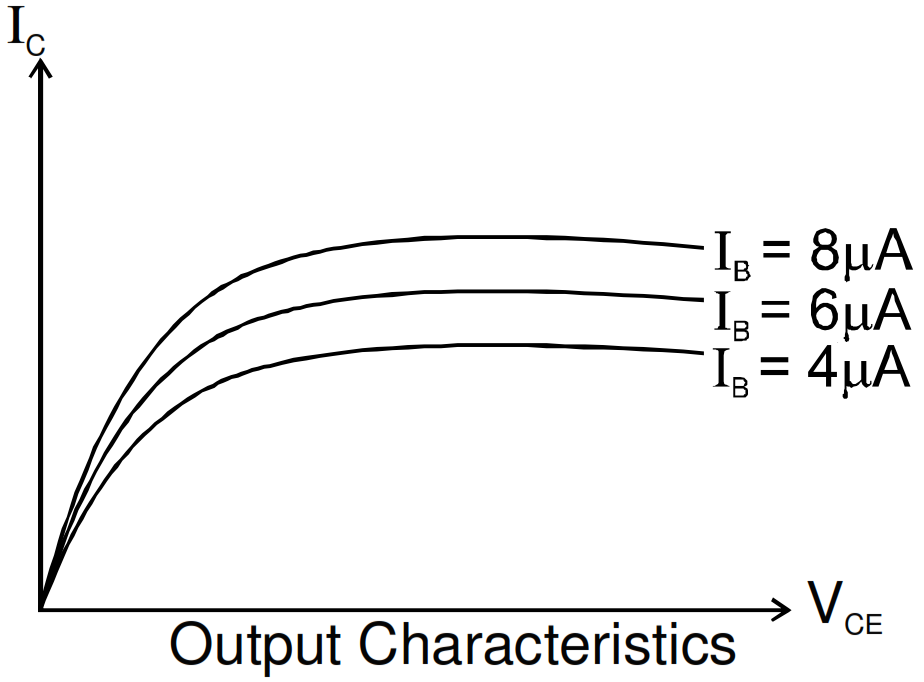

Output characteristics:

$(I_C)VS(V_{CE})\text{graph keeping}\text{ }I_{B}=\text{constant}$

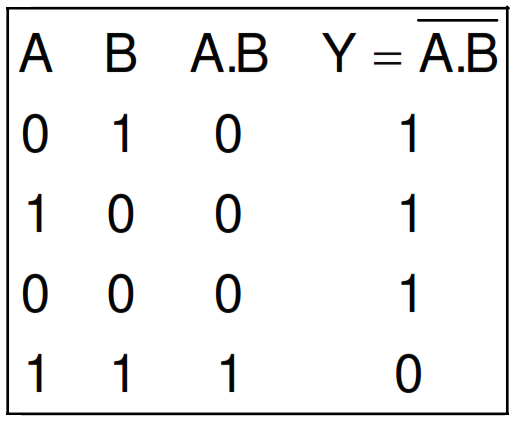

Truth Table:

InputOutput
ABY
000
011
101
111

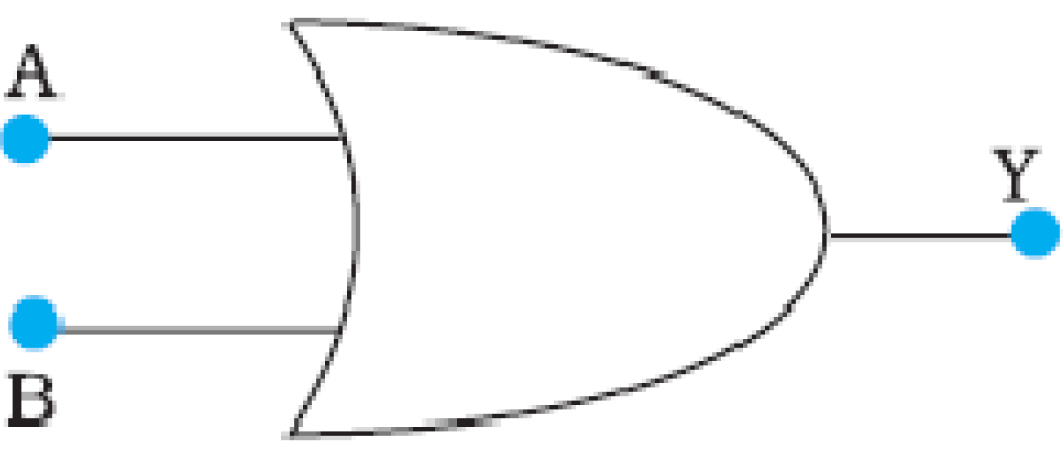

Logic symbol:

View full question & answer→
Question 143 Marks

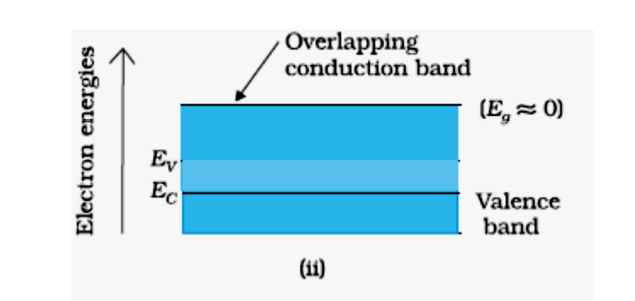

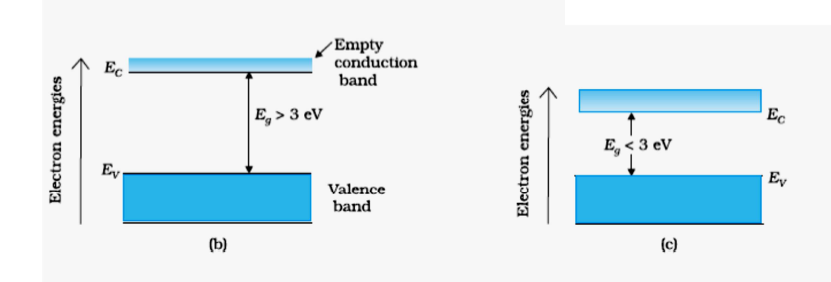

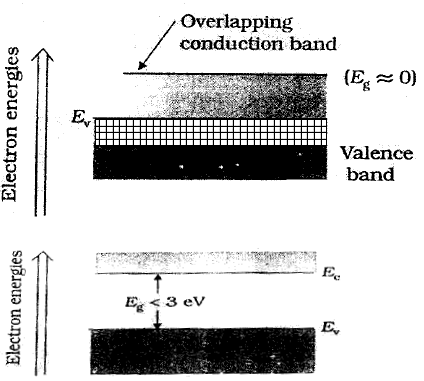

Write any two distinguishing features between conductors, semiconductors and insulators on the basis of energy band diagrams.
Answer


Two distinguishing features:
  1. In conductors, the valency band and conduction band tend to overlap (or nearly overlap) while in insulators they are seperated by a large energy gap and in semiconductors are separated by a small energy gap.
  2. The conduction band, of a conductor, has a large number of electrons available for electrical conduction. However the conduction band of insulators is almost empty while that of the semi- conductor has only a (very) small number of such electrons available lectrical conduction.
View full question & answer→
Question 153 Marks

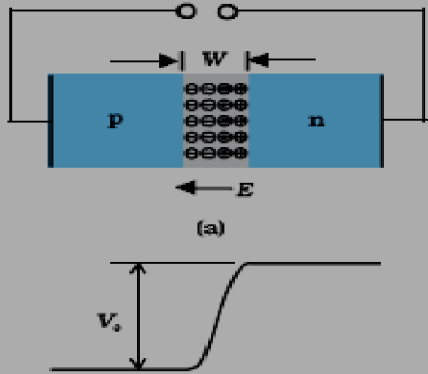

  1. Explain with the help of a diagram formation of depletion region and barrier potential in a pn junction.

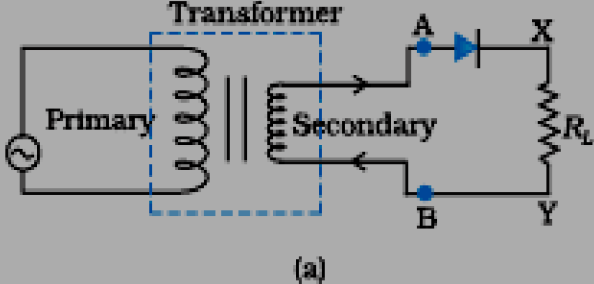

  2. Draw the circuit diagram of a half wave rectifier and explain its working.
Answer
  1.

Due to diffusion and drift, the electrons and holes move across the junctions, creating a final stage in which a region is created across the junction wall, which gets devoid of the mobile charge carriers. This region is called depletion region; The potential difference across the region is called Barriers potential.

  1.

Working- If an alternating voltage is applied across a diode in series with a load, a pulsating voltage will appear across the load only during that half cycle of the ac input during which the diode is forward biased. Therefore, in the positive half–cycle of ac input there is a current through the load resistor RL, and we get an output voltage whereas half–cycle.There is no output during the negative half cycle. Thus, the output voltage is restricted to only one direction and is said to be rectified.

View full question & answer→
Question 163 Marks
For a CE-transistor amplifier, the audio signal voltage across the collector resistance of 2 k$\Omega$ is 2 V. suppose the current amplification factor if the transistor is 100, find the input signal voltage and base current if the base resistance is 1 k$\Omega$.
Answer
  1. Input signal Voltage:

AC Collector Current- $i_{c} =\frac{\text{V}_{ce}}{\text{R}_{c}} = 1.0 \text{ mA}$

Base Current- $i_{b} =\frac{i_c}{\beta} = \frac{1.0 \text{ mA}}{100} = 0.01 \text{ mA}$

Base signal Voltage= ${i}_{b}\text{R} = 0.01\text{ mA} \times1\text{k}\Omega =10 \text{ mv}$.

View full question & answer→
Question 173 Marks

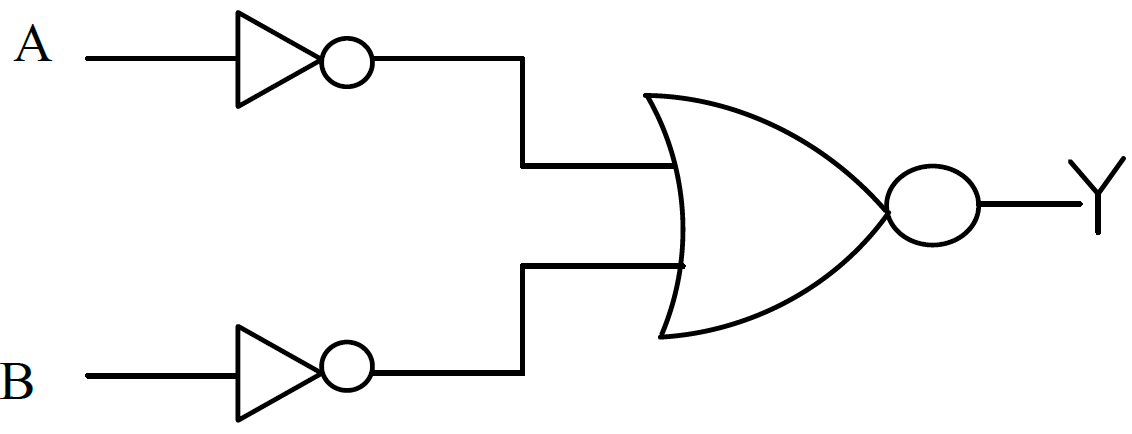

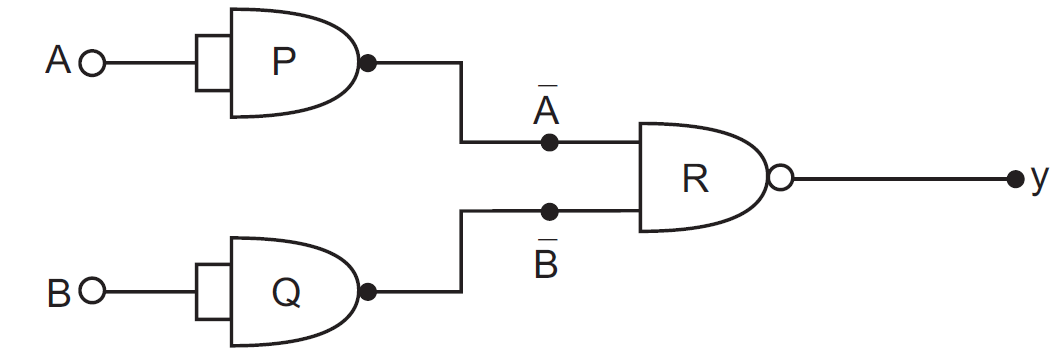

The outputs of two NOT gates are fed to a NOR gate. Draw the logic circuit of the combination of gates. Write its truth table. Identify the gate equivalent to this circuit.
Answer
To draw the logic circuit:

Truth Table:

A B Y
0 0 0
1 0 0
0 1 0
1 1 1
Identification: AND gate.

View full question & answer→
Question 183 Marks
With the help of a circuit diagram, explain the working of a junction diode as a full wave rectifier. Draw its input and output waveforms. Which characteristic property makes the junction diode suitable for rectification?
Answer
View full question & answer→
Question 193 Marks

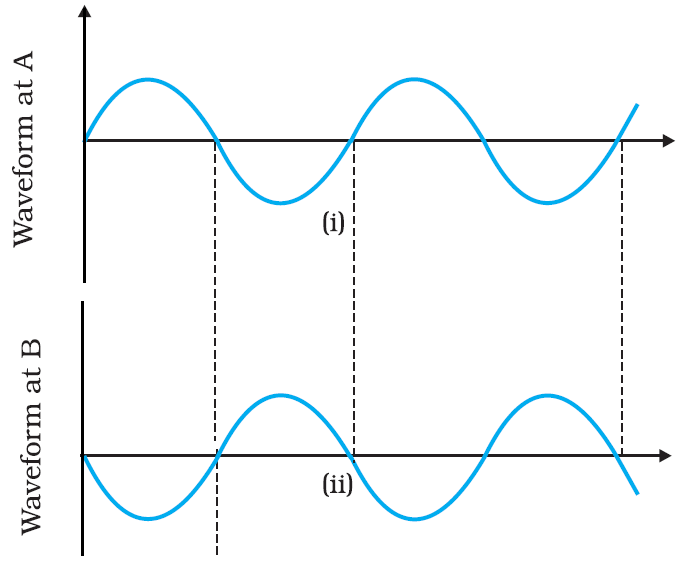

  1. In the following diagram, is the junction diode forward biased or reverse biased?

  1. Draw the circuit diagram of a full wave rectifier and state how it works.
Answer
  1. Reverse Biased

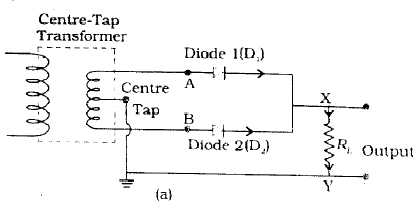

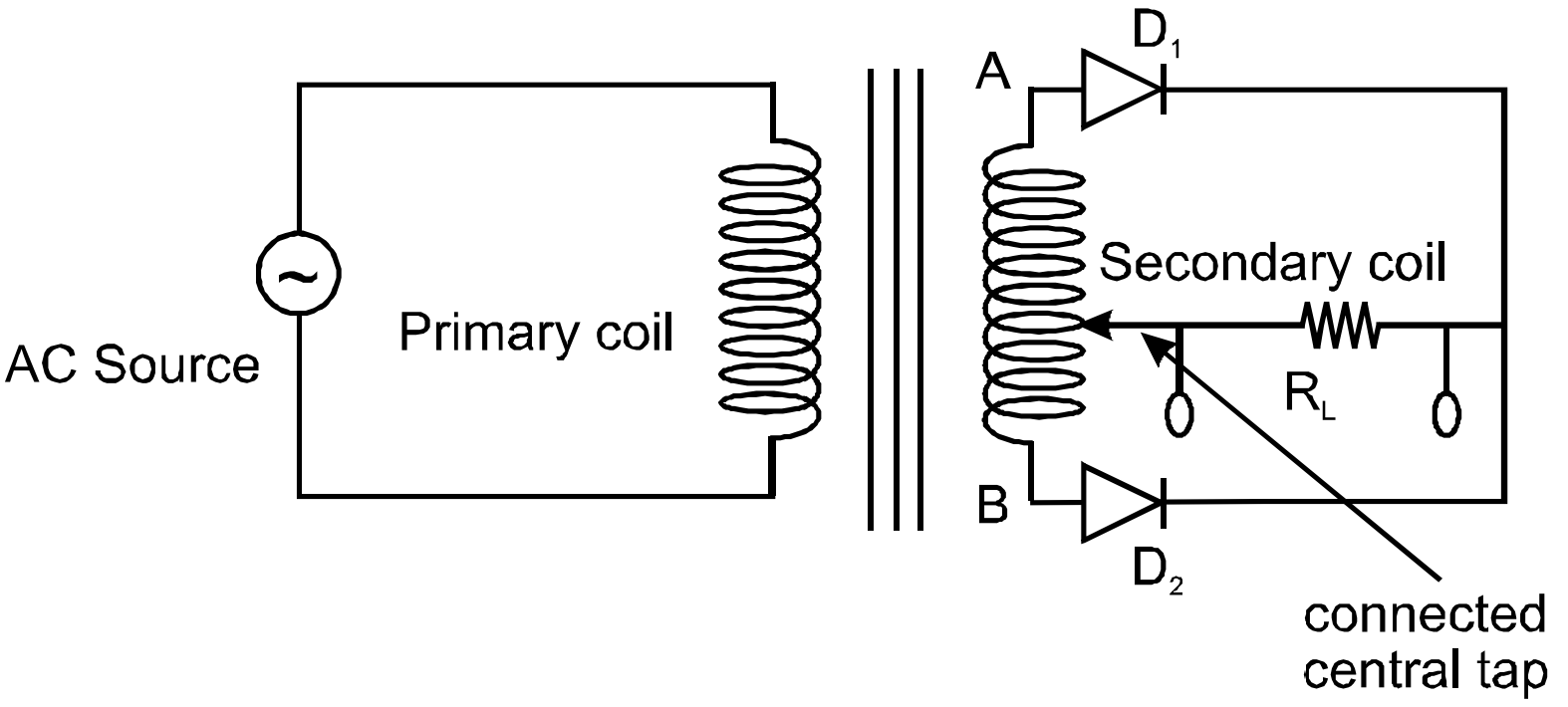

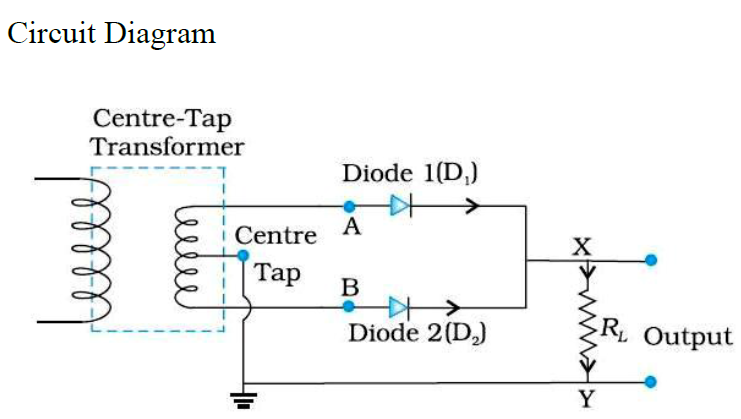

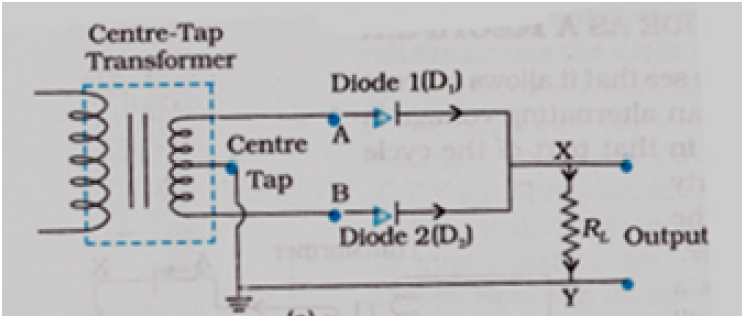

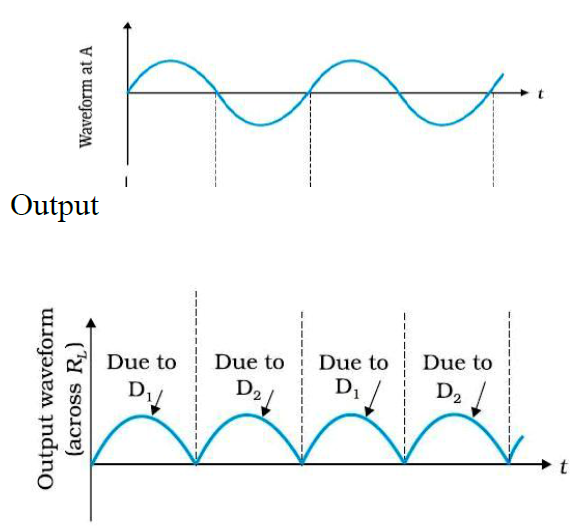

  2. Diagram of full wave rectifier

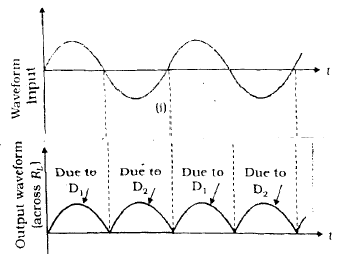

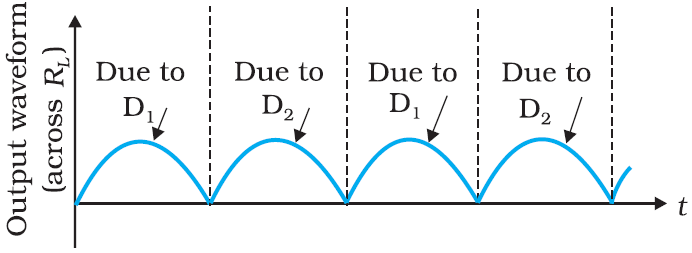

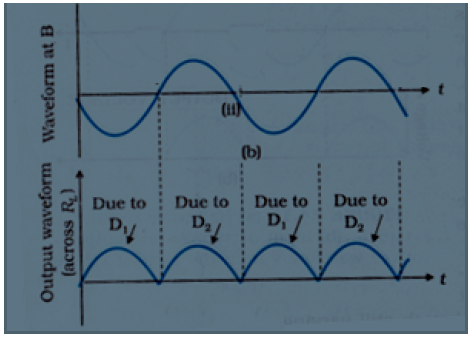

Working: The diode D1 is forward biased during one half cycle and current flows through the resistor, but diode D2 is reverse biased and no current flows through it. During the other half of the signal, D1 gets reverse biased and no current passes through it, D2 gets forward biased and current flows through it. In both half cycles current, through the resistor, flows in the same direction.

View full question & answer→
Question 203 Marks
  1. Write the functions of the three segments of a transistor.

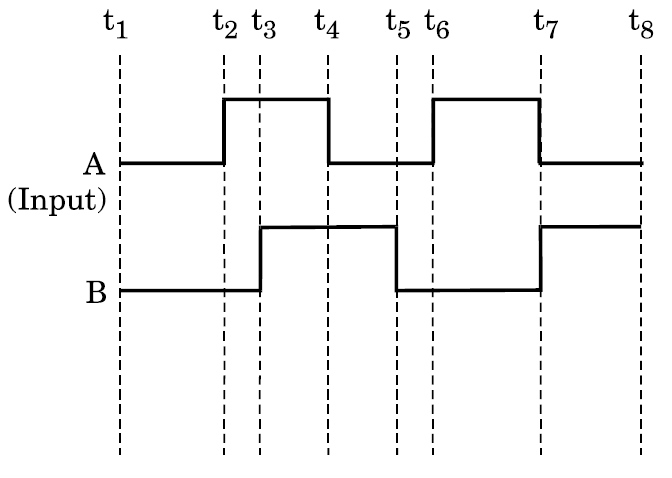

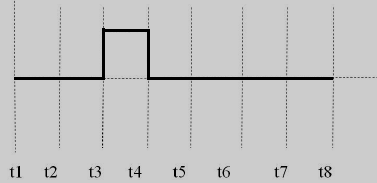

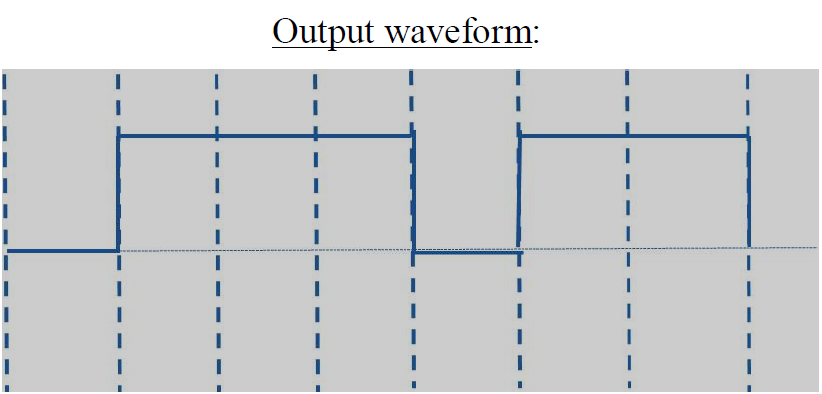

  2. The figure shows the input waveforms A and B for ‘AND’ gate. Draw the output waveform and write the truth table for this logic gate.

Answer
  1. Emitter: Supplies a large number of majority charge carriers.

Base: Controls the flow of majority carriers from the emitter to the collector.

Collector: It collects the majority carriers from the base/majority of those emitted by the emitter.

  1.

Truth Table
A B Y
0 0 0
0 1 0
1 0 0
1 1 1
View full question & answer→
Question 213 Marks

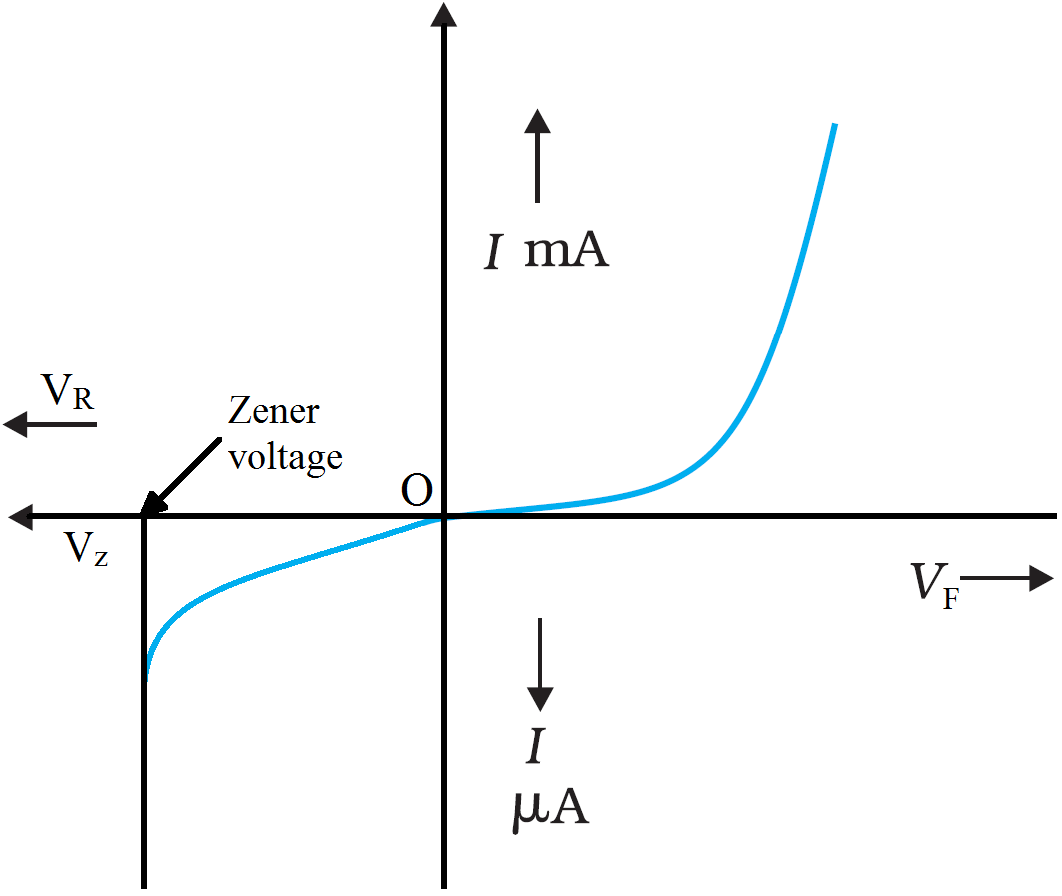

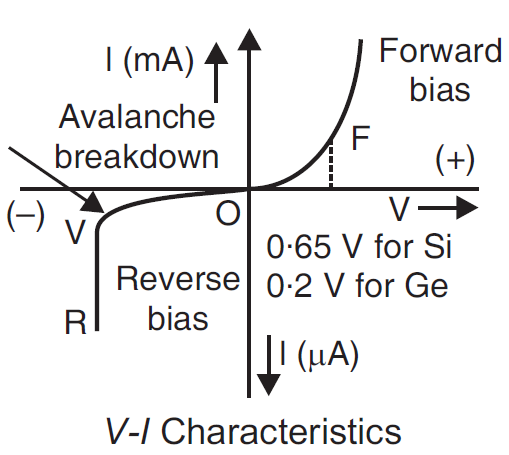

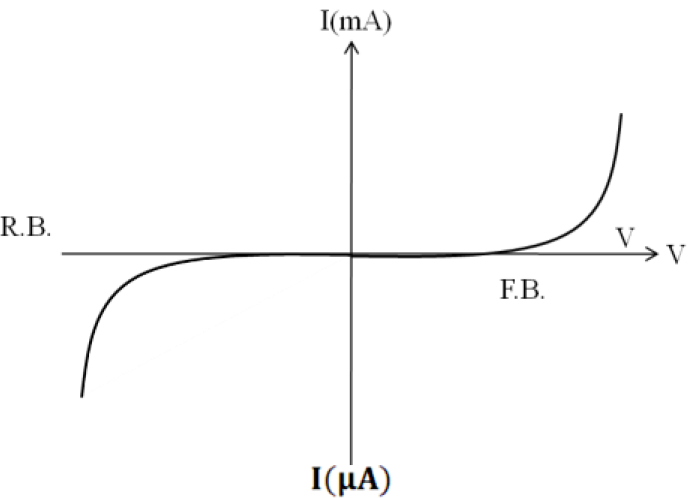

Draw V – I characteristics of a p–n junction diode. Answer the following questions, giving reasons:
  1. Why is the current under reverse bias almost independent of the applied potential up to a critical voltage?
  2. Why does the reverse current show a sudden increase at the critical voltage?
Name any semiconductor device which operates under the reverse bias in the breakdown region.
Answer

  1. In the reverse biasing, the current of order of $\mu$ A is due to movement/drifting of minority charge carriers from one region to another through the junction.

A small applied voltage is sufficient to sweep the minority charge carriers through the junction.

So reverse current is almost independent of critical voltage.

  1. At critical voltage (or breakdown voltage), a large number of covalent bonds break, resulting in the increase of large number of charge carriers. Hence current increases at critical voltage.

Semiconductor device that is used in reverse biasing is zener diode.

View full question & answer→
Question 233 Marks

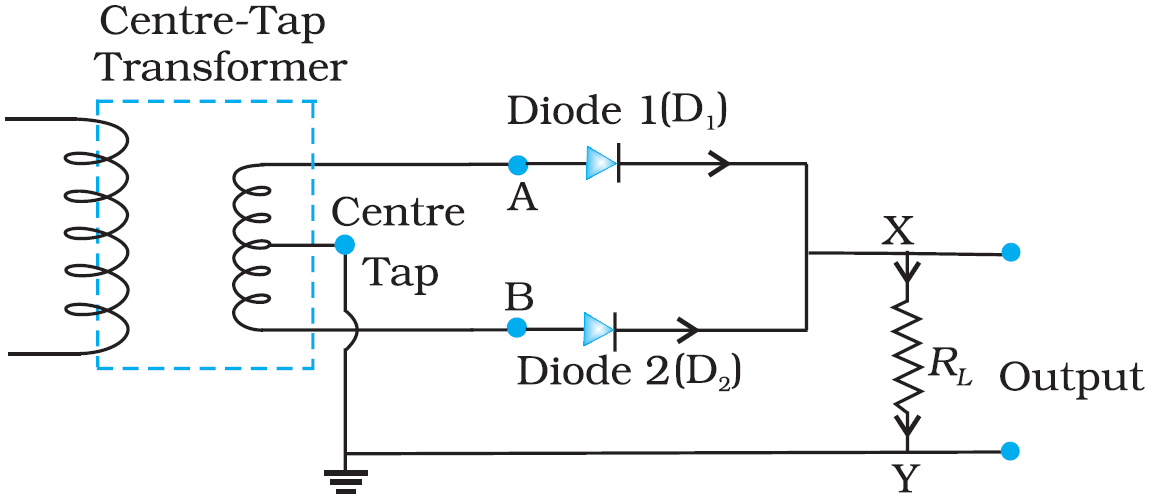

Draw a labelled diagram of a full wave rectifier circuit. State its working principle. Show the input-output waveforms.
Answer

Principle

pn junction conducts when it is in forward biased and does not do so when it is reverse biased.


View full question & answer→
Question 253 Marks

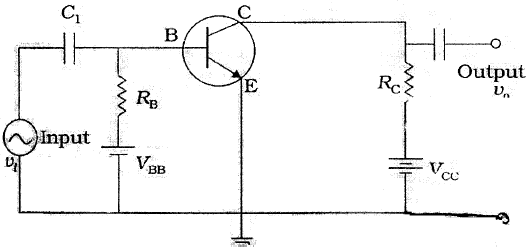

Give a circuit diagram of a common emitter amplifier using an n-p-n transistor. Draw the input and output waveforms of the signal. Write the expression for its voltage gain.
Answer
Circuit diagram:

Input and output waveforms:

The voltage gain of the amplifier is
$\text{A}_{v} = \frac{\text{v}_{0}}{\text{v}_{t}} = \frac{\Delta\text{V}_{CE}}{\text{r}\Delta\text{I}_{B}}$
$ = - \frac{\beta_{ac}\text{R}_{L}}{\text{r}}.$
View full question & answer→
Question 263 Marks
With the help of a suitable diagram, explain the formation of depletion region in a p-n junction. How does its width change when the junction is (i) forward biased, and (ii) reverse biased?
Answer

Formation: During the formation of p-n junction, and due to the concentration gradient across p, and n sides, holes diffuse from p-side to n-side (p → n) and electrons diffuse from n-side to p-side (n → p). This motion of charge carriers gives rise to diffusion current across the junction. When an electron diffuses from n → p, it leaves behind an immobile ionised donor (positive charge) on n-side. As the electrons continue to diffuse from n → p, a layer of positive charge (or positive space-charge region) on n-side of the junction is developed. Similarly, a layer of negative charge (or negative space-charge region) on the p-side of the junction is developed. This space-charge region, developed on either side of the junction is known as depletion region as the electrons and holes taking part in the initial movement across the junction deplete, this region of its free charges.
Width of depletion region layer decreases when the junction is forward biased and increases when it is reversed biased.
View full question & answer→
Question 273 Marks

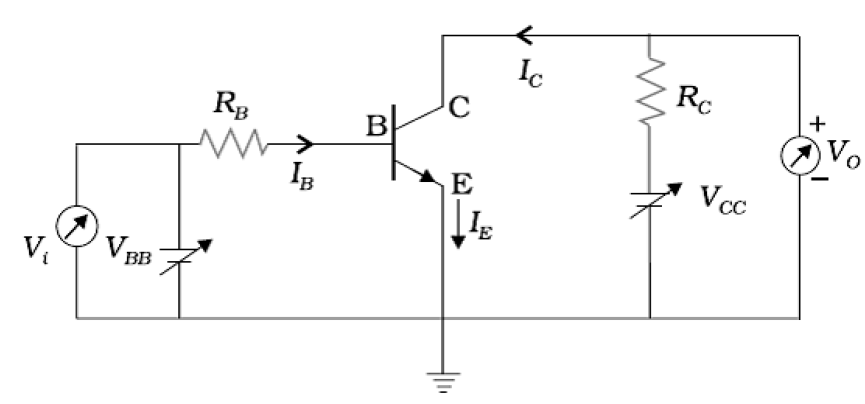

Draw the labelled circuit diagram of a common-emitter transistor amplifier. Explain clearly how the input and output signals are in opposite phase.
Answer
Circuit Diagram:

Explanation: The voltage gain of the amplifier is $\text{A}_{v} = -\beta_{\text{ac}}\text{R}_{L}/\text{r}$
The negative sign represents the output voltage which is opposite in phase with the input voltage, as input voltage increases output voltage decreases.
Graphically:

View full question & answer→
Question 283 Marks
State briefly the underlying principle of a transistor oscillator. Draw a circuit diagram showing how the feedback is accomplished by inductive coupling. Explain the oscillator action.
Answer
Principle: Positive feedback

Alternate Answer

Alternate Answer

Explanation: By the process of mutual induction (or inductive coupling), energy is fedback to the tank circuit, in phase. The output in an oscillator is selfsustained.

View full question & answer→
Question 293 Marks
The inputs A and B are inverted by using two NOT gates and their outputs are fed to the NOR gate as shown below.

Analyse the action of the gates (1) and (2) and identify the logic gate of the complete circuit so obtained. Give its symbol and the truth table.
Answer
Analysis: (1) and (2) are ‘NOT’ gates
Identification: Whole circuit is equivalent to AND gate
$(\overline{\overline{\text{A}} + \overline{\text{B}}}) = \text{A}.\text{B}$
Symbol:

Truth table:
Input Output
A B Y
0 0 0
0 1 0
1 0 0
1 1 1
View full question & answer→
Question 303 Marks
Explain the formation of energy band in solids. Draw energy band diagram for (i) a conductor, (ii) an intrinsic semiconductor.
Answer
Isolated atoms have discrete energy levels in a crystal, the presence of large number of closely packed atoms, leads to inter atomic interaction and the energy levels get spread out or broadened into energy bands.

Alternate Answer

View full question & answer→
Question 313 Marks
Draw the circuit diagram of a common emitter amplifier using n-p-n transistor. What is the phase differnece between the input signal and output voltage? State two reasons why a common emitter amplifier is preferred to a common base amplifier.
Answer
Circuit diagram of CE Amplifier

Phase relation between input and output signal is 180o OR $\pi$radian.  High current gain/cascading is easier/high power gain.

View full question & answer→
Question 323 Marks
Explain (i) forward biasing, (ii) reverse biasing of a P-N junction diode. With the help of a circuit diagram, explain the use of this device as a half-wave rectifier.
Answer

Forward bias: We apply a voltage v such that n-side is negative and p-side is positive. (Diode conducts current)

Reverse bias: We apply a voltage v such that n-side is positive and p-side is negative. (Diode is cut off)

Alternate Answer

other point relevant to forward bias/reverse bias should also be given full marks. (Explanation with /without circuit diagram)

Explanation: When the voltage at A is +ve, the diode is forward biased and it conducts. When A is negative, the diode is reverse biased and its does not conduct. Therefore, in the positive half cycle there is a current through the load resistor and we get an output voltage as shown in figure. But there is negligibly small current in the negative half  cycle and hence no output. Thus, the output voltage, though still varying, is restricted to one direction only.

View full question & answer→
Question 333 Marks
  1. Describe the working principle of a solar cell. Mention three basic processes involved in the generation of emf.
  2. Why are Si and GaAs preferred materials for solar cells?
Answer
  1. When solar cell is illuminated with light photons of energy $(hv)$ greater than the energy gap $\text{E}_{\text{g}}$ of the semiconductor, then electron hole pairs are generated due to absorption of photons.

The three basic processes involved in the generation of emf:

  1. Generation of e-h pairs due to light with close to the junction.
  2. Separation of electrons and holes due to electric field of the depletion region.
  3. The electrons reaching the n side are collected by the front contact and holes reaching p side are collected by back contact.
  1. Solar radiation has maximum intensity of photons of energy = 1.5eV.

Hence semiconducting materials Si and GaAs, with band gap $\approx$ 1.5 eV, are preferred materials for solar cells.

View full question & answer→
Question 343 Marks
Explain briefly with the help of necessary diagrams, the forward and the reverse biasing of a p-n junction diode. Also draw their characteristic curves in the two cases.
Answer

In forward bias, applied voltage does not support potential barrier. As a result, the depletion layer width decreases and barrier height is reduced. Due to the applied voltage, electrons from n side cross the depletion region and reach p side. Similarly holes from p side cross the junction and reach the n side. The motion of charged carriers, on either side, give rise to current. In reverse bias, applied voltage support potential barrier. As a result, barrier height is increased, depletion layer widens. This suppresses the flow of electrons from n → p and holes from p → n. Diffusion current decreases. The electric field direction of the junction is such that if electrons on p side or holes on n side in their random motion comes close to the junction, they will be swept to its majority zone. This drift of carriers give rise to the current called reverse current.

View full question & answer→
Question 353 Marks

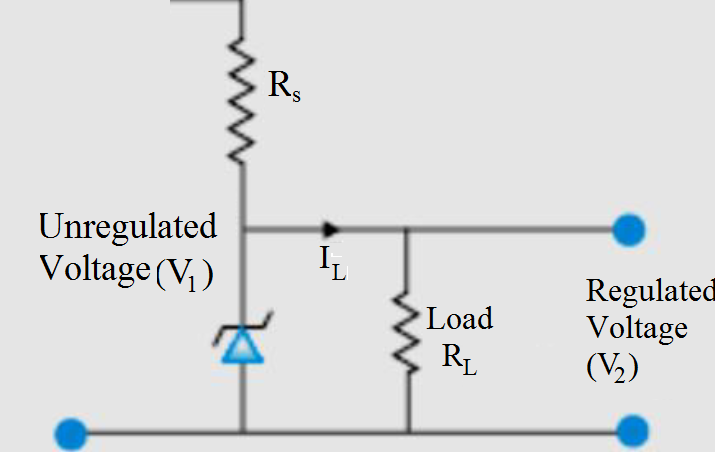

A zener diode is fabricated by heavily doping both p- and n- sides of the junction. Explain, why? Briefly explain the use of zener diode as a de voltage regulator with the help of a circuit diagram.
Answer
By heavily doping both p and n sides of the junction, depletion region formed is very thin, i.e. < 10-6 Hence, electric field, across the junction is very high $( \sim5\times10^{-6}{\text{V/m}})$ even for a small reverse bias voltage. This can lead to a 'breakdown' during reverse biasing.

If the input voltage increases/decreases, current through resister Rs and Zener diode, also increases/decreases. This increases/decreases the voltage drop across Rs  Without any change in voltage across the Zener diode.

This is because, in the breakdown region, Zener voltage remains constant even though the current through the Zener diode changes.

View full question & answer→
Question 363 Marks
  1. Write the functions of three segments of a transistor.
  2. Draw the circuit diagram for studying the input and output characteristics of n-p-n transistor in common emitter configuration. Using the circuit, explain how input, output characteristics are obtained.
Answer
  1. Emitter: Supplies the large number of majority charge carriers for the flow of current through the transistor.

Base: Controls the movement of charge carriers coming from emitter region.

Collector: Collects a major portion of the majority carriers supplied by the emitter.

Emitter: Heavily doped and of moderate size.

Base: Central region, thin and lightly doped.

Collector: Moderately doped and large sized.

  1.

Input characteristics are obtained by recording the values of base current IB, for different values of VBE at constant VCE.

Output characteristics are obtained by recording the values of IC for different values of VCE at constant IB.

Alternate Answer

Also, accept input/output characteristic curves.

View full question & answer→
Question 373 Marks
Draw a circuit diagram of a transistor amplifier in CE configuration.
Define the terms: (i) Input resistance and (ii) Current amplification factor. How are these determined using typical input and output characteristics?
Answer

Input resistance

$\text{R}_{i} = \bigg(\frac{\bigtriangleup\text{V}_{BE}}{\bigtriangleup\text{I}_{B}}\bigg)_{V_{CE}}$

Current amplification factor

$\beta_{ac} = \bigg(\frac{\bigtriangleup\text{I}_{c}}{\bigtriangleup\text{I}_{B}}\bigg)_{V_{CE}}$

The value of input resistance is determined from the slope of IB versus VBE plot at constant VBE.

The value of current amplification factor is obtained from the slope of collector IC versus VCE plot using different values of IB.

View full question & answer→
Question 383 Marks
With what considerations in view, a photodiode is fabricated? State its working with the help of a suitable diagram.
Eventhough the current in the forward bias is known to be more than in the reverse bias, yet the photodiode works in reverse bias. What is the reason?
Answer
View full question & answer→
Question 393 Marks
Output characteristics of an n-p-n transistor in CE configuration is shown in the figure. Determine:
  1. Dynamic output resistance.
  2. Dc current gain and.
  3. Ac current gain at an operating point VCE  = 10V, when IB =30$\mu$A.

Answer
  1. Dynamic output resistance is given by

$\text{r}_{o}=\bigg(\frac{\Delta\text{V}_{CE}}{\Delta\text{I}_{c}}\bigg)_{I_{B}}$

For IB = 30$\mu$A, $\Delta$V CE = (12 - 8) = 4V and $\Delta$IC = (3.6 – 3.4) = 0.2mA

$\therefore\text{r}_{o} = \frac{4\text{V}}{0.2\text{mA}} =\frac{4}{0.2\times10^{-3}} =2 \times10^{4}\text{ohm}$

  1. dc current gain

$\beta_{dc} = \frac{\text{I}_{c}}{\text{I}_{b}}$

At VCE = 10V and Ib = 30$\mu$A, the value of Ic = 3.5m A

$\beta_{dc} = \frac{3.5\text{mA}}{30\mu\text{A}} = \frac{3.5\times10^{-3}}{30\times10^{-6}}$

$\beta_{dc} = 117$

  1. ac current gain

$\beta_{dc} = \bigg(\frac{\Delta\text{I}_{C}}{\Delta\text{I}_{B}}\bigg)_{V_{CE}}$

At VCE =10V, $\Delta$IC = (3.5 - 2.5) mA = 1mA

and $\Delta$Ib= (30$\mu$A - 20$\mu$A) = 10$\mu$A

$\therefore\beta_{ac} = \frac{1\mu\text{A}}{10\mu\text{A}} = 100.$

View full question & answer→
Question 403 Marks
The figure below shows the $\text{V-I}$ characteristic of a semiconductor diode.



  1. Identify the semiconductor diode used.
  2. Draw the circuit diagram to obtain the given characteristic of this device.
  3. Briefly, explain how this diode can be used as a voltage regulator.
Answer
  1. Zener diode/P-N junction diode/Semiconductor diode/Silicon diode.
  2. Circuit diagram (Either forward bias or reverse bias)



Alternate Answer



  1.



If the input voltage increases, the current through Rs and Zener diode also increases. This increases voltage drop across Rs without any change of voltage across zenor diode.

Alternate Answer

The semiconductor diode/(p-n) junction diode can be used as a voltage regulator by increasing its doping level to make it as a Zener diode.

View full question & answer→
Question 413 Marks
Explain, with the help of a schematic diagram, the principle and working of a Light Emitting Diode. What criterion is kept in mind while choosing the semiconductor material for such a device? Write any two advantages of Light Emitting Diode over conventional incandescent lamps.
Answer


Principle:

When electrons fall from a higher to a lower energy level, containing holes, energy, in the form of light radiation, gets released.

Working:

Criterion:

The semiconductor material used in LED is chosen according to the required wavelength of emitted radiation.

Alternate Answer

Chosen to have a energy gap matching the energy of a photon of the radiation required to be emitted.

Advantages:

  1. Low operation voltage.
  2. Less power.
  3. No warm up time.
  4. Fast action.
  5. Light emitted is nearly monochromatic.
  6. Long life.
View full question & answer→
Question 423 Marks
What is an intrinsic semiconductor? How can this material be converted into (1) P-type (2) N-type extrinsic semiconductor? Explain with the help of energy band diagrams.
Answer
Intrinsic semiconductor: Pure semi-conductor having no impurities or negligible impurities.

Conversion into –

  1. P-type – by doping with small amount of trivalent impurities.
  2. N-type- by doping with small amount of pentavalent impurity.



View full question & answer→
Question 433 Marks
Draw a circuit diagram for use of NPN transistor as an amplifier in common emitter configuration. The input resistance of a transistor is $1000 \Omega$. On changing its base current by $10\mu\text{A}$ the collector current increases by 2mA. If a load resistance of $5\text{K}\Omega$. Is used in the circuit, calculate:
  1. The current gain.
  2. Voltage gain of the amplifier.
Answer
  1. Circuit Diagram

  1. Current Gain $\big(\beta\big) = \frac{\bigtriangleup\text{I}_{c}}{\bigtriangleup\text{I}_{b}}$

$=\frac{2\times10^{-3}}{10\times10^{-6}}=200$

  1. Voltage Gain $=\beta\times\frac{r_\circ}{r_1} $

$ =200\times\frac{5\times10^{3}}{1000} = 1000.$

View full question & answer→
Question 443 Marks
Draw the typical input and output characteristics of an n-p-n transistor in CE configuration. Show how these characteristics can be used to determine (a) the input resistance (ri), and (b) current amplification factor $(\beta).$
Answer


The input resistance ri of the transistor in CE configuration is defined as the ratio of the small change in base-emitter voltage to the corresponding small change in the base current, when the collector-emitter voltage is kept fixed. Thus,

$\text{r}_{\text{i}}=\Big[\frac{\Delta\text{V}_{\text{BE}}}{\Delta\text{I}_{\text{B}}}\Big]_{\text{V}_{\text{CE}}=\text{constant}}$

As input characteristic is non-linear, so ri varies. At any point of the curve, ri is equal to the slope of the tangent to the curve.

Current amplification factor $(\beta)$: It is defined as the ratio of the change in collector current to the small change in base current at constant collector-emitter voltage (VCE) when the transistor is in the active state.

$\beta_{\text{ac}}=\Big[\frac{\Delta\text{I}_{\text{C}}}{\Delta\text{I}_{\text{B}}}\Big]_{\text{V}_{\text{CE}}=\text{constant}}$

This is also known as small signal current gain and its value is very large.

View full question & answer→
Question 453 Marks
  1. A student wants to use two p-n junction diodes to convert alternating current into direct current. Draw the labelled circuit diagram she would use and explain how it works.
  2. Give the truth table and circuit symbol for NAND gate.
Answer
View full question & answer→
Question 463 Marks
Give reasons for each of the following:
  1. The intensity of light at some points on the screen in Young’s double slit experiment is zero.
  2. The intensity of light transmitted by a polaroid is less than the intensity of the unpolarised light incident on it.
  3. In the single slit diffraction experiment, some coloured fringes around the central white maximum are observed on the screen when one uses a source of white light.
Answer
  1. The points where the two waves meet out of phase or with the path difference of an integral multiple of $\frac{\lambda}{2},$ they cancel out the contribution of each other. Alternatively

Due to the destructive interference of two waves.

  1. When light is passed through a polaroid the vibrations of electric field vector which are perpendicular to the pass axis of the polaroid are absorbed and only those parallel to pass axis pass, therefore the intensity of transmitted light is less than that of the incident light.
  2. At any point away from the central bright fringe, path difference is different for different colours, therefore maxima for different colours are formed at different points and coloured fringes are seen.
View full question & answer→
Question 473 Marks
Draw the circuit diagram of a full wave rectifier using two p-n junction
diodes. Explain its working and show input and output voltage variations.
Answer
View full question & answer→
Question 483 Marks
  1. Describe briefly the functions of the three segments of n-p-n transistor.
  2. Draw the circuit arrangement for studying the output characteristics of n-p-n transistor in CE configuration. Explain how the output characteristics is obtained.
Answer
  1. Three segments of transistor:

  1. Emitter: Segment is on one side of the transistor. It is of moderate size and heavily doped. It supplies a huge number of majority carriers for the current flow through the transistor.

  2. Base: It is the central segment. It is very thin and lightly doped.

  3. Collector: It collects a major portion of the majority carrier supplied by the emitter. It is moderately doped and large in size compared to emitter.

  1. Circuit arrangement for studying the output characteristics of n-p-n  transistor in CE configuration.

Variation of collector current IC with the collector-Emitter voltage VCE is called output characteristics.

Output characteristics:

The output characteristics describe the relationship between output current (IC) and output voltage (VCE).

First, draw a vertical line and a horizontal line. The vertical line represents y-axis and horizontal line represents x-axis. The output current or collector current (IC) is taken along the y-axis (vertical line) and the output voltage (VCE) is taken along the x-axis (horizontal line).

To determine the output characteristics, the input current or base current IB is kept constant at 0 μA and the output voltage VCE is increased from zero volts to different voltage levels. For each level of the output voltage, the corresponding output current (IC) is recorded.

A curve is then drawn between output current IC and output voltage VCE at constant input current IB $(0 \mu\text{A}).$

View full question & answer→
Question 493 Marks
With the help of a simple diagram, explain the working of a silicon solar cell, giving all three basic processes involved. Draw its I-V characteristic.
Answer

When solar radiations are incident near the depletion layer of solar cell, covalent bonds break absolving the photons to create e- hole pairs and following three important process occur.

  1. Generation of e - h pair by breaking of covalent bonds absorbing radiations incident on depletion layer when hv > Eg.
  2. separation of e- and hole in n-side and holes in p-side to develop a photovoltage $\text{V}_\propto$ across the solar cell.
  3. Collection of electrons reaching the n-side by the front contact and holes reaching the pside by the back contact.

I-V characteristics.

Thus the p-side become positive and the n-side becomes negative giving rise to photo voltage.

View full question & answer→
Question 503 Marks
  1. Draw circuit diagram and explain the working of a zener diode as a dc voltage regulator with the help of its I-V characteristic.
  2. What is the purpose of heavy doping of p- and n-sides of a zener diode?
Answer
  1. Zener diode as a Voltage Regulator.

The Zener diode makes its use as a voltage regulator due to the following property:

When a Zener diode is operated in the breakdown region, the voltage across it remains practically constant for a large change in the current.

A simple circuit of a voltage regulator using a Zener diode is shown in the figure. The Zener diode is connected across load such that it is reverse biased.

The series resistance R absorbs the output voltage fluctuations so as to maintain constant voltage across the load.

If the input dc voltage increases, the current through R and Zener diode also increases. So, voltage drop across R increases, without any change in the voltage across zener diode.

I-V Characteristics,

  1. The Zener diode as fabricated by heavily doping both p and n sides of the junction so as to:
  1. Push the conduction band very near to Fermi level.
  2. Make depletion layer narrower.
  3. Making resistance lower and allow a large current to flow with little potential difference.
View full question & answer→
Generate Paper FreeAll Semiconductor Electronic: Material, Devices And Simple Circuits topics
3 Marks Question - Physics STD 12 Science Questions - Vidyadip
