The resistance of a wire is $5\,ohm$  at $50\,^o C$ and $6\,ohm $ at $100\,^o C$. The resistance of the wire at $0\,^o C$ will be .............. $\Omega$
AIEEE 2007, Medium
Download our app for free and get startedPlay store
We know that

$R_{t}=R_{0}(1+\alpha t)$

where $R_{t}$ is the resistance of the wire at $t\,^{o} \mathrm{C}$

$R_{0}$ is the resistance of the wire at $0\,^{o} \mathrm{C}$

and $\alpha$ is the temperature coefficient of resistance.

$\Rightarrow R_{50}=R_{0}(1+50 \alpha)$         ......$(i)$

$R_{100}=R_{0}(1+100 \alpha)$       .......$(ii)$

From $(i),$ $R_{50}-R_{0}=50 \alpha R_{0}$        .....$(iii)$

From $(ii),$ $R_{100}-R_{0}=100 \alpha R_{0}$        ....$(iv)$

Dividing $(iii)$ by $(iv),$ we get

$\frac{R_{50}-R_{0}}{R_{100}-R_{0}}=\frac{1}{2}$

Here, $R_{50}=5\, \Omega$ and $R_{100}=6\, \Omega$

$\therefore  $   $\frac{5-R_{0}}{6-R_{0}}=\frac{1}{2}$

or, $6-R_{0}=10-2 R_{0}$ or, $R_{0}=4\, \Omega$

art

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Similar Questions

  • 1

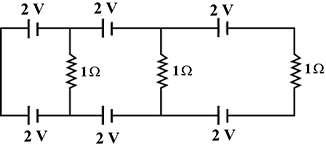

    In the below circuit the current in each resistance is
